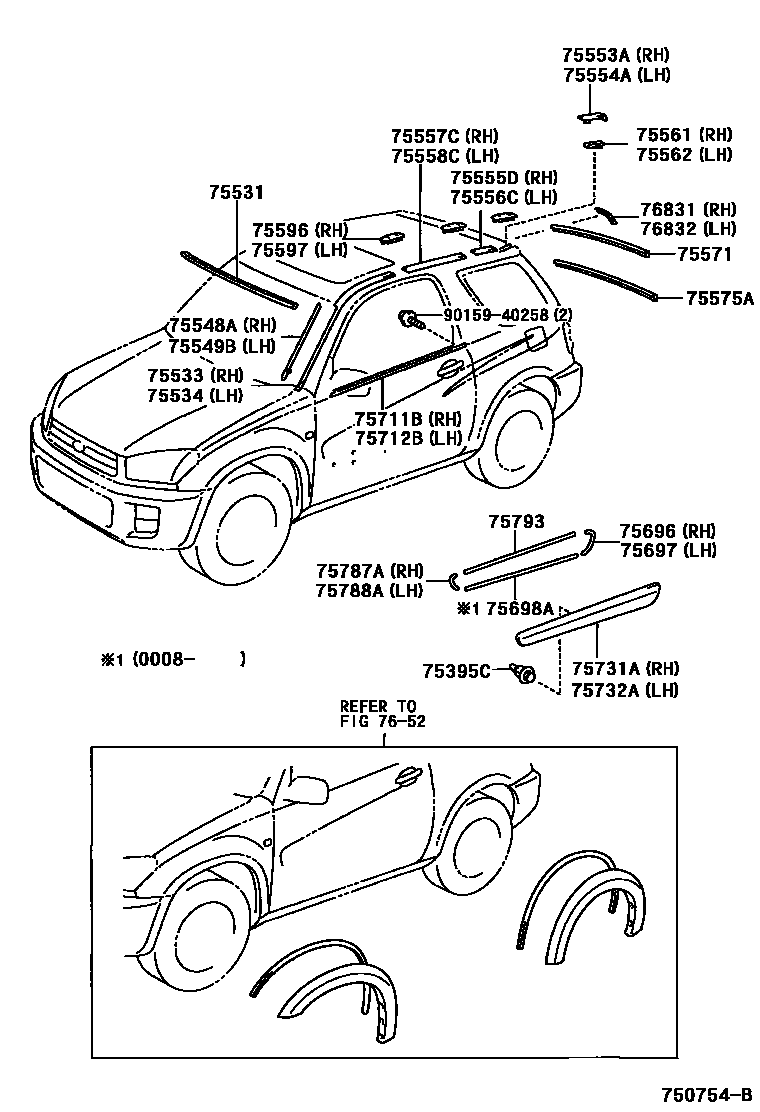

Toyota RAV4 — MOULDING

0001 1 0002 1

75395CCLIP, OUTSIDE MOULDING, NO.1

main90467-09213iACA20,CLA20,ZCA25200005-200511

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-42010iACA2#,CLA2#,ZCA2#200005-200307

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-42040iACA21,ZCA26200005-200008

sub75533-42041

main75533-42041iACA21,CLA21,ZCA26200008-200307

main75533-42050iACA20,ZCA25200005-200008

sub75533-42051

main75533-42051iACA20,22,CLA20,ZCA25200008-200307

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-42010iACA21,ZCA26200005-200008

sub75534-42011

main75534-42011iACA21,23,CLA21,ZCA26200008-200307

main75534-42020iACA20,ZCA25200005-200008

sub75534-42021

main75534-42021iACA20,CLA20,ZCA25200008-200307

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-42010iACA2#,ZCA2#200005-200008

sub75548-42011

main75548-42011iACA2#,CLA2#,ZCA2#200008-200307

75549BFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2

main75549-42010iACA2#,ZCA2#200005-200008

sub75549-42011

main75549-42011iACA2#,CLA2#,ZCA2#200008-200307

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-42010iACA2#,CLA2#,ZCA2#200005-200307

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-42010iACA2#,CLA2#,ZCA2#200005-200307

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-42020iACA20,CLA20,ZCA25200005-200307

main75555-42030iACA21,23,CLA21,ZCA26200005-200307

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75555-42020iACA20,22,CLA20,ZCA25200005-200307

main75555-42030iACA21,23,CLA21,ZCA26200005-200307

75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH

main75557-42020iACA2#,CLA2#,ZCA2#200005-200307

75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH

main75557-42020iACA2#,CLA2#,ZCA2#200005-200307

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-42030iACA2#,CLA2#,ZCA2#200005-200307

sub75561-60010

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75561-42030iACA2#,CLA2#,ZCA2#200005-200307

sub75561-60010

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-42010iACA2#,CLA2#,ZCA2#200005-200307

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-42010iACA2#,CLA2#,ZCA2#200005-200307

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-42010iACA2#,CLA2#,ZCA2#200005-200307

W(ROOF RAIL)

sub75596-35030

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-42010iACA2#,CLA2#,ZCA2#200005-200307

W(ROOF RAIL)

sub75596-35030

75696PAD, BODY OUTSIDE MOULDING, NO.1

main75696-42050iACA20,CLA20,ZCA25200005-200307

75697PAD, BODY OUTSIDE MOULDING, NO.2

main75697-42050iACA20,CLA20,ZCA25200005-200307

75698APAD, BODY OUTSIDE MOULDING, NO.3

main75698-42030iACA20,22,CLA20,ZCA25200008-200307

main75793-42040iACA21,23,CLA21,ZCA26200008-200307

75711BMOULDING, FRONT DOOR BELT, RH

main75711-42030iACA21,CLA21,ZCA26200005-200307

main75711-42040iACA20,CLA20,ZCA25200005-200307

75712BMOULDING, FRONT DOOR BELT, LH

main75712-42030iACA21,CLA21,ZCA26200005-200307

main75712-42040iACA20,22,CLA20,ZCA25200005-200307

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-42080iACA20,22,CLA20,ZCA25200005-200511

UNPAINTED

main75731-42090-A0iACA20,CLA20,ZCA25200307-200511

WHITE PEARL CS.,064

main75731-42090-B0iACA20,22,CLA20,ZCA25200307-200511

*104,SILVER ME.,040 ,1D4 ,4R4

main75731-42090-B0iACA20,CLA20,ZCA25200005-200307

*104,SILVER ME.,056 ,1D4

main75731-42090-B1iACA20,CLA20,ZCA25200005-200307

*104,GRAY MM,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1

main75731-42090-B1iACA20,22,CLA20,ZCA25200307-200511

*104,GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6

main75731-42090-B2iACA20,CLA20,ZCA25..EUR200408-200511

DK.GRAY MC.,1E0

main75731-42090-C0iACA20,CLA20,ZCA25200005-200511

*104,BLACK,202

main75731-42090-D0iACA20,22,CLA20,ZCA25200307-200511

*104,DK. RED M.M.,3Q3

main75731-42090-E0iACA20,22,CLA20,ZCA25200307-200511

*104,BEIGE ME.,4R4

main75731-42090-F0iACA20,CLA20,ZCA25200005-200307

*104,CHAMPAGNE ME.,586

main75731-42090-G0iACA20,CLA20,ZCA25200005-200307

*104,DK.GREEN M.M.,6S3

main75731-42090-G1iACA20,22,CLA20,ZCA25200307-200511

*104,DARK GREEN MC.,6R4

main75731-42090-G2iACA20,22,CLA20,ZCA25200307-200511

*104,LT. GREEN ME.,6T6

main75731-42090-J0iACA22200307-200511

BLUE MC.,8M6

main75731-42090-J0iACA20,CLA20,ZCA25200005-200511

*104,BLUE MC.,8M6

main75731-42100iACA21,23,CLA21,ZCA26200005-200511

UNPAINTED

main75731-42110-A0iACA21,CLA21,ZCA26200307-200511

WHITE PEARL CS.,064

main75731-42110-A1iACA21,CLA21,ZCA26200208-200307

*104,WHITE,056

main75731-42110-B0iACA21,23,CLA21,ZCA26200307-200511

*104,SILVER ME.,040 ,1D4 ,4R4

main75731-42110-B0iACA21,CLA21,ZCA26200005-200307

*104,SILVER ME.,056 ,1D4

main75731-42110-B1iACA21,ZCA26200005-200307

*104,GRAY MM,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1

main75731-42110-B1iACA21,CLA21,ZCA26200008-200208

*104,GRAY MM,056 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1

main75731-42110-B1iACA21,23,CLA21,ZCA26200307-200511

*104,GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6

main75731-42110-B2iACA21,CLA21,ZCA26..EUR200307-200511

DK.GRAY MC.,1E0

main75731-42110-C0iACA21,CLA21,ZCA26200005-200511

*104,BLACK,202

main75731-42110-D0iACA21,23,CLA21,ZCA26200307-200511

*104,DK. RED M.M.,3Q3

main75731-42110-E0iACA21,23,CLA21,ZCA26200307-200511

*104,BEIGE ME.,4R4

main75731-42110-F0iACA21,CLA21,ZCA26200005-200307

*104,CHAMPAGNE ME.,586

main75731-42110-G0iACA21,CLA21,ZCA26200005-200307

*104,DK.GREEN M.M.,6S3

main75731-42110-G1iACA21,23,CLA21,ZCA26200307-200511

*104,DARK GREEN MC.,6R4

main75731-42110-G2iACA21,23,CLA21,ZCA26200307-200511

*104,LT.GREEN ME.,6T6

main75731-42110-J0iACA21,CLA21,ZCA26200005-200511

*104,BLUE MC.,8M6

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-42080iACA20,22,CLA20,ZCA25200005-200511

UNPAINTED

main75732-42090-A0iACA20,CLA20,ZCA25200307-200511

WHITE PEARL CS.,064

main75732-42090-B0iACA20,CLA20,ZCA25200005-200307

*104,SILVER ME.,056 ,1D4

main75732-42090-B0iACA20,22,CLA20,ZCA25200307-200511

*104,SILVER ME.,040 ,1D4 ,4R4

main75732-42090-B1iACA20,22,CLA20,ZCA25200307-200511

*104,GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6

main75732-42090-B1iACA20,CLA20,ZCA25200005-200307

*104,GRAY MM,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1

main75732-42090-B2iACA20,CLA20,ZCA25..EUR200408-200511

DK.GRAY MC.,1E0

main75732-42090-C0iACA20,22,CLA20,ZCA25200005-200511

*104,BLACK,202

main75732-42090-D0iACA20,22,CLA20,ZCA25200307-200511

*104,DK. RED M.M.,3Q3

main75732-42090-E0iACA20,22,CLA20,ZCA25200307-200511

*104,BEIGE ME.,4R4

main75732-42090-F0iACA20,CLA20,ZCA25200005-200307

*104,CHAMPAGNE ME.,586

main75732-42090-G0iACA20,CLA20,ZCA25200005-200307

*104,DK.GREEN M.M.,6S3

main75732-42090-G1iACA20,22,CLA20,ZCA25200307-200511

*104,DARK GREEN MC.,6R4

main75732-42090-G2iACA20,22,CLA20,ZCA25200307-200511

*104,LT. GREEN ME.,6T6

main75732-42090-J0iACA20,22,CLA20,ZCA25200005-200511

*104,BLUE MC.,8M6

main75732-42100iACA21,CLA21,ZCA26200005-200511

UNPAINTED

main75732-42110-A0iACA21,CLA21,ZCA26200307-200511

*104,WHITE PEARL CS.,064

main75732-42110-A1iACA21,CLA21,ZCA26200208-200307

*104,WHITE,056

main75732-42110-B0iACA21,CLA21,ZCA26200005-200307

*104,SILVER ME.,056 ,1D4

main75732-42110-B0iACA21,23,CLA21,ZCA26200307-200511

*104,SILVER ME.,040 ,1D4 ,4R4

main75732-42110-B1iACA21,ZCA26200005-200307

*104,GRAY MM,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1

main75732-42110-B1iACA21,CLA21,ZCA26200008-200208

*104,GRAY MM,056 ,202 ,3P1 ,586 ,6S3 ,8M6 ,8P1

main75732-42110-B1iACA21,23,CLA21,ZCA26200307-200511

*104,GRAY MM,1E0 ,202 ,3Q3 ,6R4 ,6T6 ,8M6

main75732-42110-B2iACA21,CLA21,ZCA26..EUR200307-200511

DK.GRAY MC.,1E0

main75732-42110-C0iACA21,CLA21,ZCA26200005-200511

*104,BLACK,202

main75732-42110-D0iACA21,23,CLA21,ZCA26200307-200511

*104,DK. RED M.M.,3Q3

main75732-42110-E0iACA21,23,CLA21,ZCA26200307-200511

*104,BEIGE ME.,4R4

main75732-42110-F0iACA21,CLA21,ZCA26200005-200307

*104,CHAMPAGNE ME.,586

main75732-42110-G0iACA21,CLA21,ZCA26200005-200307

*104,DK.GREEN M.M.,6S3

main75732-42110-G1iACA21,23,CLA21,ZCA26200307-200511

*104,DARK GREEN MC.,6R4

main75732-42110-G2iACA21,23,CLA21,ZCA26200307-200511

*104,LT.GREEN ME.,6T6

main75732-42110-J0iACA21,CLA21,ZCA26200005-200511

*104,BLUE MC.,8M6

75787APAD, FRONT DOOR OUTSIDE MOULDING, RH

main75787-42010iACA20,CLA20,ZCA25200005-200307

main75787-42020iACA21,23,CLA21,ZCA26200005-200307

75788APAD, FRONT DOOR OUTSIDE MOULDING, LH

main75788-42010iACA20,22,CLA20,ZCA25200005-200307

main75788-42020iACA21,23,CLA21,ZCA26200005-200307

75793PAD, FRONT DOOR OUTSIDE MOULDING, UPPER

main75793-42030iACA20,CLA20,ZCA25200005-200307

main75793-42040iACA21,CLA21,ZCA26200008-200307

7652

76831COVER, BACK DOOR FINISH PANEL

main76831-42010iACA2#,CLA2#,ZCA2#200005-200307

76832COVER, BACK DOOR FINISH PANEL, LH

main76832-42010iACA2#,CLA2#,ZCA2#200005-200307

9015940258

main90159-40258

32 parts on this diagram · 2 diagrams in section
