Toyota RAV4 — METER

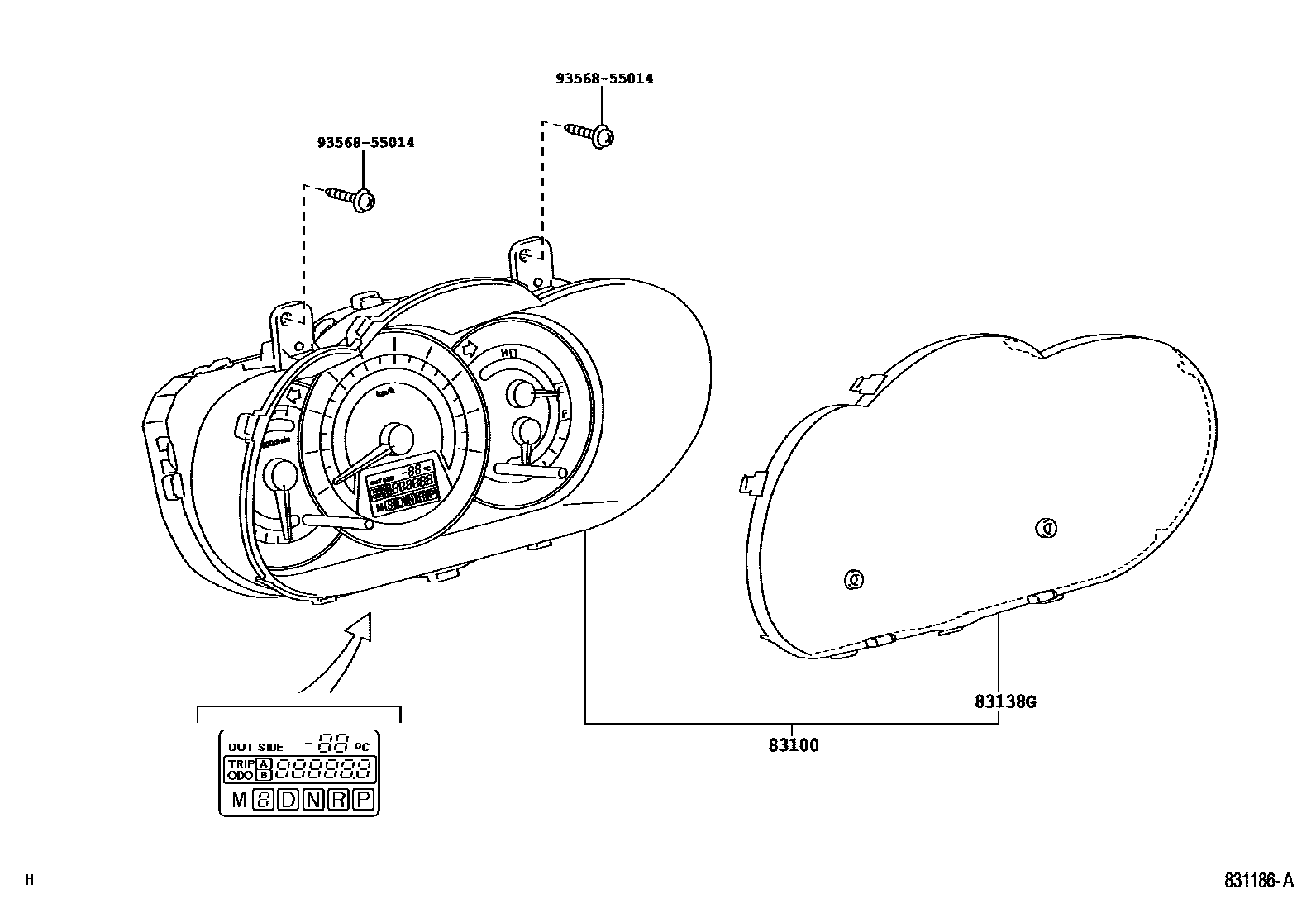

83100METER ASSY, COMBINATION

main83800-42D00i200511-200603

main83800-42D01i200604-200605

main83800-42D02i200605-200608

main83800-42D03i200609-200812

main83800-42D20i200511-200603

main83800-42D21i200604-200605

main83800-42D22i200605-200608

main83800-42D23i200609-200812

main83800-42D30i200511-200808

main83800-42D40i200511-200808

main83800-42D50i200511-200808

main83800-42D60i200511-200808

main83800-42E90i200708-200808

main83800-42F30i200812-200909

main83800-42F31i200909-201212

main83800-42F50i200812-200909

main83800-42F51i200909-201212

main83800-42F70i200812-200909

main83800-42F71i200909-201212

main83800-42G10i200903-200909

main83800-42G11i200909-201212

main83800-42G90i200808-200908

main83800-42G91i200908-201212

main83800-42J00i200808-200908

main83800-42J01i200908-201212

main83800-42J10i200808-200908

main83800-42J11i200908-201212

main83800-42J20i200808-200908

main83800-42J21i200908-201212

main83800-42J30i200808-200908

main83800-42J31i200908-201212

main83800-42C70i200511-200603

ENGLAND SPEC

main83800-42C71i200604-200605

ENGLAND SPEC

main83800-42C72i200605-200608

ENGLAND SPEC

main83800-42C73i200609-200812

ENGLAND SPEC

main83800-42C80i200511-200603

ENGLAND SPEC&235/55R18H ALMINUM 7.5J

main83800-42C81i200604-200605

ENGLAND SPEC&235/55R18H ALMINUM 7.5J

main83800-42C82i200605-200608

ENGLAND SPEC&235/55R18H ALMINUM 7.5J

main83800-42C83i200609-200812

ENGLAND SPEC&235/55R18H ALMINUM 7.5J

main83800-42C90i200511-200603

ENGLAND SPEC

main83800-42C91i200604-200605

ENGLAND SPEC

main83800-42C92i200605-200608

ENGLAND SPEC

main83800-42C93i200609-200812

ENGLAND SPEC

main83800-42D10i200511-200603

235/55R18H ALMINUM 7.5J

main83800-42D11i200604-200605

235/55R18H ALMINUM 7.5J

main83800-42D12i200605-200608

235/55R18H ALMINUM 7.5J

main83800-42D13i200609-200812

235/55R18H ALMINUM 7.5J

main83800-42D80supersedes 83800-42J41i200511-200808

SPEEDOMETER-MILE(MAIN),KM/H(SUB)

main83800-42E00supersedes 83800-42J61i200511-200808

SPEEDOMETER-MILE(MAIN),KM/H(SUB)

main83800-42E20i200602-200604

OWNER'S MANUAL-FRENCH&235/55R18H ALMINUM 7.5J

main83800-42E30i200602-200604

OWNER'S MANUAL-FRENCH+GERMAN(SEPARATED)

main83800-42E40i200602-200604

OWNER'S MANUAL-FRENCH+GERMAN(SEPARATED)

main83800-42F40i200812-200909

ENGLAND SPEC

main83800-42F41i200909-201212

ENGLAND SPEC

main83800-42F60i200812-200909

ENGLAND SPEC

main83800-42F61i200909-201212

ENGLAND SPEC

main83800-42F80i200812-200909

ENGLAND SPEC

main83800-42F81i200909-201112

ENGLAND SPEC

main83800-42F90i200812-200909

TIRE & DISK WHEEL-235/55R18H-R/F ALM 7.5J GRAY

main83800-42F91i200909-201002

TIRE & DISK WHEEL-235/55R18H-R/F ALM 7.5J GRAY

main83800-42G00i200812-200909

ENGLAND SPEC&TIRE & DISK WHEEL-235/55R18H-R/F ALM 7.5J GRAY

main83800-42G01i200909-201002

ENGLAND SPEC&TIRE & DISK WHEEL-235/55R18H-R/F ALM 7.5J GRAY

main83800-42G20i200903-200909

ENGLAND SPEC

main83800-42G21i200909-201212

ENGLAND SPEC

main83800-42J50supersedes 83800-42J41i200808-200908

SPEEDOMETER-MILE(MAIN),KM/H(SUB)

main83800-42J51supersedes 83800-42J41i200908-201212

SPEEDOMETER-MILE(MAIN),KM/H(SUB)

main83800-42J70supersedes 83800-42J61i200808-200908

SPEEDOMETER-MILE(MAIN),KM/H(SUB)

main83800-42J71supersedes 83800-42J61i200908-201212

SPEEDOMETER-MILE(MAIN),KM/H(SUB)

83138GGLASS, COMBINATION METER

main83852-42C20i200511-200808

main83852-42C70i200511-200812

main83852-42F30i200812-201212

9356855014

main93568-55014

3 parts on this diagram · 2 diagrams in section
