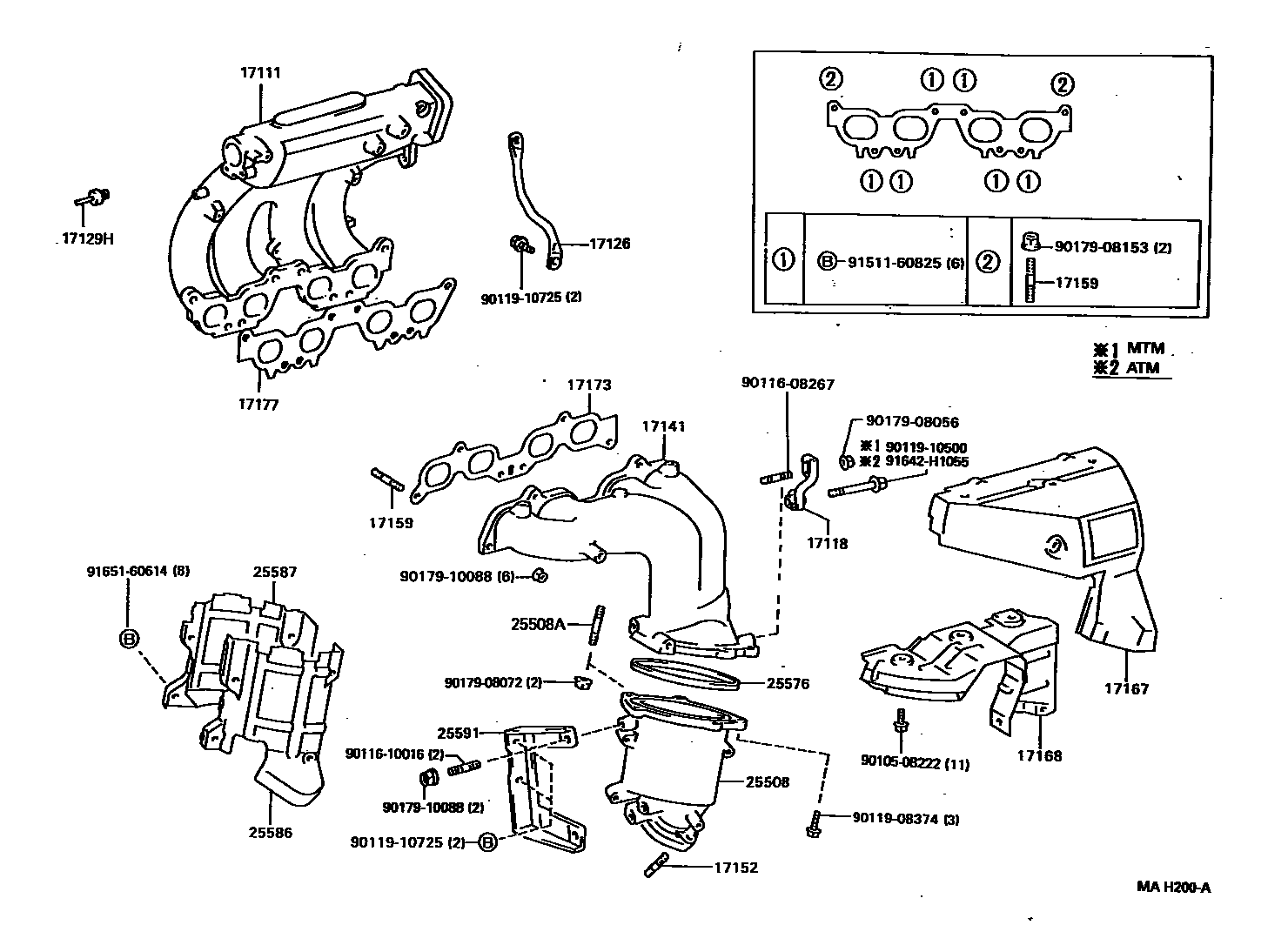

Toyota RAV4 — MANIFOLD
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17126STAY, SURGE TANK, NO.2
17129HUNION, NO.4
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25576GASKET, MANIFOLD CONVERTER
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25587INSULATOR, MANIFOLD CONVERTER, NO.2
25591BRACKET, MANIFOLD SUPPORT
9010508222
main90105-08222
9011608267
main90116-08267
9011610016
main90116-10016
9011908374
main90119-08374
9011910500
main90119-10500
9011910725
main90119-10725
9017908056
main90179-08056
9017908072
main90179-08072
9017908153
main90179-08153
9017910088
main90179-10088
9151160825
main91511-60825
91642H1055
main91642-H1055
9165160614
main91651-60614
30 parts on this diagram · 3 diagrams in section
MANIFOLD for Toyota RAV4
This section contains 31 genuine Toyota parts for the MANIFOLD system of the Toyota RAV4. Key components include: MANIFOLD, INTAKE, STAY, MANIFOLD, STAY, SURGE TANK, NO.2, UNION, NO.4, MANIFOLD, EXHAUST.
