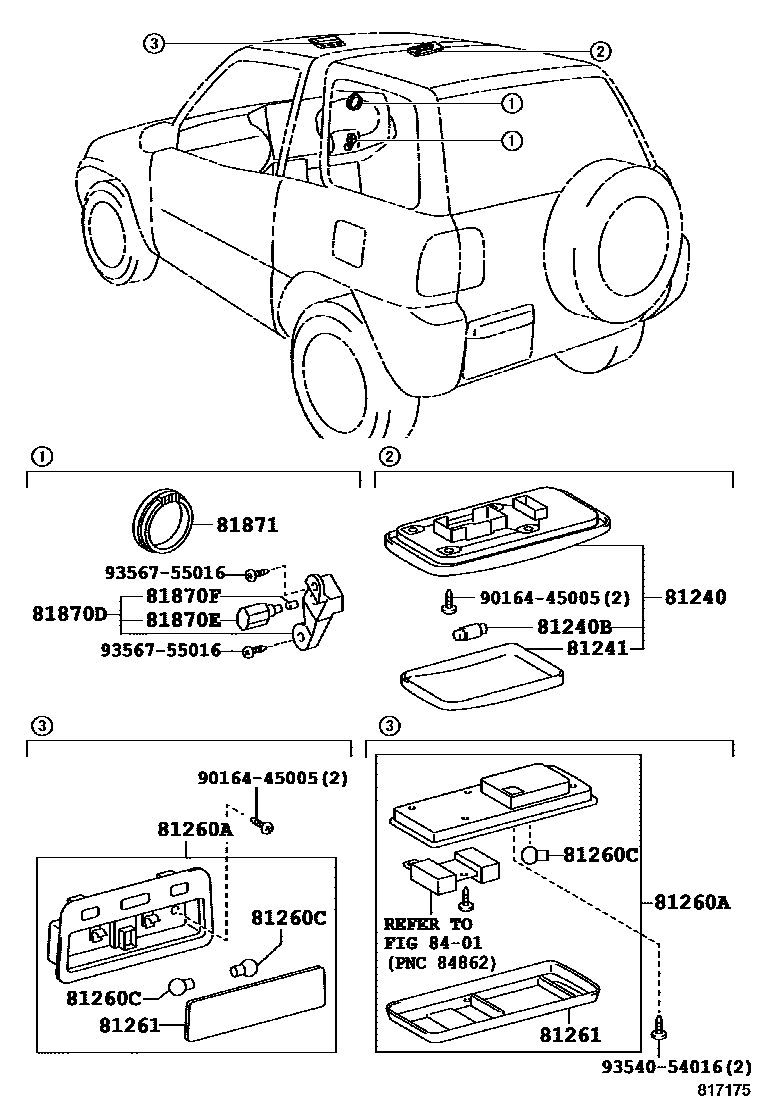

Toyota RAV4 — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B1i199404-199709

LT.BLUISH GRAY,TRIM1#

main81240-12060-B3i199808

LT.GRAY,TRIM1#,10,12; LT.GRAY,TRIM10,11; LT.GRAY,TRIM10,12

main81240-42010-B0i199709-199807

LT.GRAY,TRIM10,11; LT.GRAY,TRIM10,12

81240BBULB, ROOM LAMP, NO.1

main90981-14011i199404

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020i199404

81260ALAMP ASSY, MAP

main81260-14080-B2i199404-199709

LT.BLUISH GRAY,TRIM1#

main81260-14080-B3i199808

LT.GRAY,TRIM1#,10,12; LT.GRAY,TRIM10,12

main81260-20220-B1i199808

W(MOON ROOF),LT.GRAY,TRIM1#,10,12; W(MOON ROOF),LT.GRAY,TRIM10,12

main81260-20220-B2i199504-199709

W(MOON ROOF),BLUISH GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2i199404

12V 8W

main90981-12014i199709

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-14080i199404-199709

main81261-20220-B1i199504-199709

W(ELECTRIC MOON ROOF),BLUISH GRAY,TRIM1#

81870DLAMP ASSY, KEY CYLINDER

main81870-12010i199404

GENERAL UP GRADE PACKAGE

81870EBULB, KEY CYLINDER LAMP

main84999-10250i199404-199709

14V 1.4W; 14V 1.4W,AUSTRALIA UP GRADE PACKAGE; 14V 1.4W,GENERAL UP GRADE PACKAGE

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10550i199404-199709

AUSTRALIA UP GRADE PACKAGE; GENERAL UP GRADE PACKAGE

81871LENS, KEY ILLUMINATION

main81871-12010i199404-199709

AUSTRALIA UP GRADE PACKAGE

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016445005

main90164-45005

9354054016

main93540-54016

9356755016

main93567-55016

14 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota RAV4

This section contains 14 genuine Toyota parts for the INTERIOR LAMP system of the Toyota RAV4. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, MAP, BULB(FOR MAP LAMP).
