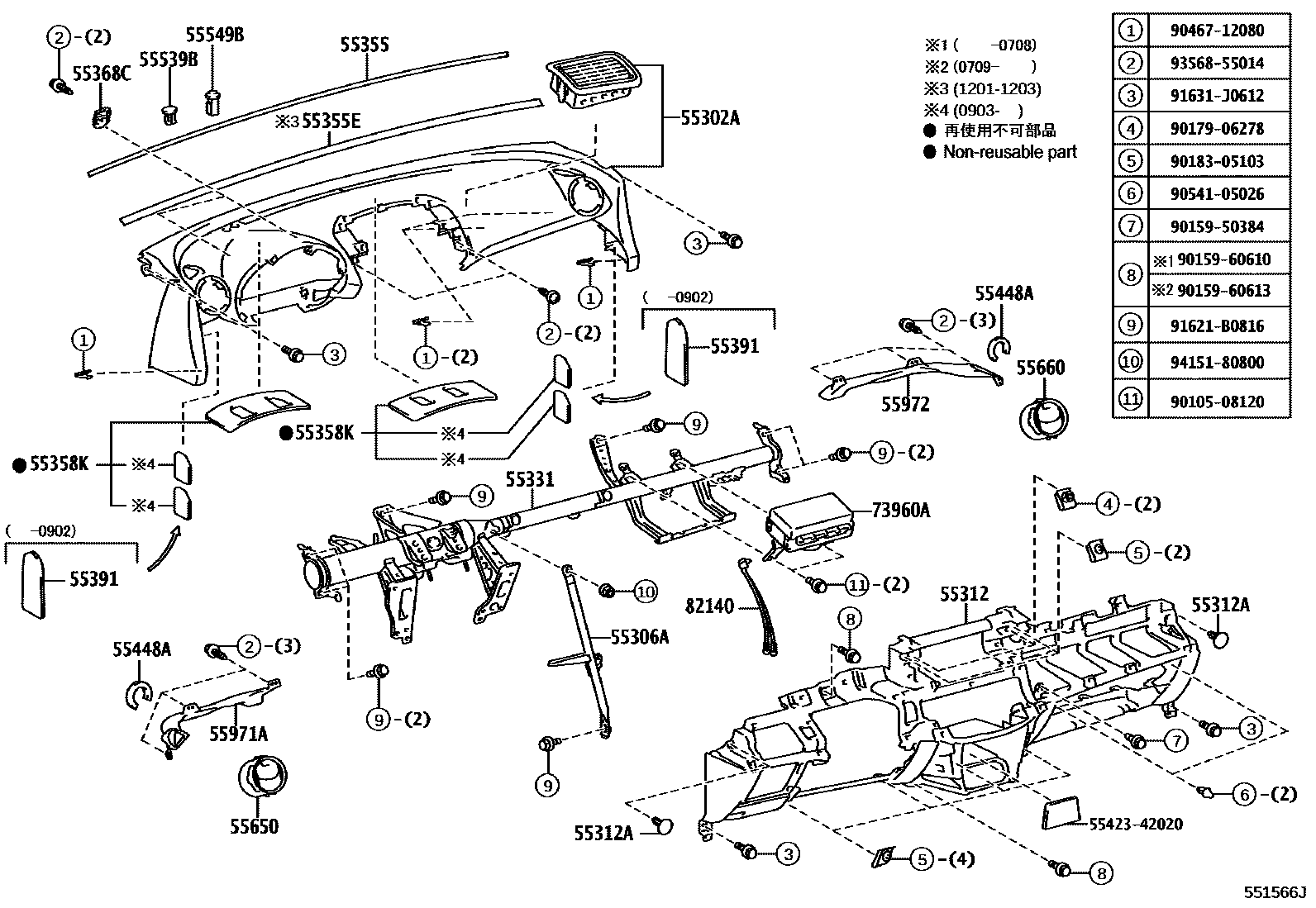

Toyota RAV4 — INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
main55302-42903-B0iACA33,38..LHD;ALA30..LHD..G..ATYPE;ACA30,ALA3#,ZSA3#..LHD..G..(DCRE,DCRL,HTWC,HTWVM); ALA30..LHD..X..ATYPE;ACA30,ALA3#,ZSA3#..LHD..X..(DCRE,HTWC,HTWVM)201201-201203
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
WITH(FRONT WHEEL SPLASH SHIELD); WITHOUT(CURTAIN & SIDE AIR BAG)
55312PANEL, INSTRUMENT, LOWER
DK.GRAY,TRIM13
GRAY,TRIM1#; GRAY,TRIM10
FAWN,TRIM4#
SAND BEIGE,TRIM4#
DK.GRAY,TRIM1#
FAWN,TRIM4#
DK.GRAY,TRIM1#
FAWN,TRIM4#
SAND BEIGE,TRIM4#
DK.GRAY,TRIM1#
FAWN,TRIM4#
SAND BEIGE,TRIM4#
55312ACLIP, INSTRUMENT PANEL
DK.GRAY
55331REINFORCEMENT, INSTRUMENT PANEL
WITH(FRONT WHEEL SPLASH SHIELD); WITHOUT(CURTAIN & SIDE AIR BAG)
WITH(FRONT WHEEL SPLASH SHIELD); WITHOUT(CURTAIN & SIDE AIR BAG)
55355CUSHION, INSTRUMENT PANEL, NO.1
55355ECUSHION, INSTRUMENT PANEL
55358KCUSHION, INSTRUMENT PANEL, NO.4
55368CBRACKET, METER MOUNTING
55391CUSHION, INSTRUMENT PANEL, LOWER NO.1
55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1
55539COVER, SPARE SWITCH HOLE
main55539-52060-B0iACA33,38..GCC,GEN;ACA30,ALA3#,ZSA3#..G; ACA33,38..GEN; ZSA30..X;ZSA30..6F..G;ALA30..RHD..6FC..ATYPE;ALA30,ZSA30..LHD..ATM..G;ACA30,33,38,ALA3#,GSA33,ZSA35..(4FC,5F,5FC,6F)..(ARL,EUR)200808-201212
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM13
GRAY,TRIM1#; GRAY,TRIM10
FAWN,TRIM4#
main55539-52060-E3iZSA30..LHD..CVFC..G;ACA33,38,ALA30..LHD..(4FC,5F,6FC);ACA30,ALA3#,ZSA3#..(4FC,5F,6F)..G200808-201212
SAND BEIGE,TRIM4#
55539BCOVER, SPARE SWITCH HOLE, NO.2
AIR CONDITIONER-MANUAL,DK.GRAY,TRIM1#; AIR CONDITIONER-MANUAL,DK.GRAY,TRIM1#,4#; AIR CONDITIONER-WITHOUT,DK.GRAY,TRIM1#; AIR CONDITIONER-WITHOUT,DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM1#
55549BCOVER, INSTRUMENT PANEL HOLE, NO.2
WITH(SMART KEY & CRUISE CONTROL)
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
GRAY,TRIM1#; GRAY,TRIM1#,4#
main55650-42050-B0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G; ACA33,GSA33..ARL;ACA30,ALA3#,ZSA3#..X200808-201003
GRAY,TRIM1#; GRAY,TRIM1#,4#
GRAY,TRIM1#; GRAY,TRIM1#,4#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#
GRAY,TRIM1#; GRAY,TRIM1#,4#
main55650-42050-B0iACA33,38..LHD;ACA30,ALA3#,ZSA3#..G; ACA33,GSA33..ARL;ACA30,ALA3#,ZSA3#..X200808-201003
GRAY,TRIM1#; GRAY,TRIM1#,4#
main55650-42051-B0iACA33,38..LHD;ALA35..RHD..G;ALA35..LHD..G..DCRE;ACA30,ALA30,ZSA3#..G; ALA3#..RHD..X;ACA30,ZSA3#..X;ACA33,38,GSA33..ARL;ALA3#..LHD..X..DCRE;ALA30..LHD..X..ATYPE201003-201212
GRAY,TRIM1#; GRAY,TRIM1#,4#
55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55972DUCT, SIDE DEFROSTER NOZZLE, NO.2
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
82140WIRE ASSY, INSTRUMENT PANEL
5542342020PANEL, STEREO PLAYER FINISH
main55423-42020
9010508120
main90105-08120
9015950384
main90159-50384
9015960610
main90159-60610
9015960613
main90159-60613
9017906278
main90179-06278
9018305103
main90183-05103
9046712080
main90467-12080
9054105026
main90541-05026
91621B0816
main91621-B0816
91631J0612
main91631-J0612
9356855014
main93568-55014
9415180800
main94151-80800
33 parts on this diagram · 8 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota RAV4
This section contains 69 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota RAV4. Key components include: STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, UPPER, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL, INSTRUMENT, LOWER, CLIP, INSTRUMENT PANEL.
