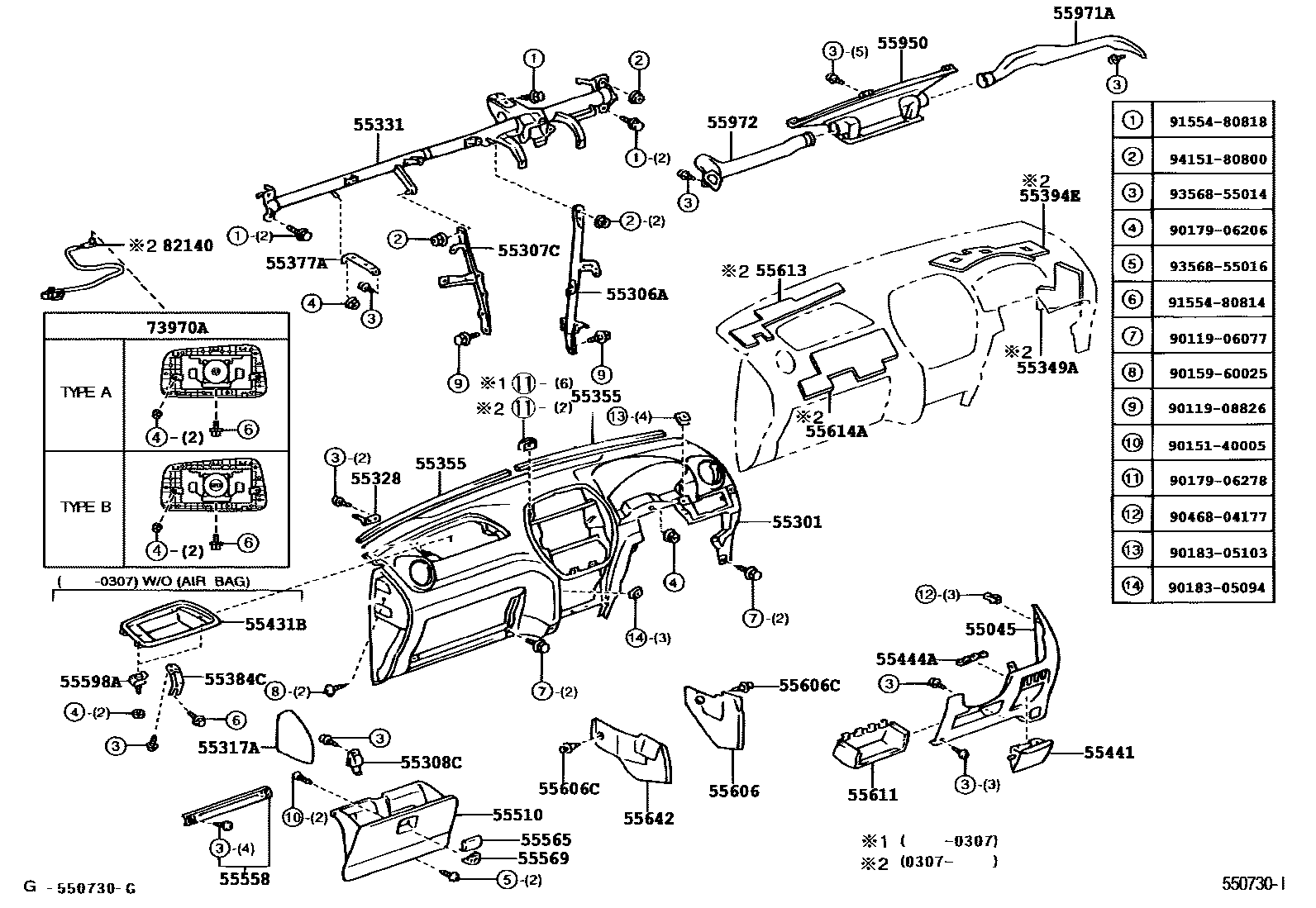

Toyota RAV4 — INSTRUMENT PANEL & GLOVE COMPARTMENT

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55432-42900-B0i200005-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM1#,14,15; BLUE GRAY,TRIM14,15

main55432-42900-B1i200307-200511

DK.GRAY,TRIM1#

main55432-42901-B0i200005-200307

BLUE GRAY,TRIM1#,14,15

main55432-42901-B1i200307-200511

DK.GRAY,TRIM1#

main55432-42902i200307-200511

W(AUTO AIR CONDITIONER)

55301PANEL SUB-ASSY, INSTRUMENT

main55311-42070-B0i200005-200307

DK.GRAY,TRIM1#; DK.GRAY,TRIM14,15

main55311-42080-B0i200005-200307

DK.GRAY,TRIM14,15

main55311-42090-B0i200307-200511

DK.GRAY,TRIM1#

main55311-42100-B0i200307-200511

DK.GRAY,TRIM1#

main55311-42130-B0i200307-200511

W(AUTO AIR CONDITIONER),DK.GRAY,TRIM1#

main55311-42150-B0i200307-200511

DK.GRAY,TRIM1#

main55311-42160-B0i200307-200511

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42060i200307

main55306-42070i200307

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-42050i200307

main55307-42060i200005-200307

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-42050i200005-200307

55317APANEL, INSTRUMENT SIDE, RH

main55317-42010-B0i200005-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main55317-42010-B1i200307-200511

DK.GRAY,TRIM1#

main55317-42020-B0i200005-200307

BLUE GRAY,TRIM14,15

main55317-42020-B1i200307-200511

DK.GRAY,TRIM1#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-22040×2i200307-200311

main55328-51020×2i200311

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-42130i200005-200108

main55330-42131i200108-200307

main55330-42140i200005-200307

main55330-42170i200307

main55330-42190i200307

55349ACUSHION, INSTRUMENT PANEL

main55349-42010i200307

main55349-42020i200307

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-42010×2i200005-200307

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-42010i200307

55384CBRACKET, FINISH PANEL MOUNTING, NO.4

main55384-42010i200008-200307

55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4

main55394-42010i200307

main55394-42020i200307

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55431-42010-B0i200008-200307

DK.GRAY,TRIM14,15

main55431-42020-B0i200008-200307

DK.GRAY,TRIM14,15

55441BOX, INSTRUMENT PANEL

main55441-42010-B0i200005-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main55441-42010-B1i200307-200511

DK.GRAY,TRIM1#

55444ASPRING, INSTRUMENT PANEL BOX

main55444-33030i200005-200307

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-42030-B0i200005-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main55550-42030-B1i200307-200511

DK.GRAY,TRIM1#

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-42020i200005-200307

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22020-B4i200005-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main55565-22020-P0i200307-200511

DK.GRAY,TRIM1#

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22030-B4i200005-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main55569-22030-P0i200307-200511

DK.GRAY,TRIM1#

55598ABRACKET, GLOVE COMPARTMENT DOOR HINGE

main55598-33010×2i200008-200307

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-42010-B0i200005-200108

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main55606-42011-B0i200108-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main55606-42011-B1i200307-200511

DK.GRAY,TRIM1#

main55606-42020-B0i200005-200307

BLUE GRAY,TRIM14,15

main55606-42020-B1i200307-200511

DK.GRAY,TRIM1#

55606CCLIP(FOR INSTRUMENT PANEL UNDER COVER)

main90467-07121-B7×2i200005-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main90467-07121-B9×2i200307-200511

DK.GRAY,TRIM1#

55611TRAY, INSTRUMENT PANEL UNDER

main55611-42010-B0i200005-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main55611-42010-B1i200307-200511

DK.GRAY,TRIM1#

main55611-42020-B0i200005-200307

BLUE GRAY,TRIM14,15

main55611-42020-B1i200307-200511

DK.GRAY,TRIM1#

55613PAD, INSTRUMENT PANEL UNDER TRAY SILENCER, NO.2

main55613-42010i200307

main55613-42020i200307

55614APAD, INSTRUMENT PANEL UNDER TRAY SILENCER, NO.3

main55614-42010i200307

main55614-42020i200307

55642COVER, INSTRUMENT PANEL UNDER, NO.2

main55607-42010-B0i200005-200307

BLUE GRAY,TRIM1#; BLUE GRAY,TRIM14,15

main55607-42010-B1i200307-200511

DK.GRAY,TRIM1#

main55607-42020-B0i200005-200307

BLUE GRAY,TRIM14,15

main55607-42020-B1i200307-200511

DK.GRAY,TRIM1#

55950NOZZLE ASSY, DEFROSTER

main55950-42020i200005-200307

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-42010i200005-200307

main55971-42020i200005-200307

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-42010i200005-200307

main55972-42020i200005-200307

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-42010-B0i200005-200307

DK.GRAY,TRIM1#; DK.GRAY,TRIM14,15

main73970-42020-B0i200005-200307

DK.GRAY,TRIM14,15

main73970-42040-B0i200307-200511

DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.

main73970-42050-B0i200307-200511

DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.

main73970-42060-B0i200307-200511

DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.

main73970-42070-B0i200307-200511

DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.

82140WIRE ASSY, INSTRUMENT PANEL

main82140-42010i200404

W(*80,ELECTRIC TYPE DRIVER SIDE & FRONT PASSENGER SIDE)

main82140-46010i200307-200403

W(*80,ELECTRIC TYPE DRIVER SIDE & FRONT PASSENGER SIDE)

main82142-42030i200307

9011906077

main90119-06077

9011908826

main90119-08826

9015140005

main90151-40005

9015960025

main90159-60025

9017906206

main90179-06206

9017906278

main90179-06278

9018305094

main90183-05094

9018305103

main90183-05103

9046804177

main90468-04177

9155480814

main91554-80814

9155480818

main91554-80818

9356855014

main93568-55014

9356855016

main93568-55016

9415180800

main94151-80800

46 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota RAV4

This section contains 79 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota RAV4. Key components include: PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER.
