Toyota RAV4 — INSTRUMENT PANEL & GLOVE COMPARTMENT

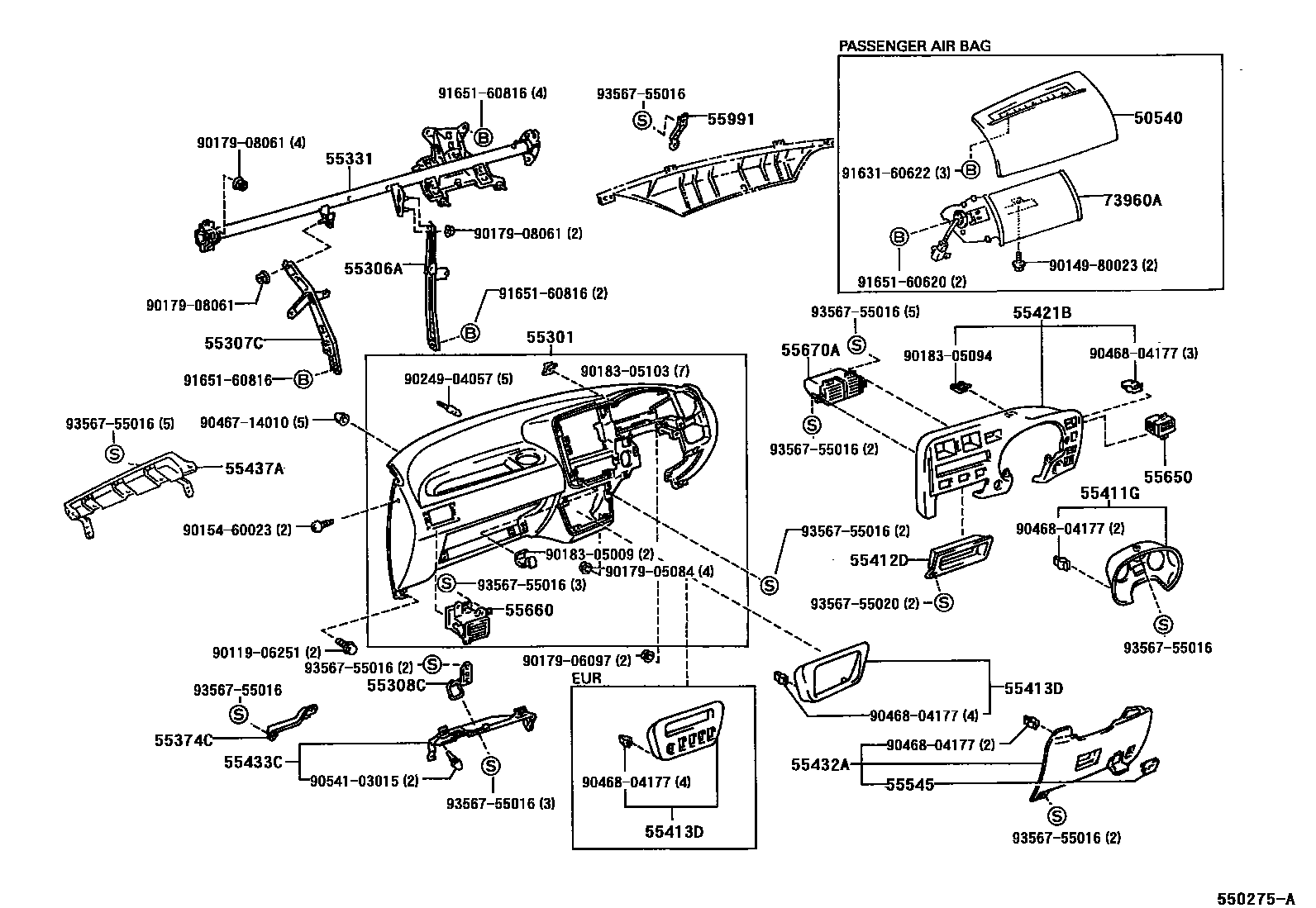

Parts diagram
50540DO0R ASSY, AIRBAG PASSENGER
main50540-42010-B0i199608-199709
BLUISH GRAY,TRIM1#
main50540-42020-B0i199608-199709
BLUISH GRAY,TRIM1#
main50540-42030-B0i199808-200008
SHADOW GRAY,TRIM10,12
main50540-42040-B0i199808-200008
SHADOW GRAY,TRIM1#,10,12; SHADOW GRAY,TRIM10,12
55301PANEL SUB-ASSY, INSTRUMENT
main55301-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main55301-42010-B1i199808-200008
SHADOW GRAY,TRIM10,12
main55301-42020-B0i199404-199608
BLUISH GRAY,TRIM1#
main55301-42020-B1i199709-200008
SHADOW GRAY,TRIM10,11; SHADOW GRAY,TRIM10,12
main55301-42030-B0i199608-199709
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),BLUISH GRAY,TRIM1#
main55301-42030-B1i199709-199808
SHADOW GRAY,TRIM10,12; W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),SHADOW GRAY,TRIM10,12
main55301-42040-B0i199608-199709
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),BLUISH GRAY,TRIM1#
main55301-42040-B1i199709-200008
SHADOW GRAY,TRIM10,11; W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),SHADOW GRAY,TRIM10,11; W(*80,DRIVER SIDE & FRONT PASSENGER SIDE),SHADOW GRAY,TRIM10,12
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-42010i199404-199808
main55306-42020i199608
main55306-42030i199608
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-42010i199608-199709
W/O(*80,FRONT PASSENGER SIDE)
main55307-42020i199608-199709
W/O(*80,FRONT PASSENGER SIDE)
main55307-42030i199808
main55307-42040i199608
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
main55308-42010i199608-199709
W/O(*80,FRONT PASSENGER SIDE)
main55308-42020i199608
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)
main55308-42030i199608
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE); W(*80,DRIVER SIDE & PASSENGER SIDE),TRIM10,11
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-42010i199608-199709
W/O(*80,FRONT PASSENGER SIDE)
main55330-42011i199712
main55330-42020i199404-199608
main55330-42030i199608-199709
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)
main55330-42050i199608-199808
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)
main55330-42090i199709
W(*80,DRIVER SIDE & PASSENGER SIDE); W(*80,DRIVER SIDE & PASSENGER SIDE),TRIM10,11
main55330-42100i199808
main55330-42110i199808
W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
main55374-42010i199404
main55374-42020i199404
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
main55411-42010i199404
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55412-42010-C0i199808-200005
BLACK,TRIM10,11,12; W(RADIO),BLACK,TRIM10,11,12
main55412-42020-C0i199808-200008
BLACK,TRIM1#,10,12; BLACK,TRIM10,12
main55412-42030-C0i199808-200005
BLACK,TRIM1#,10,12
main55412-42040-C0i199404-199709
BLACK,TRIM1#
55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER
main55413-42010-B0i199404-199709
BLUISH GRAY,TRIM1#
main55413-42010-B1i199808
SHADOW GRAY,TRIM1#,10,12; SHADOW GRAY,TRIM10,12
main55413-42020-B0i199404-199709
BLUISH GRAY,TRIM1#
main55413-42020-B1i199709-199808
SHADOW GRAY,TRIM10,12
55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER
main55421-42010-C0i199404-199709
BLACK,TRIM1#
main55421-42020-C0i199404-199709
BLACK,TRIM1#
main55421-42030-C0i199404-199709
BLACK,TRIM1#
main55421-42031-B1i199709-199808
DARK GRAY,TRIM10,12
main55421-42040-C0i199404-199709
BLACK,TRIM1#
main55421-42041-B1i199808-200005
DARK GRAY,TRIM1#,10,12
main55421-42060-B0i199709-200008
DARK GRAY,TRIM10,11
main55421-42070-B0i199709-199808
DARK GRAY,TRIM10,12
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
main55432-42010-B0i199404-199709
BLUISH GRAY,TRIM1#
main55432-42020-B0i199404-199709
BLUISH GRAY,TRIM1#
main55432-42030-B0i199709-199808
SHADOW GRAY,TRIM10,12
main55432-42040-B0i199709-200008
SHADOW GRAY,TRIM10,11
55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH
main55433-42010i199404
55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
main55437-42010i199608
main55437-42020i199608
55545COVER, FUSE BOX OPENING
main55545-42010-B0i199709-199808
SHADOW GRAY,TRIM10,12
main55545-42020-B0i199808-200008
SHADOW GRAY,TRIM1#,10,12; SHADOW GRAY,TRIM10,12
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-42010-C0i199404-199709
BLACK,TRIM1#
main55650-42011-C0i199902-200008
BLACK,TRIM10,11; BLACK,TRIM10,12
main55650-42020-C0i199808-199902
BLACK,TRIM1#,10,12; BLACK,TRIM10,12
main55650-42021-C0i199904-200008
BLACK,TRIM1#; BLACK,TRIM10,11; BLACK,TRIM10,12
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55660-42010-B0i199404-199709
BLUISH GRAY,TRIM1#
main55660-42010-B1i199808-200008
SHADOW GRAY,TRIM10,12
main55660-42020-B0i199404-199709
BLUISH GRAY,TRIM1#
main55660-42020-B1i199808-200008
SHADOW GRAY,TRIM1#,10,12; SHADOW GRAY,TRIM10,12
55670AREGISTER ASSY, INSTRUMENT PANEL, CENTER
main55670-42010-C0i199404-199709
BLACK,TRIM1#
main55670-42011-C0i199904-200008
BLACK,TRIM1#; BLACK,TRIM10,11; BLACK,TRIM10,12
main55670-42020-C0i199404-199709
BLACK,TRIM1#
main55670-42021-C0i199902-200005
BLACK,TRIM1#; BLACK,TRIM10,11
55991BRACKET, DEFROSTER DUCT, NO.1
main55991-42010i199404
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-0W120i199608-199709
main73960-0W140i199608-199709
main73960-0W181i199709
main73960-0W191i199709
9011906251
main90119-06251
9014980023
main90149-80023
9015460023
main90154-60023
9017905084
main90179-05084
9017906097
main90179-06097
9017908061
main90179-08061
9018305009
main90183-05009
9018305094
main90183-05094
9018305103
main90183-05103
9024904057
main90249-04057
9046714010
main90467-14010
9046804177
main90468-04177
9054103015
main90541-03015
9163160622
main91631-60622
9165160620
main91651-60620
9165160816
main91651-60816
9356755016
main93567-55016
9356755020
main93567-55020

38 parts on this diagram · 4 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota RAV4

This section contains 67 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota RAV4. Key components include: DO0R ASSY, AIRBAG PASSENGER, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER.
