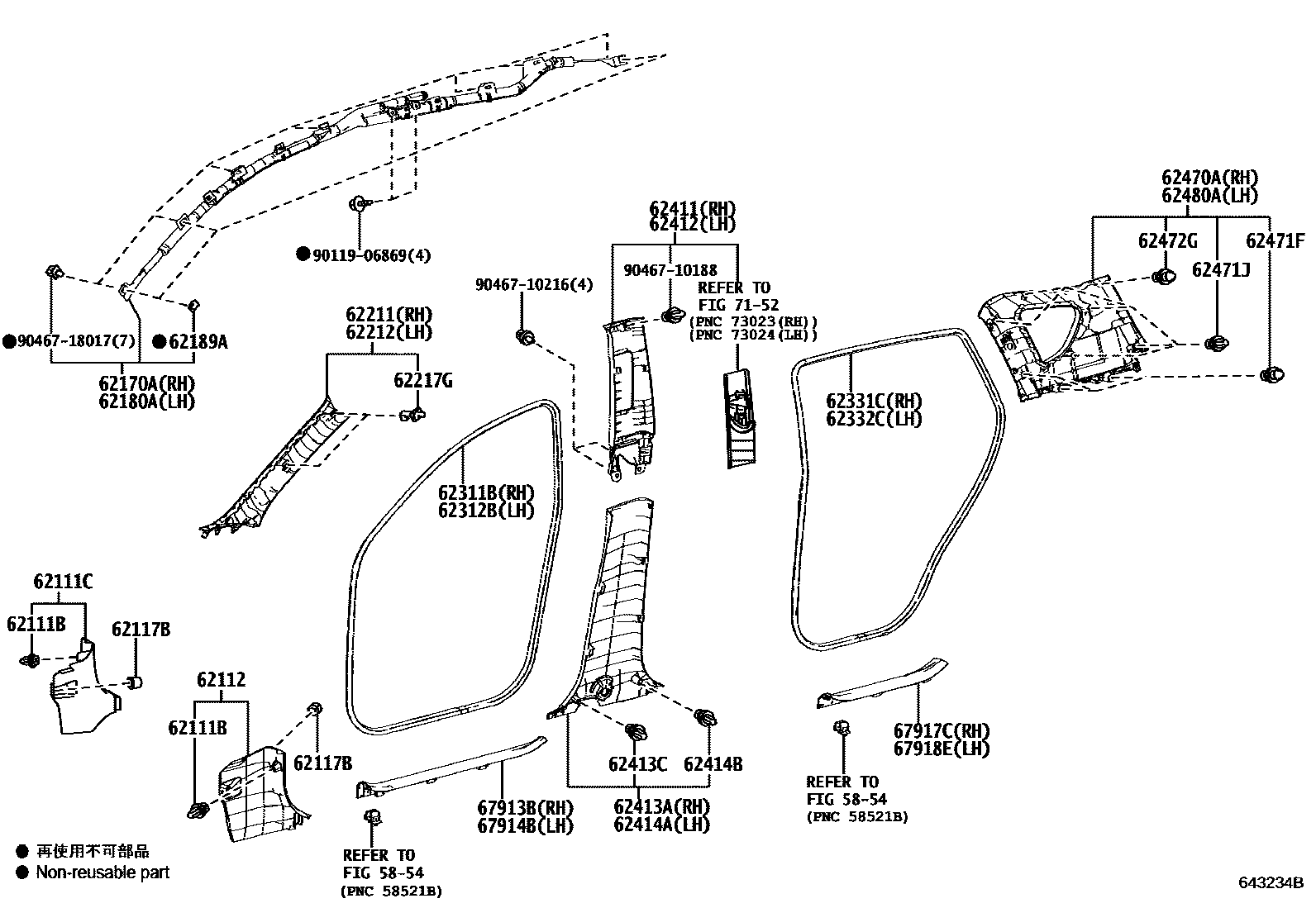

Toyota RAV4 — INSIDE TRIM BOARD
5854FLOOR MAT & SILENCER PAD
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
62112BOARD, COWL SIDE TRIM, LH
main62112-42060-C0iASA44,ZSA4#..RHD..X; ASA44..RHD..G;ALA49,ZSA4#..RHD..(CVT,MTM)..G; ASA44..RHD..M;ALA49,ZSA4#..RHD..(CVT,MTM)..M201510-201812
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
main62112-42061-C0iASA4#..LHD..X;ZSA4#..A..X..GEN; ASA42..G;ASA44..G..GCC; ASA44,ZSA4#..G..GEN; ZSA4#..6F..GEN201410-201510
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-42030iALA49..X..GEN;ALA49..6FC..M..GEN; AVA4#;ALA49..RHD..6FC;ALA49..RHD..6F..X;ALA49..6FC..G..GEN201510-201810
SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-42050iASA42..G..GCC;ASA44,ZSA4#..LHD..G; ASA42..G..GEN; ASA44,ZSA42..ARL; ASA44..G..GEN; ZSA4#..G..GEN; ZSA42..G..GEN201212-201510
*334; *334&SEAT COVER MATERIAL-NATURAL LEATHER; RUSSIA SPEC; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH; RUSSIA SPEC&SEAT HEATER-WITH; SEAT COVER MATERIAL-NATURAL LEATHER; SRS AIR BAG-WITH(*DRP&SIDE&CURTAIN SHIELD); UKURAINE SPEC; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH; UKURAINE SPEC&SEAT HEATER-WITH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
main62189-42010×6iASA42..G..GCC;ASA44,ZSA4#..LHD..G; ASA42..G..GEN; ASA44,ZSA42..ARL; ASA44..G..GEN; ZSA4#..G..GEN; ZSA42..G..GEN201212-201510
*334; *334&SEAT COVER MATERIAL-NATURAL LEATHER; RUSSIA SPEC; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH; RUSSIA SPEC&SEAT HEATER-WITH; SEAT COVER MATERIAL-NATURAL LEATHER; SRS AIR BAG-WITH(*DRP&SIDE&CURTAIN SHIELD); UKURAINE SPEC; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH; UKURAINE SPEC&SEAT HEATER-WITH
62211GARNISH, FRONT PILLAR, RH
main62210-42050-B0iASA42..G..GCC;ASA44,ZSA4#..LHD..G; ASA42..G..GEN; ASA44,ZSA42..G..ARL; ASA44,ZSA42..X..ARL; ASA44..G..GEN; ZSA4#..G..GEN; ZSA42..G..GEN201212-201510
*334&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; *334,LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM2#,4#; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC,LT.GRAY,TRIM1#,2#,3#,4#; SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; SRS AIR BAG-WITH(*DRP&SIDE&CURTAIN SHIELD),LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC,LT.GRAY,TRIM1#,2#,3#,4#
main62210-42051-B0supersedes 62210-42070-B0iALA49,AVA4#..(6FC,A)..G; ALA49..6FC..M..GEN; ALA49..RHD..X; ALA49..X..GEN; AVA4#..M;ALA49..RHD..6FC..M201607-201810
LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#; SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),LT.GRAY,TRIM1#,2#,4#; SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM2#,4#; TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,LT.GRAY,TRIM10,20,40
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,BLACK,TRIM1#,2#,4#
62212GARNISH, FRONT PILLAR, LH
main62220-42050-B0iASA42..G..GCC;ASA44,ZSA4#..LHD..G; ASA42..G..GEN; ASA44,ZSA42..G..ARL; ASA44,ZSA42..X..ARL; ASA44..G..GEN; ZSA4#..G..GEN; ZSA42..G..GEN201212-201510
*334&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; *334,LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM2#,4#; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC,LT.GRAY,TRIM1#,2#,3#,4#; SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; SRS AIR BAG-WITH(*DRP&SIDE&CURTAIN SHIELD),LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC,LT.GRAY,TRIM1#,2#,3#,4#
main62220-42051-B0supersedes 62220-42070-B0iALA49..6F..G;ASA4#,ZSA4#..G; ASA4#,ZSA4#..LHD..X..GEN; ASA4#..LHD..M..GEN;ALA49,ZSA4#..LHD..(CVT,MTM)..M; ASA44,ZSA4#..RHD..X; ASA44..RHD..M;ALA49,ZSA4#..RHD..(CVT,MTM)..M201607-201812
LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#; SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),LT.GRAY,TRIM1#,2#,4#; SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM2#,4#; TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,LT.GRAY,TRIM10,20,40
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,BLACK,TRIM1#,2#,4#
62217GCLIP, FRONT PILLAR GARNISH
main62217-52120×4supersedes 90467-10161iALA49..X..GEN;ALA49..6FC..M..GEN; AVA4#;ALA49..RHD..6FC;ALA49..RHD..6F..X;ALA49..6FC..G..GEN201510-201810
SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY)
TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411GARNISH, CENTER PILLAR, RH
LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,BLACK,TRIM1#,2#,4#
62412GARNISH, CENTER PILLAR, LH
LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,BLACK,TRIM1#,2#,4#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
62414BCLIP (FOR CENTER LOWER GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-42130-B0iASA42..G..GCC;ASA44,ZSA4#..LHD..G; ASA42..G..GEN; ASA44,ZSA42..G..ARL; ASA44,ZSA42..X..ARL; ASA44..G..GEN; ZSA4#..G..GEN; ZSA42..G..GEN201212-201510
*334&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; *334,LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM2#,4#; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC,LT.GRAY,TRIM1#,2#,3#,4#; SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; SRS AIR BAG-WITH(*DRP&SIDE&CURTAIN SHIELD),LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC,LT.GRAY,TRIM1#,2#,3#,4#
main62470-42131-B0supersedes 62470-42141-B0iALA49..6F..G;ASA4#,ZSA4#..G; ASA4#,ZSA4#..LHD..X..GEN; ASA4#..LHD..M..GEN;ALA49,ZSA4#..LHD..(CVT,MTM)..M; ASA44,ZSA4#..RHD..X; ASA44..RHD..M;ALA49,ZSA4#..RHD..(CVT,MTM)..M201606-201812
LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#; SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),LT.GRAY,TRIM1#,2#,4#; SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,LT.GRAY,TRIM10,20,40
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,BLACK,TRIM10,20,40
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62471JCLIP (FOR ROOF SIDE GARNISH)
62472GCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-42130-B0iASA42..G..GCC;ASA44,ZSA4#..LHD..G; ASA42..G..GEN; ASA44,ZSA42..G..ARL; ASA44,ZSA42..X..ARL; ASA44..G..GEN; ZSA4#..G..GEN; ZSA42..G..GEN201212-201510
*334&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; *334,LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM2#,4#; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; RUSSIA SPEC,LT.GRAY,TRIM1#,2#,3#,4#; SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; SRS AIR BAG-WITH(*DRP&SIDE&CURTAIN SHIELD),LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC&SEAT HEATER-WITH,LT.GRAY,TRIM1#,2#,3#,4#; UKURAINE SPEC,LT.GRAY,TRIM1#,2#,3#,4#
main62480-42131-B0supersedes 62480-42141-B0iALA49..6F..G;ASA4#,ZSA4#..G; ASA4#,ZSA4#..LHD..X..GEN; ASA4#..LHD..M..GEN;ALA49,ZSA4#..LHD..(CVT,MTM)..M; ASA44,ZSA4#..RHD..X; ASA44..RHD..M;ALA49,ZSA4#..RHD..(CVT,MTM)..M201606-201812
LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#; SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),LT.GRAY,TRIM1#,2#,4#; SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE:*DRS ONLY),LT.GRAY,TRIM2#,4#
LT.GRAY,TRIM1#,2#,3#,4#; LT.GRAY,TRIM2#,4#; TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,LT.GRAY,TRIM1#,2#,3#,4#
LT.GRAY,TRIM1#,2#,4#; LT.GRAY,TRIM2#,4#
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,LT.GRAY,TRIM10,20,40
ROOF HEADLINING-WITH(FLAT KNIT), BLACK,BLACK,TRIM10,20,40
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-42110-C0iASA4#,ZSA4#..G;ZSA4#..6F..GEN; ASA4#..X;ZSA42..X..ARL; ZSA4#..A..X..GEN201212-201510
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-42110-C0iASA4#,ZSA4#..G;ZSA4#..6F..GEN; ASA4#..X;ZSA42..X..ARL; ZSA4#..A..X..GEN201212-201510
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-42070-C0iALA49..6F..G;ASA4#,ZSA4#..G; ALA49..6F..M;ASA4#,ZSA4#..M; ASA4#,ZSA4#..X201510-201812
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#
67918EPLATE, REAR DOOR SCUFF, LH
main67918-42070-C0iASA4#,ZSA4#..G;ZSA4#..6F..GEN; ASA4#..X;ZSA42..X..ARL; ZSA4#..A..X..GEN201212-201510
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM2#,3#,4#; BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#
7152SEAT BELT
9011906869
main90119-06869
9046710188
main90467-10188
9046710216
main90467-10216
9046718017
main90467-18017
35 parts on this diagram · 2 diagrams in section
INSIDE TRIM BOARD for Toyota RAV4
This section contains 35 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota RAV4. Key components include: FLOOR MAT & SILENCER PAD, CLIP(FOR COWL SIDE TRIM), BOARD, COWL SIDE TRIM, RH, BOARD, COWL SIDE TRIM, LH, CLIP, NO.1(FOR COWL SIDE TRIM).
