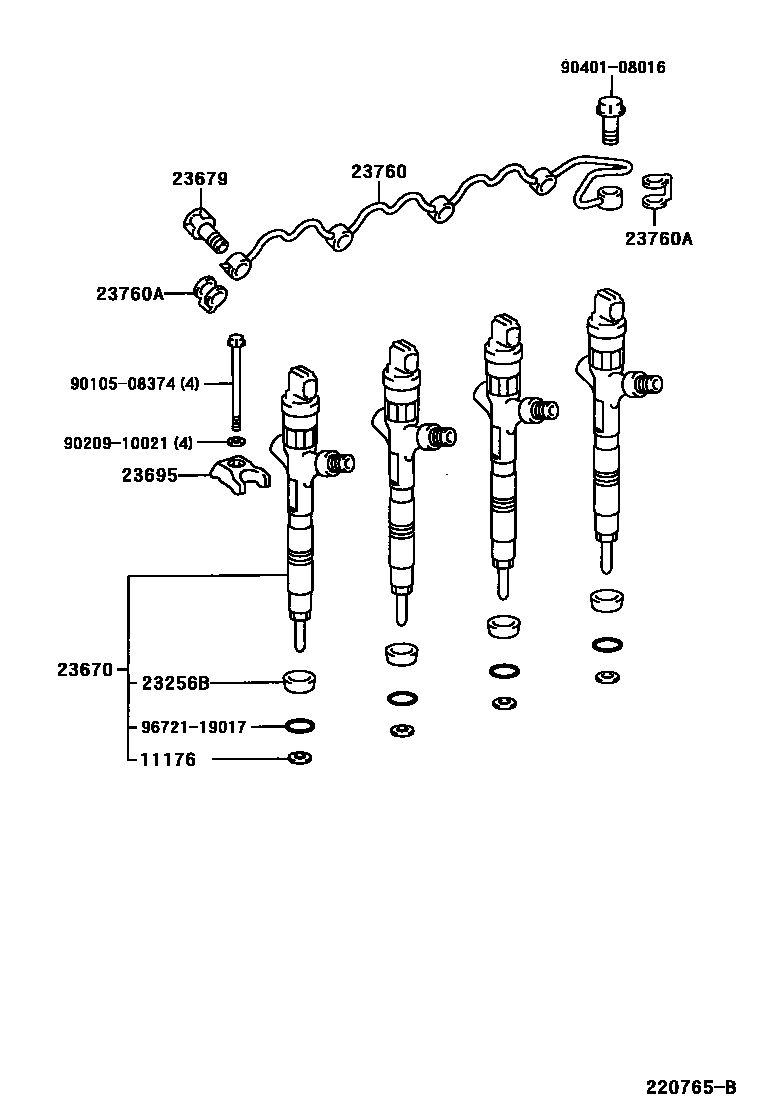

Toyota RAV4 — INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main11176-27010i1CDFTV..CLA2#200105-200307

sub11176-27011

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-27010i1CDFTV..CLA2#200105-200307

23670INJECTOR ASSY

main23670-29035i1CDFTV..CLA2#200105-200307

sub23670-29036

23679SCREW, INJECTOR FOLLOW

main23679-27020i1CDFTV..CLA2#200105-200307

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-27010i1CDFTV..CLA2#200105-200210

sub23695-27020

main23695-27020i1CDFTV..CLA2#200210-200307

23760PIPE ASSY, NOZZLE LEAKAGE

main23761-27010i1CDFTV..CLA2#200105-200307

23760AGASKET

main90904-30008i1CDFTV..CLA2#200105-200307

9010508374

main90105-08374

9020910021

main90209-10021

9040108016

main90401-08016

9672119017

main96721-19017

11 parts on this diagram · 1 diagram in section
