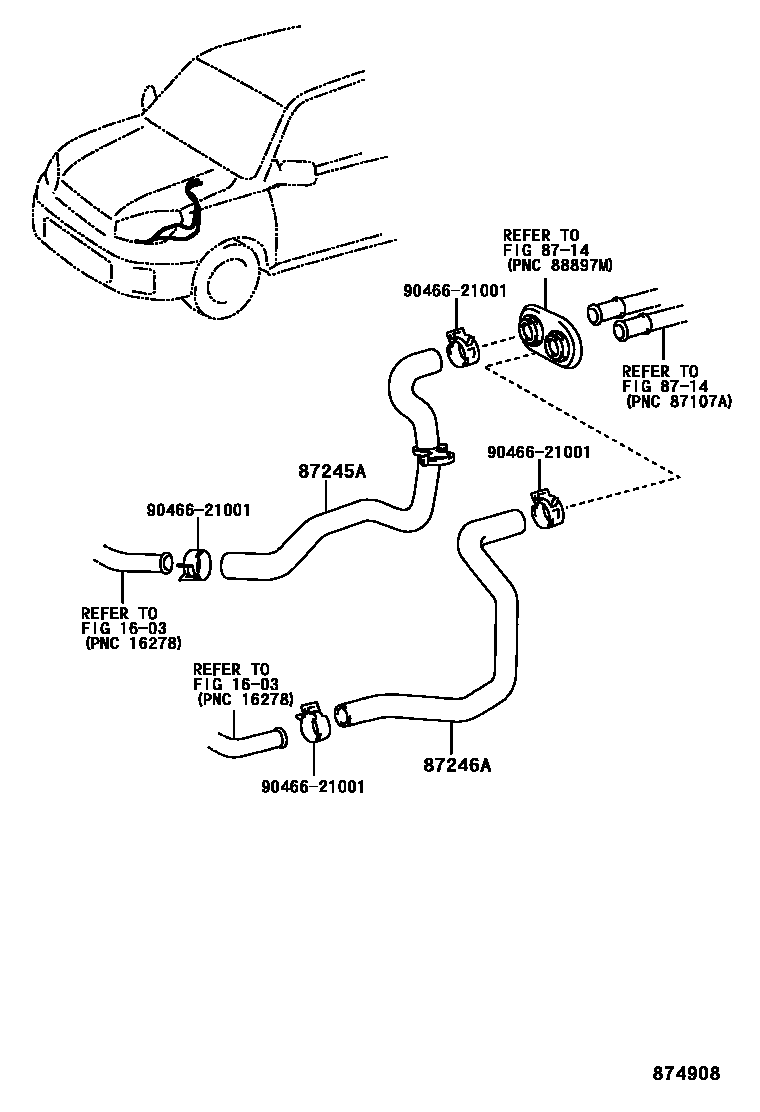

Toyota RAV4 — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87209-42010iCLA2#200105-200307

main87209-42020iACA20,21..ATM..EUR200307

main87245-42190iACA2#200005-200307

main87245-42230iZCA2#200005-200307

main87245-42270iACA21..ATM..GCC;ACA20,22,23..ARL,GCC;ACA20,21..MTM..(EUR,GCC)200307

87246AHOSE, HEATER WATER, OUTLET A

main87209-42030iACA2#..ARL,EUR,GCC200307

main87245-42200iACA2#200005-200307

main87245-42240iZCA2#200005-200307

main87245-42260iCLA2#200105-200307

9046621001

main90466-21001

5 parts on this diagram · 6 diagrams in section
