Toyota RAV4 — HEATING & AIR CONDITIONING - SET

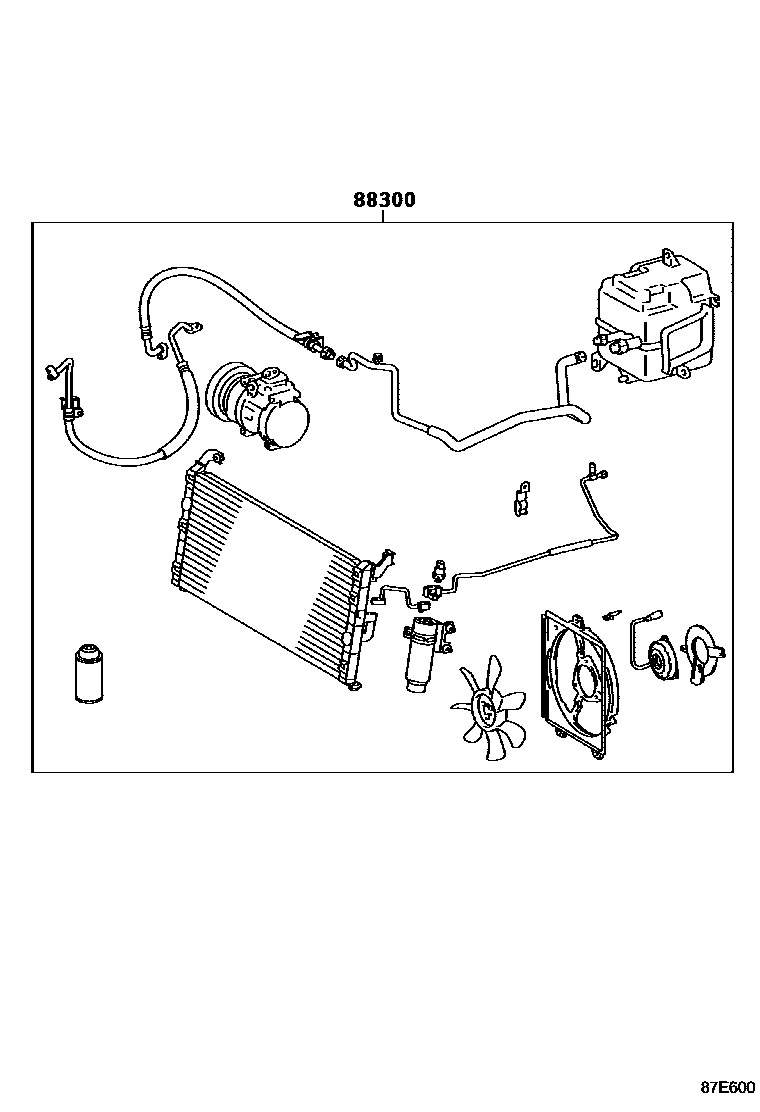

Parts diagram

88300COOLER & ACCESSORY ASSY

main88300-42010i199404-199608

main88300-42011i199608-199701

main88300-42012i199701-199709

main88300-42013i199709

main88300-42020i199404-199608

main88300-42021i199608-199701

main88300-42022i199701-199709

main88300-42023i199709

main88300-42030i199404-199608

main88300-42031i199608-199709

main88300-42032i199709

main88300-42040i199404-199608

main88300-42041i199608-199709

main88300-42042i199709

main88300-42050i199404-199608

main88300-42051i199608-199709

main88300-42052i199709

main88300-42060i199404-199608

main88300-42061i199608-199709

main88300-42062i199709

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota RAV4

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota RAV4. Key components include: COOLER & ACCESSORY ASSY.
