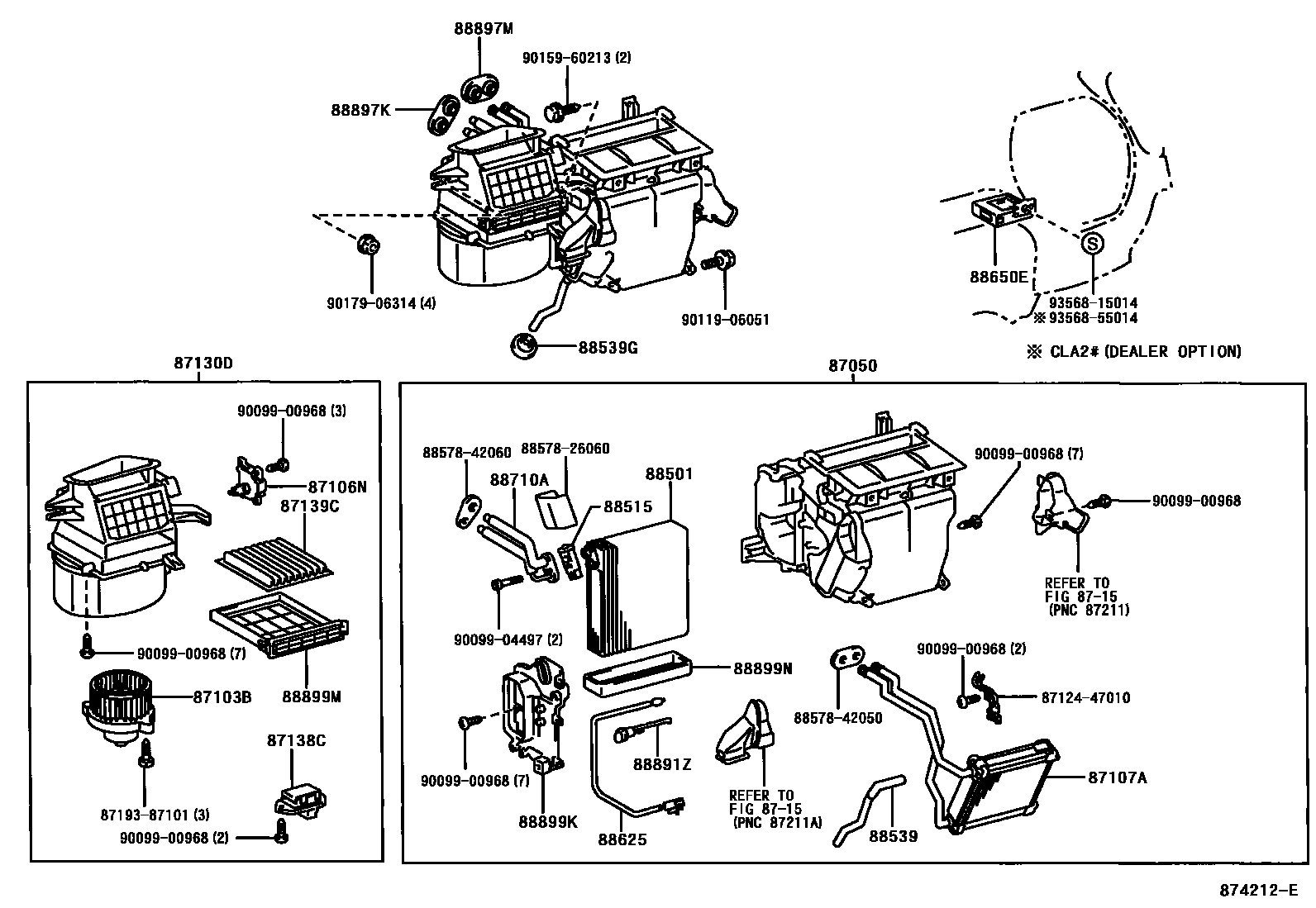

Toyota RAV4 — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1W/O(AIR CONDITIONER) 0003 1MANUAL AIR CONDITIONER 0004 1W/O(AIR CONDITIONER) 0005 1MANUAL AIR CONDITIONER 0006 1AUTO AIR CONDITIONER 0007 1W/O(AIR CONDITIONER) 0008 1MANUAL AIR CONDITIONER 0009 1AUTO AIR CONDITIONER 0010 1W/O(AIR CONDITIONER) 0011 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-42040iACA2#,ZCA2#..RHD..(EUR,GEN)200005-200307

MANUAL AIR CONDITIONER

main87050-42050iACA2#,ZCA2#..LHD..EUR200005-200307

COLD SPEC & MANUAL AIR CONDITIONER

main87050-42060iACA2#,ZCA2#..LHD..EUR200005-200307

MANUAL AIR CONDITIONER

sub87050-42240

main87050-42070iACA2#,ZCA2#..RHD200005-200307

main87050-42080iACA20,21,ZCA2#..LHD..EUR200005-200307

COLD SPEC

main87050-42090iACA20,21,ZCA2#..LHD200005-200307

main87050-42100iACA2#..LHD..(GCC,GEN)200008-200307

MANUAL AIR CONDITIONER

sub87050-42250

main87050-42110iCLA2#..RHD200105-200307

MANUAL AIR CONDITIONER

main87050-42120iCLA2#..LHD200105-200307

COLD SPEC & MANUAL AIR CONDITIONER

sub87050-42270

main87050-42130iCLA2#..LHD200105-200307

MANUAL AIR CONDITIONER

sub87050-42280

main87050-42140iCLA2#..RHD200105-200307

main87050-42150iCLA2#..LHD200105-200307

COLD SPEC

main87050-42160iCLA2#..LHD200105-200307

main87050-42170iACA20,21,ZCA2#..LHD..EUR200307

AUTO AIR CONDITIONER

main87050-42180iCLA2#..RHD200307

AUTO AIR CONDITIONER

main87050-42190iCLA2#..LHD200307

AUTO AIR CONDITIONER

main87050-42200iACA20,21,ZCA2#..RHD..EUR200307

AUTO AIR CONDITIONER

main87050-42220iACA20,21,ZCA2#..RHD200307

MANUAL AIR CONDITIONER

main87050-42230iACA20,21,ZCA2#..LHD..EUR200307

COLD SPEC & MANUAL AIR CONDITIONER

main87050-42240iACA20,21,ZCA2#..LHD..EUR200307

MANUAL AIR CONDITIONER

main87050-42250iACA20,21..LHD..(GCC,GEN)200307

MANUAL AIR CONDITIONER

main87050-42260iCLA2#..RHD200307

MANUAL AIR CONDITIONER

main87050-42270iCLA2#..LHD200307

COLD SPEC & MANUAL AIR CONDITIONER

main87050-42280iCLA2#..LHD200307

MANUAL AIR CONDITIONER

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42030iACA2#,CLA2#,ZCA2#..RHD200005-200307

main87103-42040iACA2#,CLA2#,ZCA2#..LHD200005-200307

main87103-42050iACA2#,CLA2#,ZCA2#..RHD200307

main87103-42060iACA20,21,CLA2#,ZCA2#..LHD200307

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-42040iACA2#,CLA2#,ZCA2#..RHD200005-200307

main87106-42050iACA20,21,CLA2#,ZCA2#..LHD200005-200307

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42120iACA2#,ZCA2#..RHD200005-200307

main87107-42130iACA2#,ZCA2#..LHD200005-200307

main87107-42140iCLA2#..RHD200105-200307

main87107-42150iCLA2#..LHD200105-200307

main87107-42160iCLA2#..LHD200209-200307

COLD SPEC

87130DBLOWER ASSY

main87130-42080iACA2#..RHD..(ARL,GEN)200005-200307

main87130-42090iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

main87130-42100iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

main87130-42110iACA2#..LHD..(GCC,GEN)200008-200307

main87130-42120iACA20,21,CLA2#,ZCA2#..RHD..EUR200307

AUTO AIR CONDITIONER

main87130-42130iACA20,21,CLA2#,ZCA2#..RHD..EUR200307

main87130-42140iACA21,22,23..RHD..(ARL,GEN)200307

main87130-42150iACA20,21,CLA2#,ZCA2#..LHD..EUR200307

main87130-42160iACA20,21..LHD..(GCC,GEN)200307

main87130-42170iACA20,21,CLA2#,ZCA2#..LHD..EUR200307

AUTO AIR CONDITIONER

87138CRESISTOR, BLOWER

main87138-42020iACA2#,CLA2#,ZCA2#..RHD200005-200307

main87138-42030iACA2#,CLA2#,ZCA2#..LHD200005-200307

87139CFILTER, CLEAN AIR

main88568-52010iACA2#,CLA2#,ZCA2#..EUR200005-200307

8715

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20500iACA2#..LHD..(GCC,GEN)200008-200105

main88501-42070iCLA2#..RHD200105-200511

MAKER OPTION

main88501-42070iACA22,23200308-200511

main88501-42080iACA2#,ZCA2#..LHD..EUR200105-200511

MAKER OPTION

main88501-42090iACA2#..LHD..(GCC,GEN)200105-200307

MAKER OPTION

main88501-42090iACA20,21..LHD..(GCC,GEN)200307-200511

main88501-47010iACA20,21,ZCA2#..RHD..(ARL,EUR)200105-200308

DEALER OPTION

main88501-47010iACA2#,ZCA2#..RHD200005-200105

main88501-47020iACA2#,ZCA2#..LHD..EUR200105-200308

DEALER OPTION

main88501-47020iACA2#,ZCA2#..LHD..EUR200005-200105

88515VALVE, COOLER EXPANSION

main88515-42070iCLA2#;ACA20,21,ZCA2#..LHD..EUR200307-200308

DEALER OPTION

sub88515-42080

main88515-42070iACA2#,CLA2#,ZCA2#200005-200307

sub88515-42080

main88515-42080iACA20,21,CLA2#,ZCA2#200307-200511

MAKER OPTION

main88515-42080iACA22,23200308-200511

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-42020iACA2#,CLA2#,ZCA2#..RHD200005-200511

main88539-42040iACA2#,CLA2#,ZCA2#..LHD200005-200511

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-25035iACA2#,CLA2#,ZCA2#..RHD200005-200307

88625THERMISTOR, COOLER, NO.1

main88625-42080iACA2#,CLA2#,ZCA2#200005-200511

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-42130iACA2#,ZCA2#200005-200511

main88650-42150iCLA2#200105-200511

88710ATUBE ASSY, AIR CONDITIONER

main88710-42040iACA2#,CLA2#,ZCA2#..RHD200005-200511

main88710-42050iACA2#,CLA2#,ZCA2#..LHD200005-200511

88891ZBRACKET, COOLER THERMISTOR

main88891-32100iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200307

88897KGROMMET, (FOR COOLER PIPE)

main88897-12240iACA2#,CLA2#,ZCA2#200005-200511

88897MGROMMET (FOR HEATER PIPE)

main90480-01405iACA2#,CLA2#,ZCA2#200005-200307

88899KPLATE, COVER

main88899-42070iACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)200005-200307

MANUAL AIR CONDITIONER

main88899-42080iACA2#,CLA2#,ZCA2#..LHD200005-200307

MANUAL AIR CONDITIONER

main88899-42100iACA2#,CLA2#,ZCA2#..RHD200005-200307

main88899-42110iACA2#,CLA2#,ZCA2#..LHD200005-200307

88899MPLATE, COVER(FOR AIR FILTER)

main88899-42090iACA2#,CLA2#,ZCA2#200005-200511

88899NPLATE, COVER

main88899-47030iACA2#,CLA2#,ZCA2#200005-200307

8712447010CLAMP, HEATER

main87124-47010

8719387101

main87193-87101

8857826060PAKING, COOLER AIR DUCT

main88578-26060

8857842050PAKING, COOLER AIR DUCT

main88578-42050

8857842060PAKING, COOLER AIR DUCT

main88578-42060

9009900968

main90099-00968

9009904497

main90099-04497

9011906051

main90119-06051

9015960213

main90159-60213

9017906314

main90179-06314

9356815014

main93568-15014

9356855014

main93568-55014

33 parts on this diagram · 11 diagrams in section
