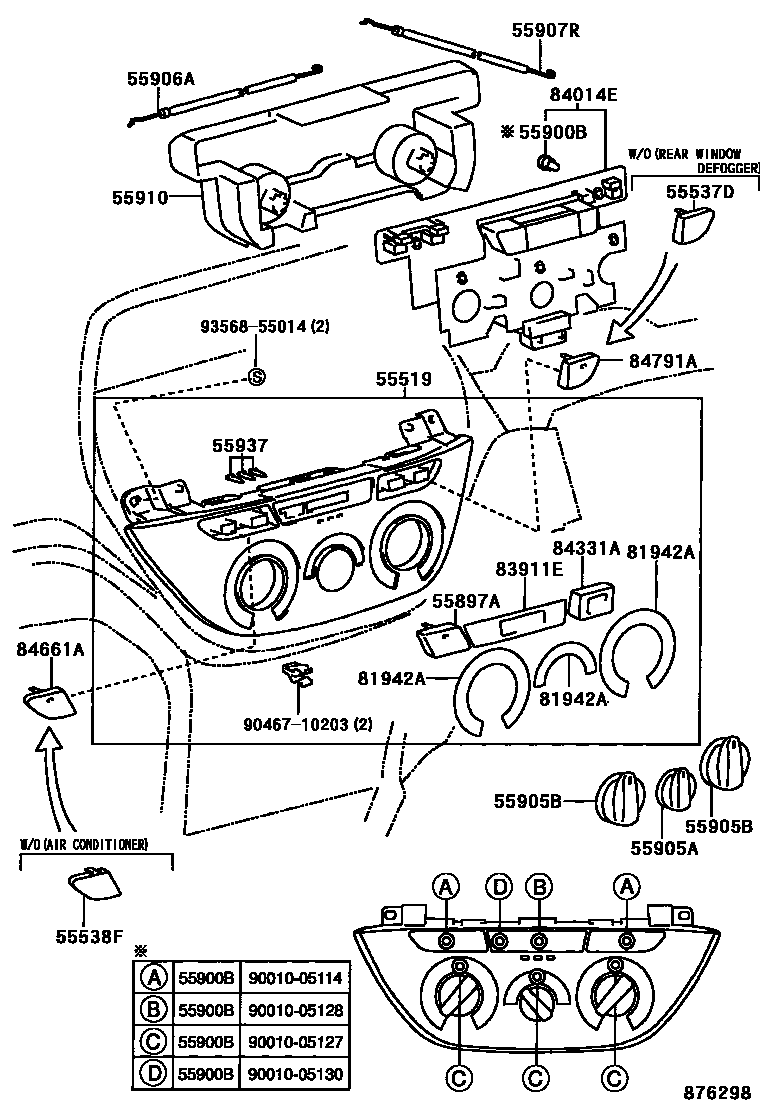

Toyota RAV4 — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55537DCOVER, REAR DEFOGGER SWITCH HOLE
55538FCOVER, COOLER SWITCH HOLE
55897AKNOB, AIR DAMPER CONTROL LEVER
55900BBULB, AIR CONDITIONER CONTROL
14V 1.12W,W(CAP),TYPE A:REFER TO ILLUSTRATION
14V 1.4W,TYPE C:REFER TO ILLUSTRATION
14V 0.91W,TYPE B:REFER TO ILLUSTRATION
14V 0.91W,TYPE C:REFER TO ILLUSTRATION
14V 1.4W,TYPE D:REFER TO ILLUSTRATION
55905AKNOB, HEATER CONTROL
AUTO AIR CONDITIONER
55905BKNOB, HEATER CONTROL, NO.2
AUTO AIR CONDITIONER
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55907RCABLE SUB-ASSY, TEMPERATURE CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
55937KNOB, HEATER CONTROL LEVER
81942ASHEET, HEATER CONTROL NAME, NO.1
BLOWER
TEMP
MODE
BLOWER
TEMP
MODE
TEMP
MODE
83911EORNAMENT, CLOCK
NO.1
NO.2
84014EBOARD SUB-ASSY, PRINTED WIRE INTEGRATION
AUTO AIR CONDITIONER
84331AKNOB, HAZARD WARNING SIGNAL SWITCH
84661AKNOB, COOLER CONTROL SWITCH
84791AKNOB, DEFOGGER TIME SWITCH
9046710203
main90467-10203
9356855014
main93568-55014
19 parts on this diagram · 5 diagrams in section
