Toyota RAV4 — HEADLAMP

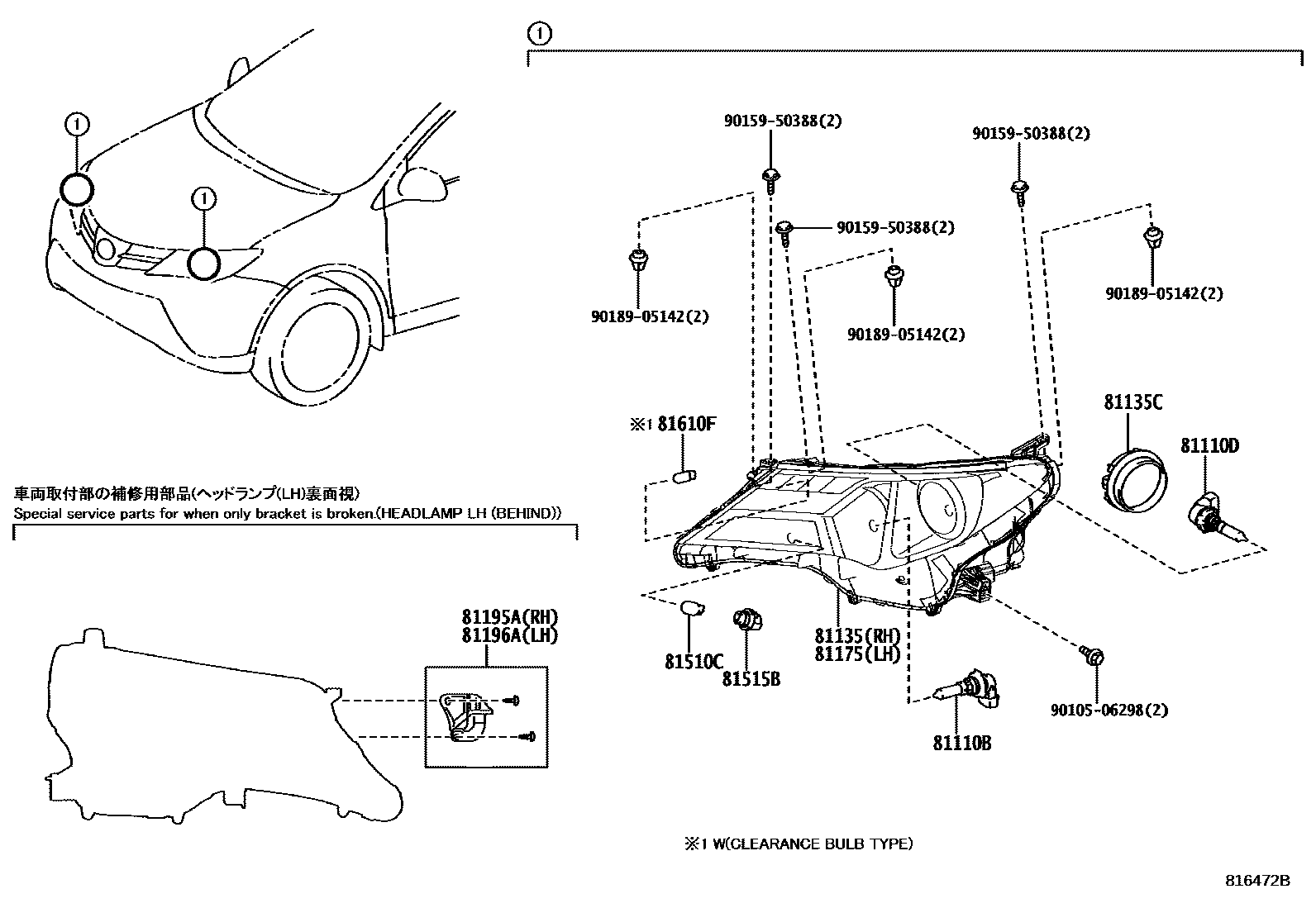

Parts diagram
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13092×2i201212-201510
12V 60W,HALOGEN
main90981-13102×2i201510-201810
12V 55W
81110DBULB(FOR HEADLAMP, NO.2)
main90981-13092×2i201212-201510
12V 60W,HALOGEN
81135UNIT ASSY, HEADLAMP, RH
main81130-42520supersedes 81130-42542i201212-201305
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
main81130-42521i201305-201308
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
main81130-42522i201308-201510
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
main81130-42560supersedes 81130-42552i201212-201305
NEW ZEALAND SPEC; SOUTH AFRICA SPEC
main81130-42561i201305-201308
NEW ZEALAND SPEC; SOUTH AFRICA SPEC
main81130-42562i201308-201510
NEW ZEALAND SPEC; SOUTH AFRICA SPEC
main81130-42660i201510-201812
main81130-42700i201510-201812
main81145-42680i201510-201812
BRAZIL SPEC&HEAD LAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH; EGYPT SPEC&HEAD LAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH; HEAD LAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH
main81145-42690i201510-201810
main81130-42530i201212-201305
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81130-42531i201305-201308
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81130-42532i201308-201510
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81130-42540i201212-201305
*334&HEADLAMP LEVELING DEVICE-WITH(MANUAL); DAYTIME RUNNING LIGHT SYSTEM-WITH; RUSSIA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); TAIWAN SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); UKURAINE SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81130-42541i201305-201308
*334&HEADLAMP LEVELING DEVICE-WITH(MANUAL); DAYTIME RUNNING LIGHT SYSTEM-WITH; RUSSIA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); TAIWAN SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); UKURAINE SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81130-42542i201308-201410
*334&HEADLAMP LEVELING DEVICE-WITH(MANUAL); RUSSIA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); TAIWAN SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); UKURAINE SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81130-42650i201510-201812
BRAZIL SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH; DAYTIME RUNNING LIGHT SYSTEM-WITH; EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH; TAIWAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH
main81145-42570supersedes 81130-42542i201212-201305
*334&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); HEADLAMP-DISCHARGE; RUSSIA SPEC&HEADLAMP-DISCHARGE & W(*AHB)&HEADLAMP LEVELING DEVICE-WITH(AUTO); RUSSIA SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); TAIWAN SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); UKURAINE SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
main81145-42571i201305-201308
*334&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); HEADLAMP-DISCHARGE; RUSSIA SPEC&HEADLAMP-DISCHARGE & W(*AHB)&HEADLAMP LEVELING DEVICE-WITH(AUTO); RUSSIA SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); TAIWAN SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); UKURAINE SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
main81145-42572i201308-201410
*334&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); RUSSIA SPEC&HEADLAMP-DISCHARGE & W(*AHB)&HEADLAMP LEVELING DEVICE-WITH(AUTO); RUSSIA SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); TAIWAN SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); UKURAINE SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
main81145-42580i201212-201305
L3 PACKAGE&HEADLAMP-DISCHARGE
main81145-42581i201305-201308
L3 PACKAGE&HEADLAMP-DISCHARGE
main81145-42582i201311-201510
AUSTRALIA SPEC&HEADLAMP-DISCHARGE & W(*AHB); HEADLAMP-DISCHARGE; NEW ZEALAND SPEC&HEADLAMP-DISCHARGE & W(*AHB)
main81145-42600i201212-201305
HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
main81145-42601i201305-201308
HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
main81145-42602i201308-201510
HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
81135CCOVER, HEADLAMP BACK, NO.1
main81135-42520×2i201212-201510
81175UNIT ASSY, HEADLAMP, LH
main81170-42520supersedes 81170-42542i201212-201305
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
main81170-42521i201305-201308
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
main81170-42522i201308-201510
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
main81170-42560supersedes 81170-42552i201212-201305
NEW ZEALAND SPEC; SOUTH AFRICA SPEC
main81170-42561i201305-201308
NEW ZEALAND SPEC; SOUTH AFRICA SPEC
main81170-42562i201308-201510
NEW ZEALAND SPEC; SOUTH AFRICA SPEC
main81170-42660i201510-201812
main81170-42700i201510-201812
main81185-42680i201510-201810
HEAD LAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH; MOROCCO SPEC&HEAD LAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH
main81185-42690i201510-201810
main81170-42530i201212-201305
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81170-42531i201305-201308
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81170-42532i201308-201510
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81170-42540i201212-201305
*334&HEADLAMP LEVELING DEVICE-WITH(MANUAL); DAYTIME RUNNING LIGHT SYSTEM-WITH; RUSSIA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); TAIWAN SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); UKURAINE SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81170-42541i201305-201308
*334&HEADLAMP LEVELING DEVICE-WITH(MANUAL); DAYTIME RUNNING LIGHT SYSTEM-WITH; RUSSIA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); TAIWAN SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); UKURAINE SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81170-42542i201308-201410
*334&HEADLAMP LEVELING DEVICE-WITH(MANUAL); RUSSIA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); TAIWAN SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL); UKURAINE SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81170-42650i201510-201812
BRAZIL SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH; DAYTIME RUNNING LIGHT SYSTEM-WITH; EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH; TAIWAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH
main81185-42570supersedes 81170-42542i201212-201305
*334&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); HEADLAMP-DISCHARGE; RUSSIA SPEC&HEADLAMP-DISCHARGE & W(*AHB)&HEADLAMP LEVELING DEVICE-WITH(AUTO); RUSSIA SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); TAIWAN SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); UKURAINE SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
main81185-42571i201305-201308
*334&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); HEADLAMP-DISCHARGE; RUSSIA SPEC&HEADLAMP-DISCHARGE & W(*AHB)&HEADLAMP LEVELING DEVICE-WITH(AUTO); RUSSIA SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); TAIWAN SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO); UKURAINE SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
main81185-42572i201410-201510
*334&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)&DAYTIME RUNNING LIGHTSYSTEM-WITH; HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)&DAYTIME RUNNING LIGHT SYSTEM-WITH; RUSSIA SPEC&HEADLAMP-DISCHARGE & W(*AHB)&HEADLAMP LEVELING DEVICE-WITH(AUTO)&DAYTIME RUNNING LIGHT SYSTEM-WITH; RUSSIA SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)&DAYTIME RUNNINGLIGHT SYSTEM-WITH; TAIWAN SPEC&HEADLAMP-DISCHARGE & W(*AHB)&HEADLAMP LEVELING DEVICE-WITH(AUTO)&DAYTIME RUNNING LIGHT SYSTEM-WITH; UKURAINE SPEC&HEADLAMP-DISCHARGE & W(*AHB)&HEADLAMP LEVELING DEVICE-WITH(AUTO)&DAYTIME RUNNING LIGHT SYSTEM-WITH; UKURAINE SPEC&HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)&DAYTIME RUNNING LIGHT SYSTEM-WITH
main81185-42580i201212-201305
L3 PACKAGE&HEADLAMP-DISCHARGE
main81185-42581i201305-201308
L3 PACKAGE&HEADLAMP-DISCHARGE
main81185-42582i201311-201510
AUSTRALIA SPEC&HEADLAMP-DISCHARGE & W(*AHB); HEADLAMP-DISCHARGE; NEW ZEALAND SPEC&HEADLAMP-DISCHARGE & W(*AHB)
main81185-42600i201212-201305
HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
main81185-42601i201305-201308
HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
main81185-42602i201308-201510
HEADLAMP-DISCHARGE&HEADLAMP LEVELING DEVICE-WITH(AUTO)
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
main81195-42010i201212-201510
main81195-42040i201510-201810
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
main81196-42010i201212-201510
main81196-42040i201510-201810
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15011×2i201212-201510
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
main90075-60028×2i201212-201510
81610FBULB(FOR CLEARANCE LAMP)
main90981-11064×2i201212-201510
12V 5W; 12V 5W,DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
9010506298
main90105-06298
9015950388
main90159-50388
9018905142
main90189-05142

13 parts on this diagram · 4 diagrams in section

HEADLAMP for Toyota RAV4

This section contains 19 genuine Toyota parts for the HEADLAMP system of the Toyota RAV4. Key components include: COMPUTER SUB-ASSY, HEADLAMP, RH NO.1, COMPUTER SUB-ASSY, HEADLAMP, LH NO.1, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.1).
