Toyota RAV4 — HEADLAMP

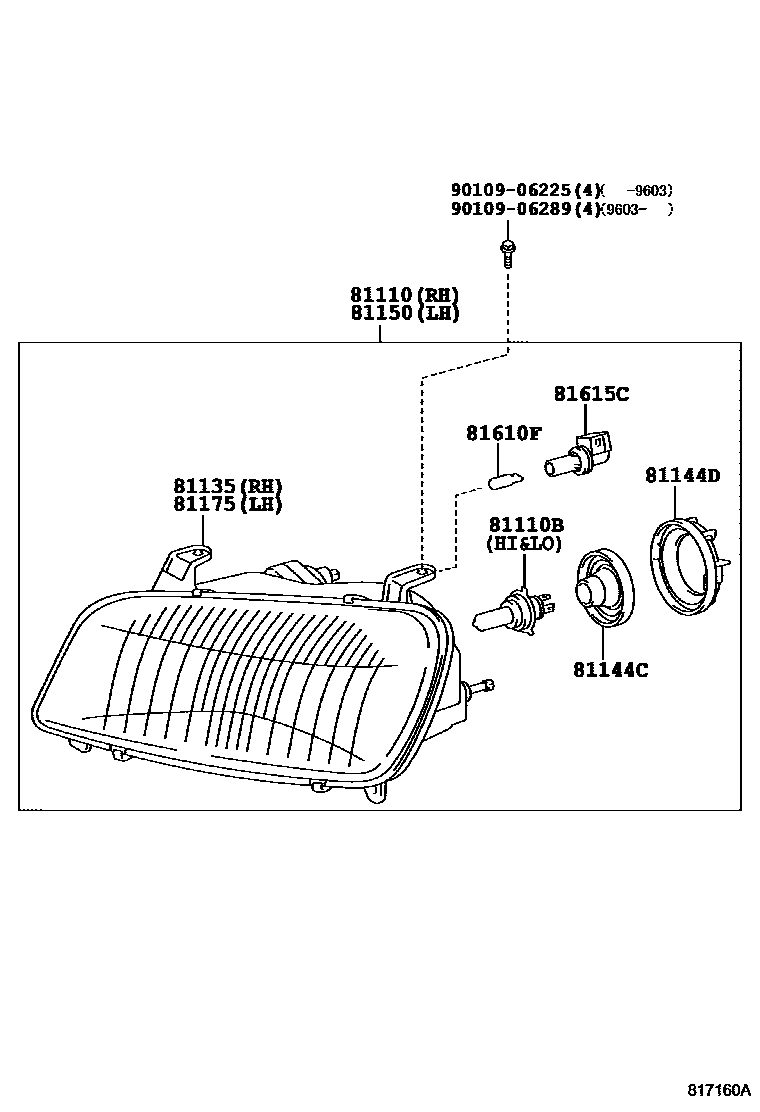

Parts diagram
81110HEADLAMP ASSY, RH
main81110-42010i199404-199508
main81110-42020i199404-199608
W(RH AIMING FOR LHD)
main81110-42021i199608-199709
W(RH AIMING FOR LHD)
main81110-42030i199404-199504
UNITED KINGDOM SPEC & W(RH AIMING & HEAD LAMP LEVELING) OR W(RH AIMING & LEVELING); W(HEAD LAMP LEVELING)
main81110-42031i199504-199608
W(HEAD LAMP LEVELING); W(RH AIMING & LEVELING)
main81110-42032i199608-199709
W(HEAD LAMP LEVELING); W(RH AIMING & LEVELING)
main81110-42040i199404-199502
W(HEAD LAMP LEVELING)
main81110-42041i199502-199608
W(HEAD LAMP LEVELING)
main81110-42042i199608-199709
W(HEAD LAMP LEVELING)
main81110-42050i199404-199608
W(YELLOW BULB)
main81110-42051i199608-199709
W(YELLOW BULB)
main81110-42070i199507-199608
SOUTH AFRICA SPEC
main81110-42071i199608-199709
SOUTH AFRICA SPEC
main81110-42080i199709
main81110-42100i199709
W(RH AIMING FOR LHD)
main81110-42110i199709
W(RH AIMING & LEVELING)
main81110-42120i199709
W(HEAD LAMP LEVELING)
81110BBULB(FOR HEADLAMP, NO.1)
main90080-81040×2i199709
12V 51W
main90981-13016×2i199404-199709
12V 60/55W,*HAL *YE
main90981-22003×2i199404-199709
12V 60/55W,*HAL *WH
81135UNIT ASSY, HEADLAMP, RH
main81105-42010i199404-199508
main81105-42020i199404-199608
W(RH AIMING FOR LHD)
main81105-42021i199608-199709
W(RH AIMING FOR LHD)
main81105-42030i199404-199504
UNITED KINGDOM SPEC & W(HEAD LAMP LEVELING & RH AMING) OR W(HEAD LAMP LEVELING & RH AMING); W(HEAD LAMP LEVELING)
main81105-42031i199504-199608
W(HEAD LAMP LEVELING); W(RH AIMING & LEVELING)
main81105-42032i199608-199709
W(HEAD LAMP LEVELING); W(RH AIMING & LEVELING)
main81105-42040i199404-199502
W(HEAD LAMP LEVELING)
main81105-42041i199502-199608
W(HEAD LAMP LEVELING)
main81105-42042i199608-199709
W(HEAD LAMP LEVELING)
main81105-42070i199508-199608
main81105-42071i199608-199709
SOUTH AFRICA SPEC
main81105-42080i199709
main81105-42100i199709
W(RH AIMING FOR LHD)
main81105-42110i199709
W(RH AIMING & LEVELING)
main81105-42120i199709
W(HEAD LAMP LEVELING)
81144CCOVER, HEADLAMP SOCKET
main81139-1E310×2i199404-199709
81144DCAP, HEADLAMP LOCKING
main81112-1E310×2i199404-199709
81150HEADLAMP ASSY, LH
main81150-42010i199404-199508
main81150-42020i199404-199608
W(RH AIMING FOR LHD)
main81150-42021i199608-199709
W(RH AIMING FOR LHD)
main81150-42030i199404-199504
UNITED KINGDOM SPEC & W(RH AIMING & HEAD LAMP LEVELING) OR W(RH AIMING & LEVELING); W(HEAD LAMP LEVELING)
main81150-42031i199504-199608
W(HEAD LAMP LEVELING); W(RH AIMING & LEVELING)
main81150-42032i199608-199709
W(HEAD LAMP LEVELING); W(RH AIMING & LEVELING)
main81150-42040i199404-199502
W(HEAD LAMP LEVELING)
main81150-42041i199502-199608
W(HEAD LAMP LEVELING)
main81150-42042i199608-199709
W(HEAD LAMP LEVELING)
main81150-42050i199404-199608
W(YELLOW BULB)
main81150-42051i199608-199709
W(YELLOW BULB)
main81150-42070i199508-199608
main81150-42071i199608-199709
SOUTH AFRICA SPEC
main81150-42080i199709
main81150-42100i199709
W(RH AIMING FOR LHD)
main81150-42110i199712
W(HEAD LAMP LEVELING)
main81150-42120i199709
W(HEAD LAMP LEVELING)
81175UNIT ASSY, HEADLAMP, LH
main81106-42010i199404-199508
main81106-42020i199404-199608
W(RH AIMING FOR LHD)
main81106-42021i199608-199709
W(RH AIMING FOR LHD)
main81106-42030i199404-199504
UNITED KINGDOM SPEC & W(RH AIMING & HEAD LAMP LEVELING) OR W(RH AIMING & LEVELING); W(HEAD LAMP LEVELING)
main81106-42031i199504-199608
W(HEAD LAMP LEVELING); W(RH AIMING & LEVELING)
main81106-42032i199608-199709
W(HEAD LAMP LEVELING); W(RH AIMING & LEVELING)
main81106-42040i199404-199502
W(HEAD LAMP LEVELING)
main81106-42041i199502-199608
W(HEAD LAMP LEVELING)
main81106-42042i199608-199709
W(HEAD LAMP LEVELING)
main81106-42070i199507-199608
SOUTH AFRICA SPEC
main81106-42071i199608-199709
SOUTH AFRICA SPEC
main81106-42080i199709
main81106-42100i199709
W(RH AIMING FOR LHD)
main81106-42110i199709
W(RH AIMING & LEVELING)
main81106-42120i199709
W(HEAD LAMP LEVELING)
81610FBULB(FOR CLEARANCE LAMP)
main99132-12050×2i199404-199709
12V 5W
81615CSOCKET & WIRE, CLEARANCE LAMP
main90075-99044×2i199404-199709
9010906225
main90109-06225
9010906289
main90109-06289

11 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota RAV4

This section contains 12 genuine Toyota parts for the HEADLAMP system of the Toyota RAV4. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
