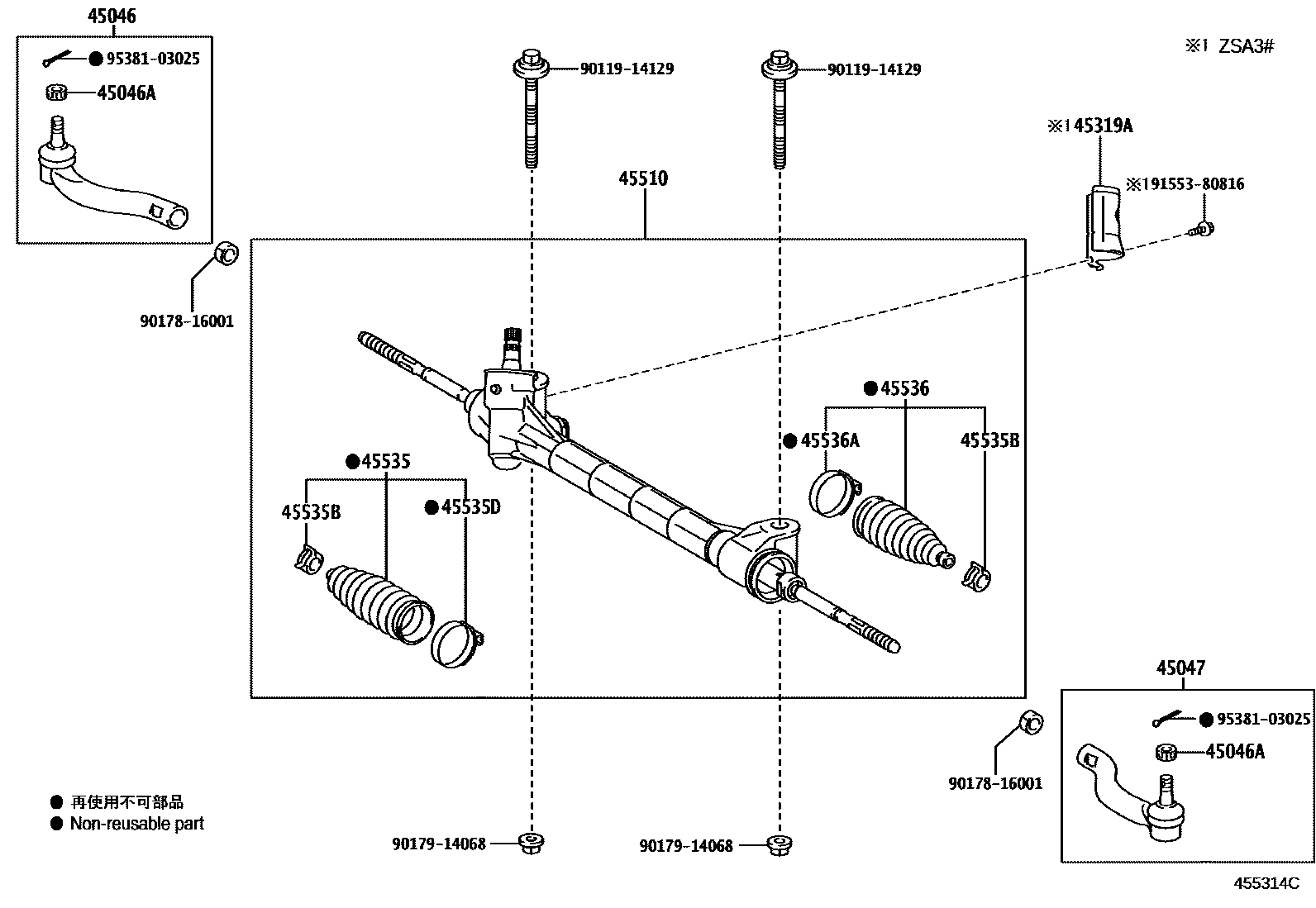

Toyota RAV4 — FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

45046END SUB-ASSY, TIE ROD, RH

main45046-49195iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

45047END SUB-ASSY, TIE ROD, LH

main45047-49135iACA33..G..GCC;ACA30,31,ALA30200511-201212

45319AINSULATOR, STEERING GEAR HEAT

main45319-42010iZSA3#..RHD200812-201212

45510GEAR ASSY, STEERING

main45510-42010iACA30,33,ALA30..RHD200511-200803

sub45510-42060

main45510-42020iGSA33200708-200803

sub45510-42070

main45510-42030iACA3#,ALA30..LHD200511-200803

sub45510-42080

main45510-42050iZSA3#..RHD200812-201212

sub45510-42200

main45510-42060iALA30..RHD..6FC..BTYPE;ACA30,33,38,ALA3#..RHD..(4FC,5F,6F)200804-201212

sub45510-42210

main45510-42070iGSA33200804-201212

sub45510-42220

main45510-42080iACA33..G..GCC;ACA30,31,ALA30..LHD200804-201212

sub45510-42230

main45510-42090iALA30..LHD..6FC200903-201002

sub45510-42240

45535BOOT, STEERING RACK, NO.1

main45535-49025iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42010iACA33..G..GCC;ACA30,31,ALA30200511-201212

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

45536BOOT, STEERING RACK, NO.2

main45535-49025iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-201212

9011914129

main90119-14129

9017816001

main90178-16001

9017914068

main90179-14068

9155380816

main91553-80816

9538103025

main95381-03025

15 parts on this diagram · 4 diagrams in section
