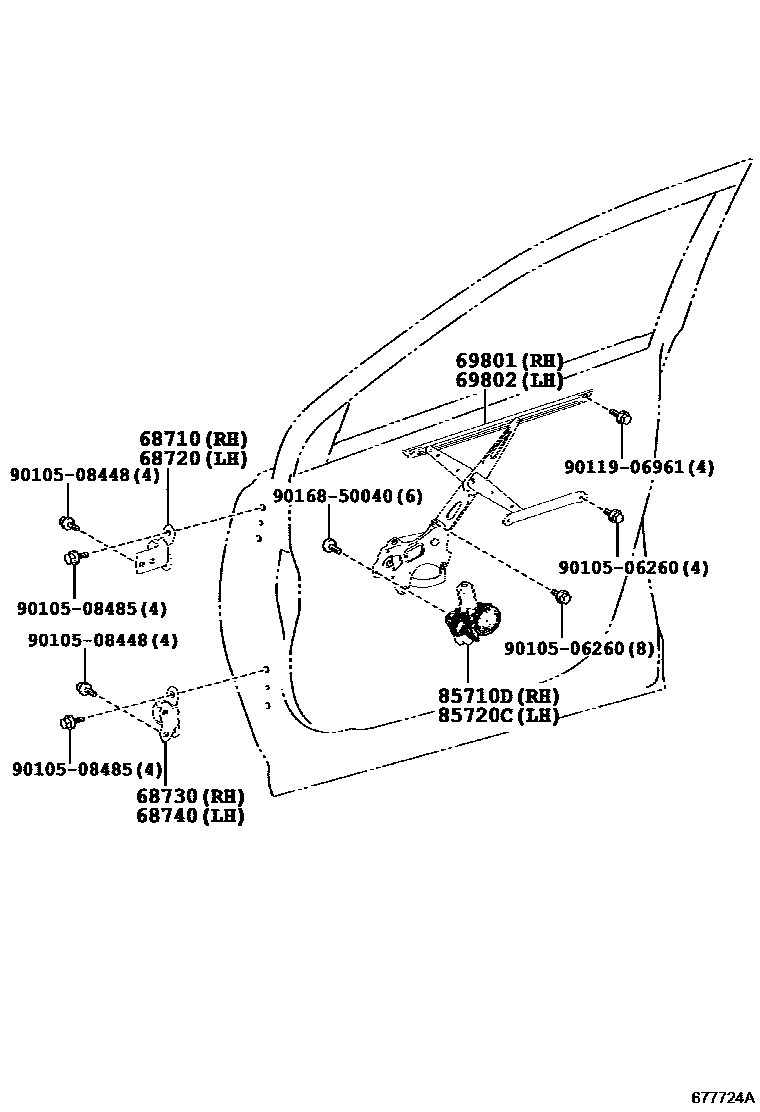

Toyota RAV4 — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i201510-201810

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i201212-201510

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i201212-201510

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i201212-201510

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30280i201510-201810

main69801-42040i201212-201301

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30280i201301-201510

main69802-42040i201212-201301

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180i201510-201812

main85710-42120i201212-201510

main85710-42130i201510-201812

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35140i201212-201510

main85720-42110i201212-201510

RUSSIA SPEC; UKURAINE SPEC

main85720-42120i201510-201810

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota RAV4

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota RAV4. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
