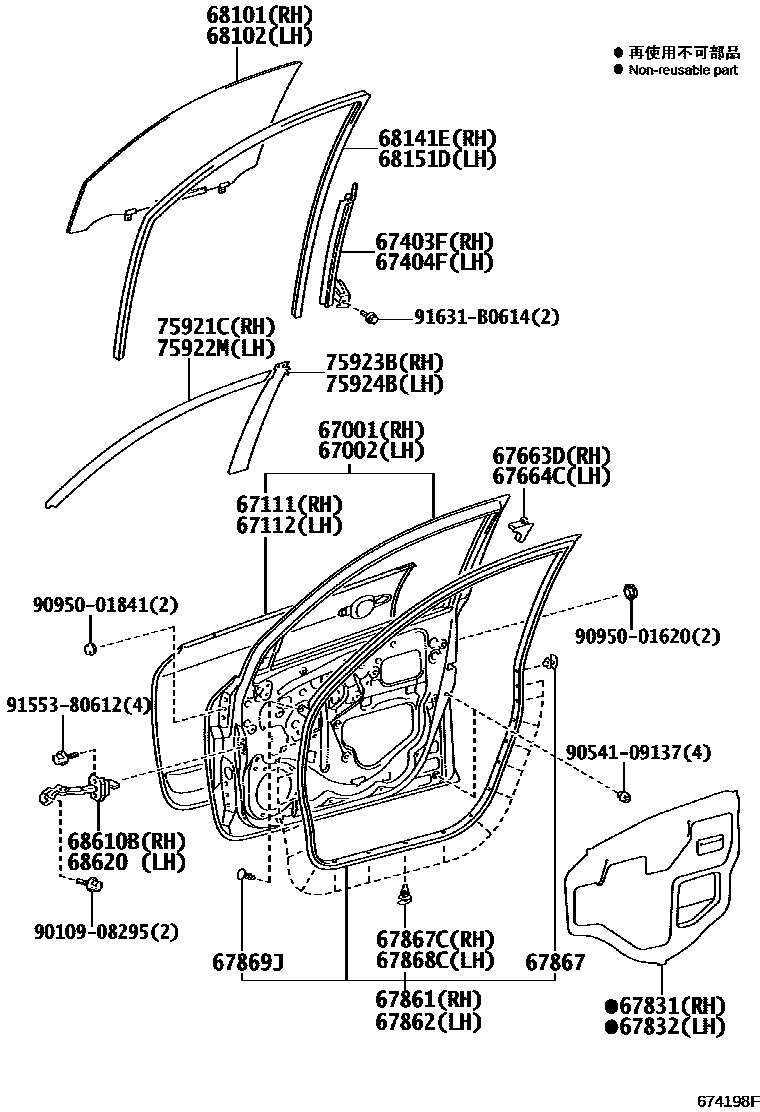

Toyota RAV4 — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
COLD AREA SPEC
67862WEATHERSTRIP, FRONT DOOR, LH
COLD AREA SPEC
COLD AREA SPEC
67867CLIP, DOOR WEATHERSTRIP
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869JCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCT,T=4.0,GREEN
*UVCT,T=4.0,GREEN,GREECE SPEC
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCT,T=4.0,GREEN
*UVCT,T=4.0,GREEN,GREECE SPEC
68141ERUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75923BTAPE, BLACK OUT, NO.2 RH
main75923-42010iALA35..ATYPE;ALA35..DCR..BTYPE;ALA30..X..DCR..BTYPE;ACA33,38,ALA30,GSA33,ZSA3#..(DCRE,DCRL,HTWC,HTWVM)..ATYPE200808-201212
75924BTAPE, BLACK OUT, NO.2 LH
9010908295
main90109-08295
9054109137
main90541-09137
9095001620
main90950-01620
9095001841
main90950-01841
9155380612
main91553-80612
91631B0614
main91631-B0614
32 parts on this diagram · 2 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota RAV4
This section contains 45 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota RAV4. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH.
