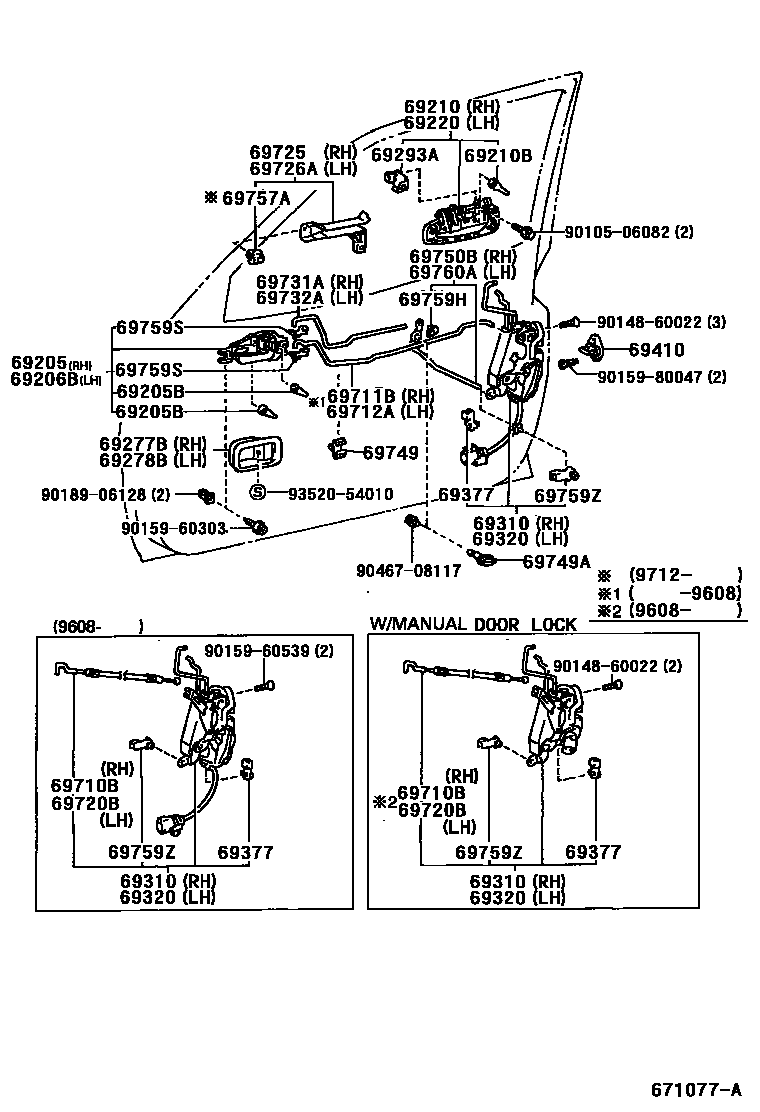

Toyota RAV4 — FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-42010-B0iSXA1#199404-199608

BLUISH GRAY,TRIM1#

main69205-42020-B0iSXA1#199608-199709

BLUISH GRAY,TRIM1#

main69205-42020-B1iSXA11199709-199808

SHADOW GRAY,TRIM10,12

main69205-42020-B1iSXA10199709

SHADOW GRAY,TRIM10,11

main69205-42020-B1iSXA11..ARL,EUR,GCC199808

SHADOW GRAY,TRIM1#,10,12

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018iSXA1#199404

D=8.5

main90541-04020iSXA1#199404

D=12.0

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-42010-B0iSXA1#199404-199608

BLUISH GRAY,TRIM1#

main69206-42020-B0iSXA1#199608-199709

BLUISH GRAY,TRIM1#

main69206-42020-B1iSXA11199709-199808

SHADOW GRAY,TRIM10,12

main69206-42020-B1iSXA10199709

SHADOW GRAY,TRIM10,11

main69206-42020-B1iSXA11..ARL,EUR,GCC199808

SHADOW GRAY,TRIM1#,10,12

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12160iSXA11199504-199709

main69210-20310iSXA10199404-199709

main69210-42010iSXA10199709-200008

main69210-42020-A0iSXA10..ARL,EUR199709-200005

WHITE,K59 ,056

main69210-42020-B0iSXA10..ARL,EUR199709-199808

SILVER ME,K61 ,199

main69210-42020-B1iSXA10..ARL,EUR199808-200005

SILVER GR.SF.,KA1 ,KA2 ,K98 ,1B9

main69210-42020-C0iSXA10..ARL,EUR199709-200005

BLACK,K62 ,202

main69210-42020-D1iSXA10..ARL,EUR199709-200005

RED,K65 ,3L5

main69210-42020-E0iSXA10..ARL,EUR199808-200005

LT.BROWN ME,KA1 ,4J6

main69210-42020-E0iSXA10..ARL,EUR199709-199808

LT.BROWN ME,K66 ,4J6

main69210-42020-G0iSXA10..ARL,EUR199808-200005

DK.GREEN M.M.,KA2 ,K67 ,6P3

main69210-42020-G0iSXA10..ARL,EUR199709-199808

DK.GREEN M.M.,K67 ,K68 ,6P3

main69210-42020-G1iSXA10..ARL,EUR199709-200005

GREEN ME.OP.,K69 ,6Q8

main69210-42020-H0iSXA10..LHD..EUR..HT199810-199811

MAGELLAN SPEC(BELGIUM),DEEP TEAL M.,K48

main69210-42020-J1iSXA10..ARL,EUR199709-200005

BLUE M.M.,K71 ,8L5

main69210-42030iSXA11199709-200008

main69210-42040-A1iSXA11..ARL,EUR199709-200005

WHITE,K59 ,056

main69210-42040-A2iSXA1#..ARL..HT199901-199902

MAX CAMPAIGN(AUSTRALIA),WHITE PM.,K18

main69210-42040-A2iSXA11..ARL199804-199805

WORLD CUP CELEBRATION MODEL,WHITE PEARL MICA,K18

main69210-42040-B0iSXA11..ARL,EUR199709-199808

SILVER ME,K61 ,199

main69210-42040-B1iSXA11..ARL,EUR199808-200005

SILVER GR.SF.,K98 ,1B9

main69210-42040-C0iSXA11..ARL,EUR199808-200005

BLACK,K99 ,202

main69210-42040-C0iSXA11..ARL,EUR199709-199808

BLACK,K63 ,202

main69210-42040-D1iSXA11..ARL,EUR199709-200005

RED,K65 ,3L5

main69210-42040-E0iSXA11..ARL,EUR199808-200005

LT.BROWN ME,KA1 ,4J6

main69210-42040-E0iSXA11..ARL,EUR199709-199808

LT.BROWN ME,K66 ,4J6

main69210-42040-G0iSXA11..ARL,EUR199808-200005

DK.GREEN M.M.,KA2 ,6P3

main69210-42040-G0iSXA11..ARL,EUR199709-199808

DK.GREEN M.M.,K68 ,6P3

main69210-42040-G1iSXA11..ARL,EUR199709-200005

GREEN ME.OP.,K69 ,6Q8

main69210-42040-J1iSXA11..ARL199804-199805

WORLD CUP CELEBRATION MODEL,BLUE MICA M.,KA4

main69210-42040-J1iSXA11..ARL,EUR199709-200005

BLUE M.M.,K71 ,8L5

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iSXA11199504

main90541-04018iSXA10199404

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12160iSXA11199504-199709

main69220-20330iSXA10199404-199709

main69220-42010iSXA10199709-200008

main69220-42020-A0iSXA10..ARL,EUR199709-200005

WHITE,K59 ,056

main69220-42020-B0iSXA10..ARL,EUR199709-199808

SILVER ME,K61 ,199

main69220-42020-B1iSXA10..ARL,EUR199808-200005

SILVER GR.SF.,KA1 ,KA2 ,K98 ,1B9

main69220-42020-C0iSXA10..ARL,EUR199709-200005

BLACK,K62 ,202

main69220-42020-D1iSXA10..ARL,EUR199709-200005

RED,K65 ,3L5

main69220-42020-E0iSXA10..ARL,EUR199808-200005

LT.BROWN ME,KA1 ,4J6

main69220-42020-E0iSXA10..ARL,EUR199709-199808

LT.BROWN ME,K66 ,4J6

main69220-42020-G0iSXA10..ARL,EUR199709-199808

DK.GREEN M.M.,K67 ,K68 ,6P3

main69220-42020-G0iSXA10..ARL,EUR199808-200005

DK.GREEN M.M.,KA2 ,K67 ,6P3

main69220-42020-G1iSXA10..ARL,EUR199709-200005

GREEN ME.OP.,K69 ,6Q8

main69220-42020-H0iSXA10..LHD..EUR..HT199810-199811

MAGELLAN SPEC(BELGIUM),DEEP TEAL M.,K48

main69220-42020-J1iSXA10..ARL,EUR199709-200005

BLUE M.M.,K71 ,8L5

main69220-42030iSXA11199709-200008

main69220-42040-A1iSXA11..ARL,EUR199709-200005

WHITE,K59 ,056

main69220-42040-A2iSXA1#..ARL..HT199901-199902

MAX CAMPAIGN(AUSTRALIA),WHITE PM.,K18

main69220-42040-A2iSXA11..ARL199804-199805

WORLD CUP CELEBRATION MODEL,WHITE PEARL MICA,K18

main69220-42040-B0iSXA11..ARL,EUR199709-199808

SILVER ME,K61 ,199

main69220-42040-B1iSXA11..ARL,EUR199808-200005

SILVER GR.SF.,K98 ,1B9

main69220-42040-C0iSXA11..ARL,EUR199808-200005

BLACK,K99 ,202

main69220-42040-C0iSXA11..ARL,EUR199709-199808

BLACK,K63 ,202

main69220-42040-D1iSXA11..ARL,EUR199709-200005

RED,K65 ,3L5

main69220-42040-E0iSXA11..ARL,EUR199808-200005

LT.BROWN ME,KA1 ,4J6

main69220-42040-E0iSXA11..ARL,EUR199709-199808

LT.BROWN ME,K66 ,4J6

main69220-42040-G0iSXA11..ARL,EUR199808-200005

DK.GREEN M.M.,KA2 ,6P3

main69220-42040-G0iSXA11..ARL,EUR199709-199808

DK.GREEN M.M.,K68 ,6P3

main69220-42040-G1iSXA11..ARL,EUR199709-200005

GREEN ME.OP.,K69 ,6Q8

main69220-42040-J1iSXA11..ARL,EUR199709-200005

BLUE M.M.,K71 ,8L5

main69220-42040-J1iSXA11..ARL199804-199805

WORLD CUP CELEBRATION MODEL,BLUE MICA M.,KA4

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22070-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

main69277-22070-B1iSXA11199709-199808

SHADOW GRAY,TRIM10,12

main69277-22070-B1iSXA10199709

SHADOW GRAY,TRIM10,11

main69277-22070-B1iSXA11..ARL,EUR,GCC199808

SHADOW GRAY,TRIM1#,10,12

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22030-B0iSXA1#199404-199709

BLUISH GRAY,TRIM1#

main69278-22030-B1iSXA11199709-199808

SHADOW GRAY,TRIM10,12

main69278-22030-B1iSXA10199709

SHADOW GRAY,TRIM10,11

main69278-22030-B1iSXA11..ARL,EUR,GCC199808

SHADOW GRAY,TRIM1#,10,12

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-10020iSXA10199404

LH

main69293-12030iSXA1#199404

RH

main69293-12040iSXA11199504

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-42010iSXA10..ARL199404-199608

W(POWER DOOR LOCK)

main69030-42020iSXA10..LHD199404-199608

W(POWER DOOR LOCK)

main69030-42030iSXA11..RHD..(EUR,GEN)199504-199608

W(POWER DOOR LOCK)

main69030-42040iSXA11..LHD199504-199608

W(POWER DOOR LOCK)

main69030-42070iSXA10..RHD199608-199706

W(POWER DOOR LOCK)

main69030-42071iSXA10..RHD199706-199709

W(POWER DOOR LOCK)

main69030-42080iSXA10..LHD199608-199706

W(POWER DOOR LOCK)

main69030-42081iSXA10..LHD199706-199709

W(POWER DOOR LOCK)

main69030-42090iSXA11..RHD199608-199706

W(POWER DOOR LOCK)

main69030-42091iSXA11..RHD199706-199709

W(POWER DOOR LOCK)

main69030-42100iSXA11..LHD199608-199706

W(POWER DOOR LOCK)

main69030-42101iSXA11..LHD199706-199709

W(POWER DOOR LOCK)

main69030-42131iSXA10199709

W(POWER DOOR LOCK)

main69030-42141iSXA11199709

W(POWER DOOR LOCK)

main69310-42010iSXA10..EUR,GCC,GEN199404-199608

main69310-42020iSXA11..EUR,GEN199504-199608

main69310-42050iSXA10..EUR,GCC,GEN199608-199706

main69310-42051iSXA10..EUR..CVT199706-199709

main69310-42060iSXA11..EUR,GEN199608-199706

main69310-42061iSXA11..EUR,GEN199706-199709

69320LOCK ASSY, FRONT DOOR, LH

main69040-42010iSXA10..ARL199404-199608

W(POWER DOOR LOCK)

main69040-42020iSXA10..LHD199404-199608

W(POWER DOOR LOCK)

main69040-42030iSXA11..ARL199504-199608

W(POWER DOOR LOCK)

main69040-42040iSXA11..LHD199504-199608

W(POWER DOOR LOCK)

main69040-42070iSXA10..RHD..(EUR,GEN)199608-199706

W(POWER DOOR LOCK)

main69040-42071iSXA10..RHD..(EUR,GEN)199706-199709

W(POWER DOOR LOCK)

main69040-42080iSXA10..LHD199608-199706

W(POWER DOOR LOCK)

main69040-42081iSXA10..ARL,GCC;SXA10..LHD..(EUR,GEN)199706-199709

W(POWER DOOR LOCK)

main69040-42090iSXA11..RHD..(EUR,GEN)199608-199706

W(POWER DOOR LOCK)

main69040-42091iSXA11..RHD..(EUR,GEN)199706-199709

W(POWER DOOR LOCK)

main69040-42100iSXA11..ARL199608-199706

W(POWER DOOR LOCK)

main69040-42101iSXA11..ARL;SXA11..LHD199706-199709

W(POWER DOOR LOCK)

main69040-42131iSXA10199709

W(POWER DOOR LOCK)

main69040-42151iSXA11199709

W(POWER DOOR LOCK)

main69320-42010iSXA10199404-199608

main69320-42020iSXA11..EUR,GEN199504-199608

main69320-42060iSXA10..EUR,GCC,GEN199608-199706

main69320-42061iSXA10..EUR..CVT199706-199709

main69320-42090iSXA11..EUR,GEN199608-199706

main69320-42091iSXA11..MTM..GCC;SXA11..ATM..(GCC,GEN)199706-199709

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24010iSXA11199404-199709

RH-WHITE

main69759-24020iSXA1#199404-199709

LH-BLUE

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070iSXA1#199404-199709

main69410-87001iSXA1#199709

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-42010iSXA10199608-199709

main69710-42020iSXA11..MTM..GCC;SXA11..ATM..(GCC,GEN)199608-199709

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-42010iSXA10199404-199608

main69711-42020iSXA11199504-199511

main69711-42021iSXA11199511-199608

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-42010iSXA10199404-199608

main69712-42020iSXA11199504-199511

main69712-42021iSXA11199511-199608

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-42010iSXA10..CVT199608-199709

main69710-42020iSXA11..MTM..GCC;SXA11..ATM..(GCC,GEN)199608-199709

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-42010iSXA10199404-199712

main69725-42011iSXA10199712

main69725-42020iSXA11199504-199712

main69725-42021iSXA11199712

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-42010iSXA10199404-199712

main69726-42011iSXA10199712

main69726-42020iSXA11199504-199712

main69726-42021iSXA11199712

69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH

main69731-42010iSXA10199404-199510

main69731-42011iSXA10199510

main69731-42020iSXA11199504-199511

main69731-42040iSXA11199511

69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH

main69732-42010iSXA10199404-199510

main69732-42011iSXA10199510

main69732-42020iSXA11199504-199511

main69732-42040iSXA11199511

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12030iSXA10199408

main69749-12080iSXA10199404-199408

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-32030iSXA1#199404-199608

main90467-06106iSXA1#199608

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-42010iSXA10199404

main69750-42020iSXA11199504

69757ACLAMP, DOOR LOCK CONTROL BELLCRANK

main69757-42010iSXA1#199712

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20410iSXA1#199709

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iSXA1#199404

LH-PINK

main69759-24070iSXA1#199404

RH-YELLOW

69759ZSNAP, DOOR LOCK CONTROL LINK

main69759-20040iSXA10199404-199412

LH-YELLOW

main69759-20050iSXA10199404-199412

RH-BROWN

main69759-24050iSXA1#199412-199709

LH-GREEN

main69759-24060iSXA1#199412-199709

RH-GRAY

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-42010iSXA10199404

main69760-42020iSXA11199504

9010506082

main90105-06082

9014860022

main90148-60022

9015960303

main90159-60303

9015960539

main90159-60539

9015980047

main90159-80047

9018906128

main90189-06128

9046708117

main90467-08117

9352054010

main93520-54010

37 parts on this diagram · 1 diagram in section
