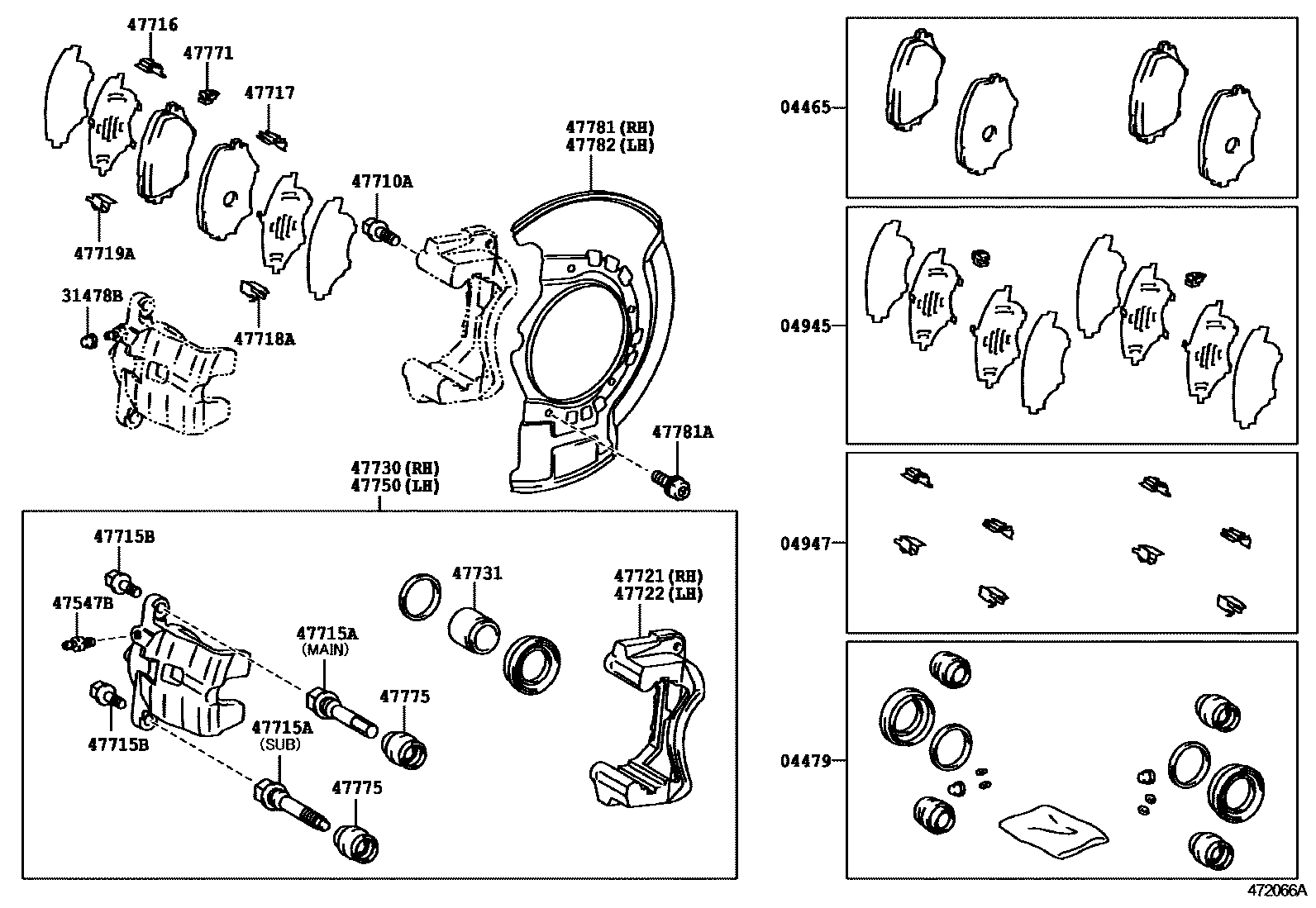

Toyota RAV4 — FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42070iACA2#..ARL,GCC,GEN200005-200105

MARK SUMITOMO PS534

sub04465-42071

main04465-42071iACA2#..ARL,GCC,GEN200105-200307

MARK SUMITOMO PS534

sub04465-42130

main04465-42110iACA2#,CLA2#,ZCA2#..EUR200005-200307

MARK NBK PN532H

main04465-42110iACA2#..RHD..GEN200008-200307

MARK NBK PN532H,SOUTH AFRICA SPEC

main04465-42110iACA20,21,CLA2#,ZCA2#..LHD..EUR200307-200511

MARK NBK PN532H,CHINA OR GERMANY SPEC

main04465-42130iACA2#,CLA2#,ZCA2#200307-200511

MARK SUMITOMO PS534

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-42040iACA2#,CLA2#,ZCA2#200005-200307

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-42040iACA2#,CLA2#,ZCA2#200005-200307

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42040iACA2#,CLA2#,ZCA2#200005-200307

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iACA2#,CLA2#,ZCA2#200005-200307

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iACA2#,CLA2#,ZCA2#200005-200307

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iACA2#,CLA2#,ZCA2#200005-200511

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22130iACA2#,CLA2#,ZCA2#200005-200307

SUB PIN SIDE

main47715-60010iACA2#,CLA2#,ZCA2#200005-200307

MAIN PIN SIDE

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08304iACA2#,CLA2#,ZCA2#200005-200307

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-42030iACA2#,CLA2#,ZCA2#200005-200307

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-42030iACA2#,CLA2#,ZCA2#200005-200307

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-42030iACA2#,CLA2#,ZCA2#200005-200307

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-42030iACA2#,CLA2#,ZCA2#200005-200307

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42040iACA2#,CLA2#,ZCA2#200005-200307

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-42040iACA2#,CLA2#,ZCA2#200005-200307

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42040iACA2#,CLA2#,ZCA2#200005-200307

47731PISTON, FRONT DISC BRAKE

main47731-22090iACA2#,CLA2#,ZCA2#200005-200307

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42040iACA2#,CLA2#,ZCA2#200005-200307

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22040iACA2#,CLA2#,ZCA2#200307

main47771-22070iACA2#,CLA2#,ZCA2#200005-200307

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30040iACA2#,CLA2#,ZCA2#200005-200307

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42030iACA2#,CLA2#,ZCA2#200005-200511

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iACA2#,CLA2#,ZCA2#200005-200511

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42030iACA2#,CLA2#,ZCA2#200005-200511

23 parts on this diagram · 1 diagram in section
