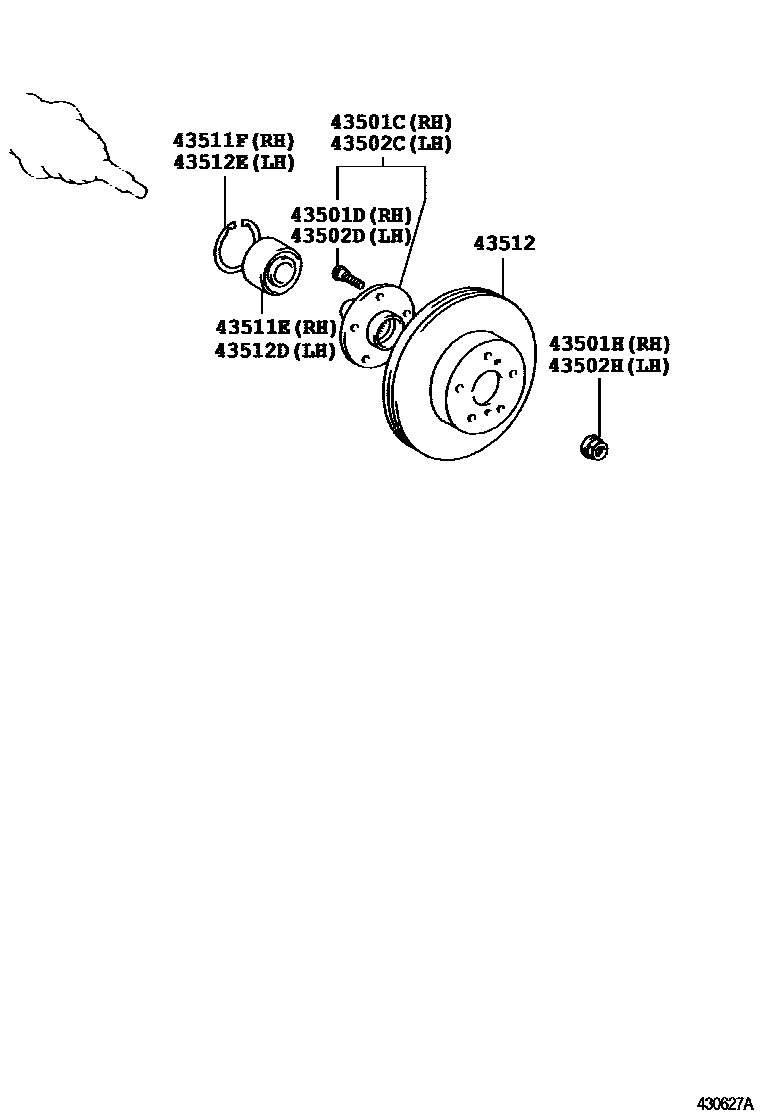

Toyota RAV4 — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-42020iACA2#,CLA2#,ZCA2#200005-200307

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070iACA2#,CLA2#,ZCA2#200005-200307

sub90942-02049

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iACA2#,CLA2#,ZCA2#200005-200307

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-42020iACA2#,CLA2#,ZCA2#200005-200307

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070iACA2#,CLA2#,ZCA2#200005-200307

sub90942-02049

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iACA2#,CLA2#,ZCA2#200005-200307

43511EBEARING (FOR FRONT AXLE HUB RH)

main90369-43009iACA2#,CLA2#,ZCA2#200005-200307

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001iACA2#,CLA2#,ZCA2#200005-200307

43512DISC, FRONT

main43512-42030iACA2#,CLA2#,ZCA2#200005-200407

sub43512-42031

main43512-42031iACA2#,CLA2#,ZCA2#200408-200511

sub43512-42032

43512DBEARING (FOR FRONT AXLE HUB LH)

main90369-43009iACA2#,CLA2#,ZCA2#200005-200307

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001iACA2#,CLA2#,ZCA2#200005-200307

11 parts on this diagram · 1 diagram in section
