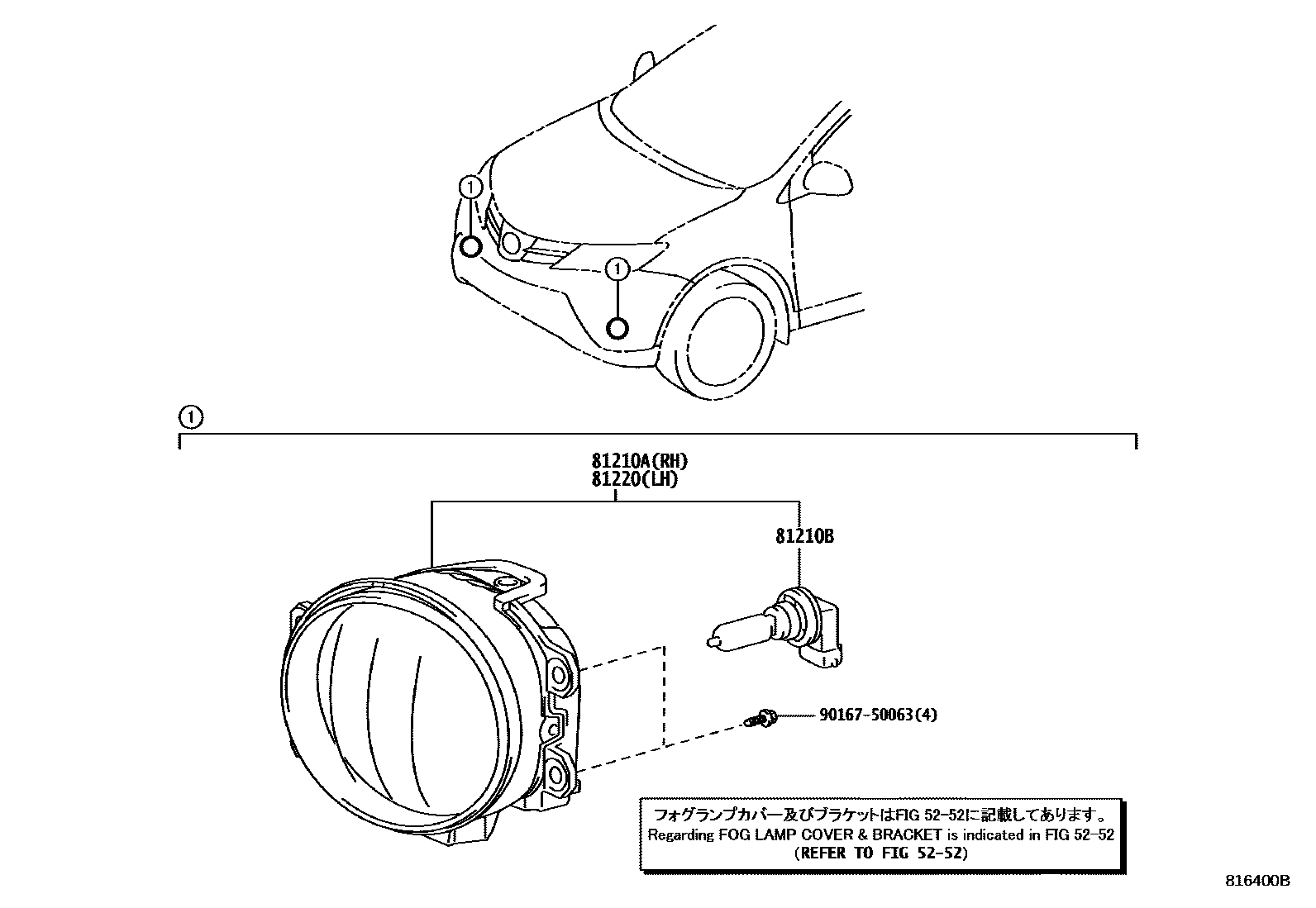

Toyota RAV4 — FOG LAMP

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-47010i201510-201810

FRONT FOG LAMP-WITH(CHROM)

main81210-60180i201212-201411

FRONT FOG LAMP-WITH

main81210-60200i201412-201510

FRONT FOG LAMP-WITH; SOUTH AFRICA SPEC

81210BBULB, FOG LAMP

main90981-13090×2i201510-201810

12V 19W; 12V 19W,FRONT FOG LAMP-WITH(CHROM)

81220LAMP ASSY, FOG, LH

main81220-47010i201510-201812

FRONT FOG LAMP-WITH(CHROM)

main81220-60100i201212-201411

FRONT FOG LAMP-WITH

main81220-60120i201412-201510

FRONT FOG LAMP-WITH; SOUTH AFRICA SPEC

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota RAV4

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota RAV4. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, LAMP ASSY, FOG, LH.
