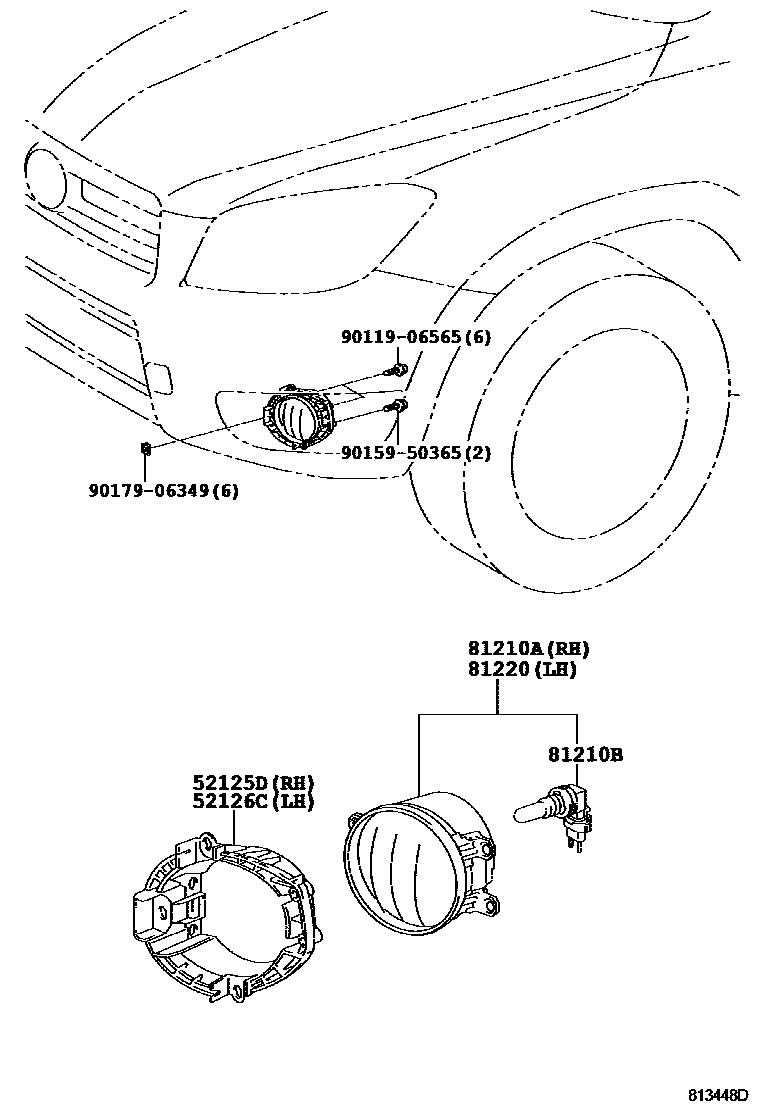

Toyota RAV4 — FOG LAMP

0001 1 0003 1CHINA SPEC 0004 1

52125DBRACKET, FOG LAMP MOUNTING, RH

main52125-42020iACA3#,ALA30,GSA33..G200511-200812

52126CBRACKET, FOG LAMP MOUNTING, LH

main52126-42020iACA3#,ALA30,GSA33..G200511-200812

81210ALAMP ASSY, FOG, RH

main81210-0D040iACA3#,ALA30..G200511-200611

sub81210-0D041

main81210-0D041iACA3#,ALA30,GSA33..G200612-201004

sub81210-0D042

main81210-0D042iACA3#,ALA30,GSA33,ZSA30..G..ATYPE201005-201212

main81210-0W050iALA3#,ZSA3#..BTYPE201002-201212

81210BBULB, FOG LAMP

main90981-13075iACA30,33,38,ALA30..G..(DCR,DCRL,HTWC)200612-200812

12V 55W,HALOGEN,PHILLIPS

main90981-13075iACA3#,ALA30,GSA33..G200511-201212

12V 55W,HALOGEN,PHILIPS

main90981-13081iACA3#,ALA30,GSA33..G200511-201212

12V 55W,HALOGEN,OSRAM

81220LAMP ASSY, FOG, LH

main81220-0D040iACA3#,ALA30..G200511-200611

sub81220-0D041

main81220-0D041iACA3#,ALA30,GSA33..G200612-201004

sub81220-0D042

main81220-0D042iACA3#,ALA30,GSA33,ZSA30..G..ATYPE201005-201212

main81220-0W040iALA3#,ZSA3#..BTYPE201002-201212

9011906565

main90119-06565

9015950365

main90159-50365

9017906349

main90179-06349

8 parts on this diagram · 3 diagrams in section
