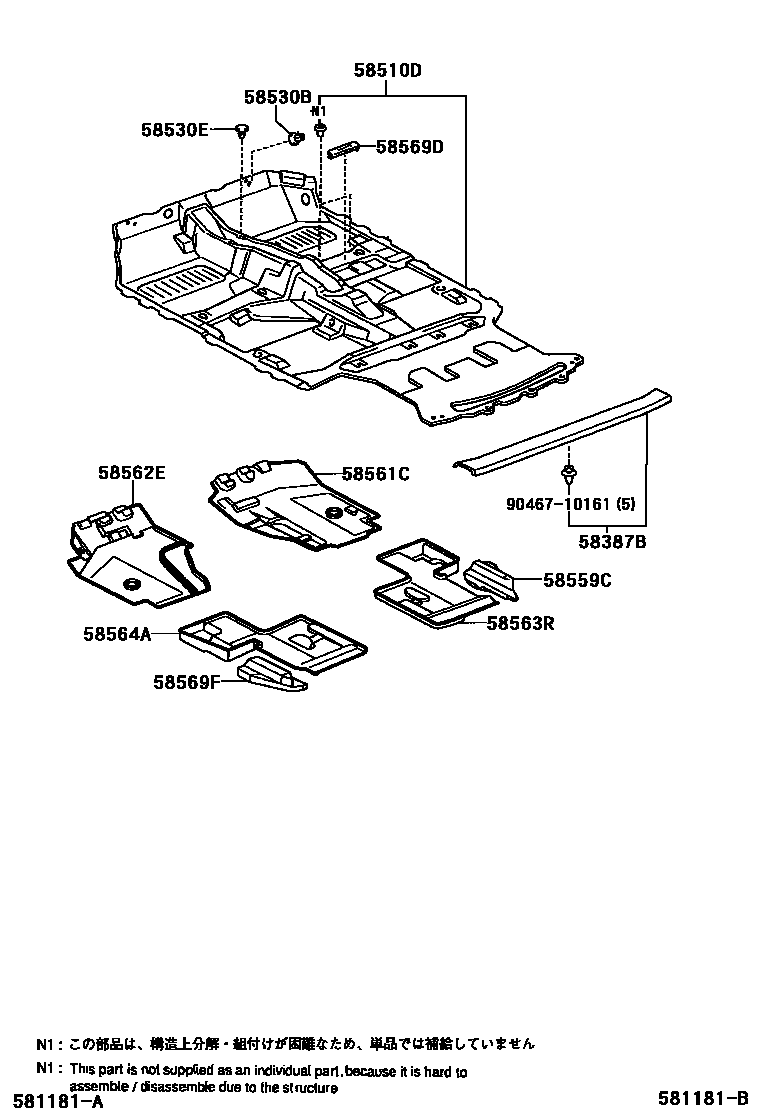

Toyota RAV4 — FLOOR MAT & SILENCER PAD

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-42020-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub58387-42020

main58387-42020-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub58387-42020

main58387-42020-B1iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

sub58387-42020

58510DCARPET ASSY, FLOOR, FRONT

main58510-42410-B0iACA21..ARL200005-200307

BLUISH GRAY,TRIM1#

main58510-42410-B0iACA21..ARL200005-200307

BLUISH GRAY,TRIM1#,15

main58510-42410-B0iCLA21..RHD;ACA21..RHD..GEN200008-200307

BLUISH GRAY,TRIM15

main58510-42410-J0iACA21,CLA21,ZCA26..RHD..(EUR,GEN)200005-200307

DARK BLUE,TRIM14

main58510-42420-B0iACA21..ATM..GCC;ACA21,ZCA26..LHD..MTM..(EUR,GCC)200005-200307

BLUISH GRAY,TRIM1#,15

main58510-42420-B0iCLA21..LHD;ACA21..LHD..GEN200008-200307

BLUISH GRAY,TRIM15

main58510-42420-J0iACA21..LHD..ATM..(GCC,GEN);ACA21,CLA21,ZCA26..LHD..MTM200005-200307

DARK BLUE,TRIM14

main58510-42430-B0iCLA21..LHD200105-200307

W(REAR HEATER DUCT),BLUISH GRAY,TRIM15

main58510-42430-B0iACA21,ZCA26..LHD..MTM..EUR200005-200307

W(REAR HEATER DUCT),BLUISH GRAY,TRIM1#,15

main58510-42430-J0iACA21,CLA21,ZCA26..LHD..MTM..EUR200005-200307

W(REAR HEATER DUCT),DARK BLUE,TRIM14

main58510-42440-B0iACA21..LHD..ATM..EUR200005-200307

BLUISH GRAY,TRIM1#,15

sub58510-42420

main58510-42440-J0iACA21..LHD..ATM..EUR200005-200307

DARK BLUE,TRIM14

sub58510-42420

main58510-42450-B0iACA21..LHD..ATM..EUR200005-200307

W(REAR HEATER DUCT),BLUISH GRAY,TRIM1#,15

sub58510-42430

main58510-42450-J0iACA21..LHD..ATM..EUR200005-200307

W(REAR HEATER DUCT),DARK BLUE,TRIM14

sub58510-42430

main58510-42500-B0iCLA20..RHD;ACA20..RHD..(ARL,GEN)200005-200307

BLUISH GRAY,TRIM15

main58510-42500-B0iCLA20..RHD;ACA20..RHD..(ARL,GEN)200005-200307

BLUISH GRAY,TRIM1#,15

main58510-42500-J0iACA20,CLA20,ZCA25..RHD200005-200307

DARK BLUE,TRIM14

main58510-42510-B0iCLA20..LHD;ACA20..LHD..GEN200008-200307

BLUISH GRAY,TRIM15

main58510-42510-B0iACA20..ATM..GCC;ACA20,ZCA25..LHD..MTM..(EUR,GCC)200005-200307

BLUISH GRAY,TRIM1#,15

main58510-42510-J0iACA20..ATM..GCC;ACA20,CLA20,ZCA25..LHD..MTM200005-200307

DARK BLUE,TRIM14

main58510-42520-B0iACA20,ZCA25..LHD..MTM..EUR200005-200307

W(REAR HEATER DUCT),BLUISH GRAY,TRIM1#,15

main58510-42520-B0iCLA20..LHD200105-200307

W(REAR HEATER DUCT),BLUISH GRAY,TRIM15

main58510-42520-J0iACA20,CLA20,ZCA25..LHD..MTM..EUR200005-200307

W(REAR HEATER DUCT),DARK BLUE,TRIM14

main58510-42530-B0iACA20..LHD..ATM..EUR200005-200307

BLUISH GRAY,TRIM1#,15

sub58510-42510

main58510-42530-J0iACA20..LHD..ATM..EUR200005-200307

DARK BLUE,TRIM14

sub58510-42510

main58510-42540-B0iACA20..LHD..ATM..EUR200005-200307

W(REAR HEATER DUCT),BLUISH GRAY,TRIM1#,15

sub58510-42520

main58510-42540-J0iACA20..LHD..ATM..EUR200005-200307

W(REAR HEATER DUCT),DARK BLUE,TRIM14

sub58510-42520

main58510-42620-B0iACA21,23,CLA21,ZCA26..RHD200307-200511

GRAY,TRIM1#

main58510-42630-B0iACA21,CLA21,ZCA26..RHD..EUR200307-200511

W(REAR HEATER DUCT),GRAY,TRIM1#

main58510-42640-B0iACA21,CLA21,ZCA26..LHD200307-200511

GRAY,TRIM1#

main58510-42650-B0iACA21,CLA21,ZCA26..LHD..EUR200307-200511

W(REAR HEATER DUCT),GRAY,TRIM1#

main58510-42660-B0iACA21..LHD..ATM..EUR200307-200511

W(KICK DOWN SWITCH),GRAY,TRIM1#

sub58510-42640

main58510-42670-B0iACA21..LHD..ATM..EUR200307-200511

W(KICK DOWN SWITCH & REAR HEATER DUCT),GRAY,TRIM1#

sub58510-42650

main58510-42720-B0iACA20,22,CLA20,ZCA25..RHD200307-200511

GRAY,TRIM1#

main58510-42730-B0iACA20,CLA20,ZCA25..RHD200307-200511

W(REAR HEATER DUCT),GRAY,TRIM1#

main58510-42740-B0iACA20,CLA20,ZCA25..LHD200307-200511

GRAY,TRIM1#

main58510-42750-B0iACA20,CLA20,ZCA25..LHD..EUR200307-200511

W(REAR HEATER DUCT),GRAY,TRIM1#

main58510-42760-B0iACA20..LHD..ATM..EUR200307-200511

W(KICK DOWN SWITCH),GRAY,TRIM1#

sub58510-42740

main58510-42770-B0iACA20..LHD..ATM..EUR200307-200511

W(KICK DOWN SWITCH & REAR HEATER DUCT),GRAY,TRIM1#

sub58510-42750

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09167iACA2#,CLA2#,ZCA2#200005-200307

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-09118iACA2#,CLA2#,ZCA2#200005-200307

58559CPAD, FRONT FLOOR SIDE, RH

main58559-42010iACA20,CLA20,ZCA25200005-200307

58561CSILENCER, FRONT FLOOR, NO.1

main58561-42010iACA2#,CLA2#,ZCA2#200005-200307

sub58561-42011

main58561-42020iACA20,21,CLA2#,ZCA2#..EUR200005-200307

W(REAR HEATER DUCT)

sub58561-42021

58562ESILENCER, FRONT FLOOR, NO.2

main58562-42010iACA2#,CLA2#,ZCA2#200005-200306

sub58562-42050

main58562-42020iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200306

W(REAR HEATER DUCT)

sub58562-42060

main58562-42050iACA2#,CLA2#,ZCA2#200306-200307

sub58562-42051

main58562-42060iACA20,21,CLA2#,ZCA2#..RHD..EUR200306-200307

W(REAR HEATER DUCT)

sub58562-42061

58563RSILENCER, FRONT FLOOR, NO.3

main58563-42010iACA21,CLA21,ZCA26200005-200307

sub58563-42011

main58563-42020iACA20,CLA20,ZCA25200005-200307

sub58563-42021

main58563-42030iACA21,23,CLA21,ZCA26200307

sub58563-42031

58564ASILENCER, FRONT FLOOR, NO.4

main58564-42010iACA21,CLA21,ZCA26200005-200307

sub58564-42011

main58564-42020iACA20,CLA20,ZCA25200005-200307

sub58564-42021

main58564-42030iACA21,23,CLA21,ZCA26200307

sub58564-42031

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-44010-B2iACA21..ARL200005-200307

SHADOW GRAY,TRIM14,15

sub58569-44010

main58569-44010-B2iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

SHADOW GRAY,TRIM1#

sub58569-44010

main58569-44010-B5iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

sub58569-44010

58569FPAD, FRONT FLOOR SIDE, LH

main58569-42010iACA20,22,CLA20,ZCA25200005-200307

9046710161

main90467-10161

12 parts on this diagram · 2 diagrams in section
