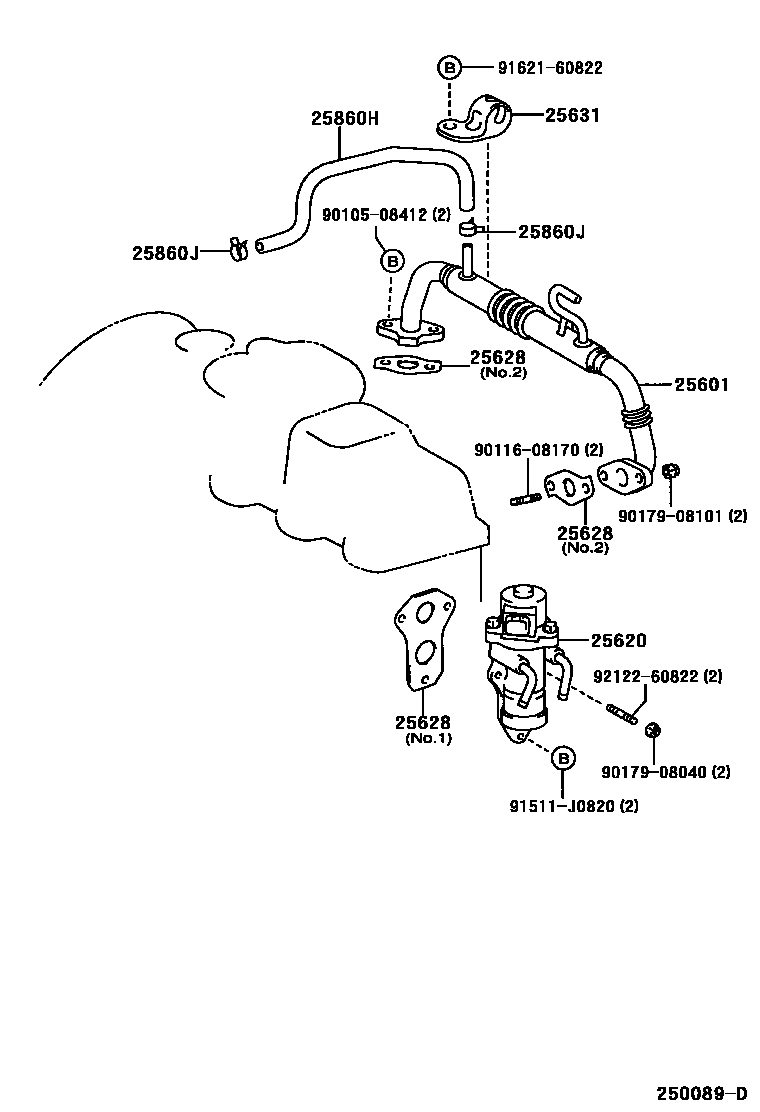

Toyota RAV4 — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-27010i200105-200307

25620VALVE ASSY, EGR

main25620-27080i200105-200307

25628GASKET, EGR INLET

main25628-27010i200307

NO.1

main25628-64030×2i200307

NO.2

25631STAY, EGR PIPE, NO.1

main25631-27010i200105-200307

25860HHOSE, WATER BY-PASS HOSE NO.2(FOR EGR COOLER)

main16267-27010i200105-200307

25860JHOSE, CLIP NO.1(FOR EGR COOLER)

main90467-15022×2i200105-200307

9010508412

main90105-08412

9011608170

main90116-08170

9017908040

main90179-08040

9017908101

main90179-08101

91511J0820

main91511-J0820

9162160822

main91621-60822

9212260822

main92122-60822

13 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota RAV4

This section contains 13 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota RAV4. Key components include: PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, GASKET, EGR INLET, STAY, EGR PIPE, NO.1, HOSE, WATER BY-PASS HOSE NO.2(FOR EGR COOLER).
