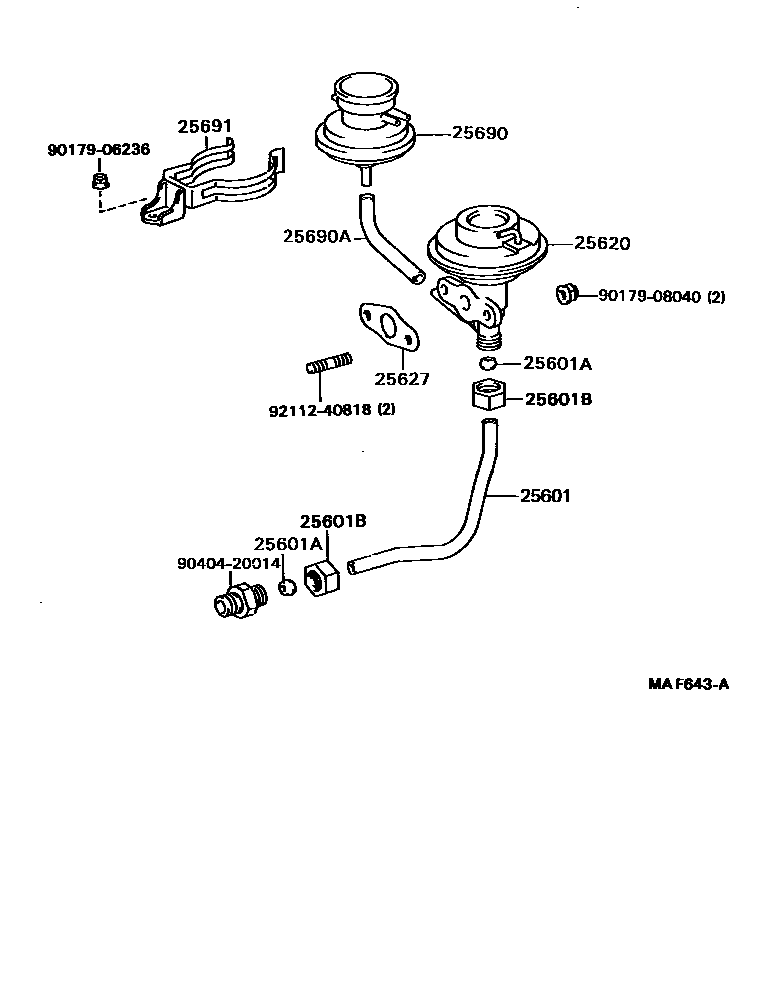

Toyota RAV4 — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25620VALVE ASSY, EGR
25627GASKET, EGR VALVE
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
9017906236
main90179-06236
9017908040
main90179-08040
9040420014
main90404-20014
9211240818
main92112-40818
12 parts on this diagram · 3 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota RAV4
This section contains 18 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota RAV4. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1), VALVE ASSY, EGR.
