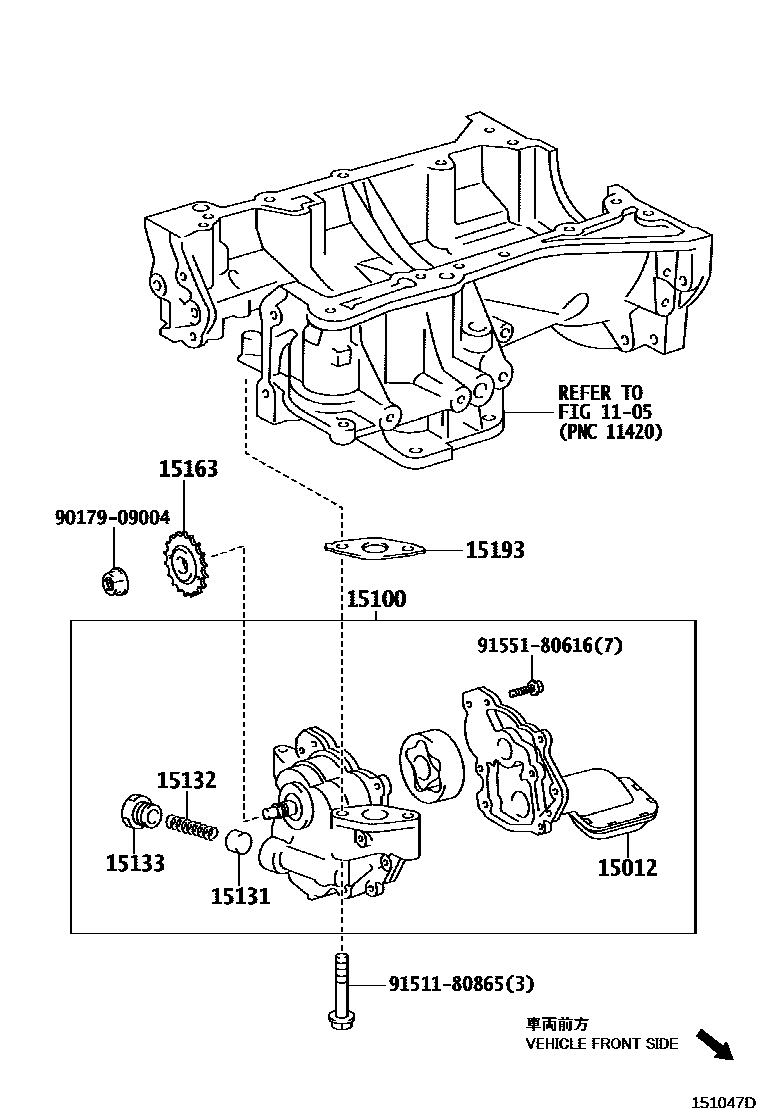

Toyota RAV4 — ENGINE OIL PUMP
1105CYLINDER BLOCK
15012COVER SUB-ASSY, OIL PUMP
15100PUMP ASSY, OIL
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
15133PLUG, OIL PUMP RELIEF VALVE
15163GEAR, OIL PUMP DRIVE SHAFT
15193GASKET, OIL PUMP
9017909004
main90179-09004
9151180865
main91511-80865
9155180616
main91551-80616
11 parts on this diagram · 5 diagrams in section
ENGINE OIL PUMP for Toyota RAV4
This section contains 29 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota RAV4. Key components include: CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE, COVER SUB-ASSY, OIL PUMP, STRAINER SET, OIL PUMP, PUMP ASSY, OIL.
