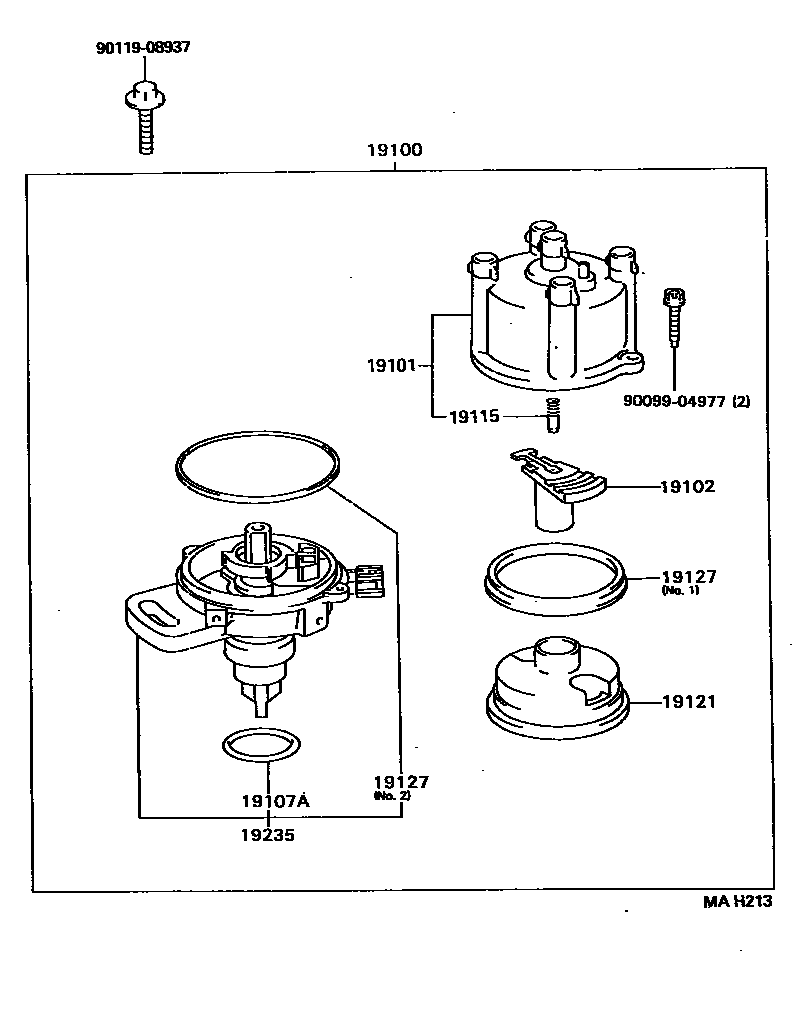

Toyota RAV4 — DISTRIBUTOR
19100DISTRIBUTOR ASSY
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
19115PIECE, DISTRIBUTOR CAP, CENTER
19121COVER, DUST PROOF
19127PACKING, DUST PROOF
NO.1
NO.2
19235HOUSING, DISTRIBUTOR
9009904977
main90099-04977
9011908937
main90119-08937
10 parts on this diagram · 2 diagrams in section
DISTRIBUTOR for Toyota RAV4
This section contains 17 genuine Toyota parts for the DISTRIBUTOR system of the Toyota RAV4. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, PIECE, DISTRIBUTOR CAP, CENTER.
