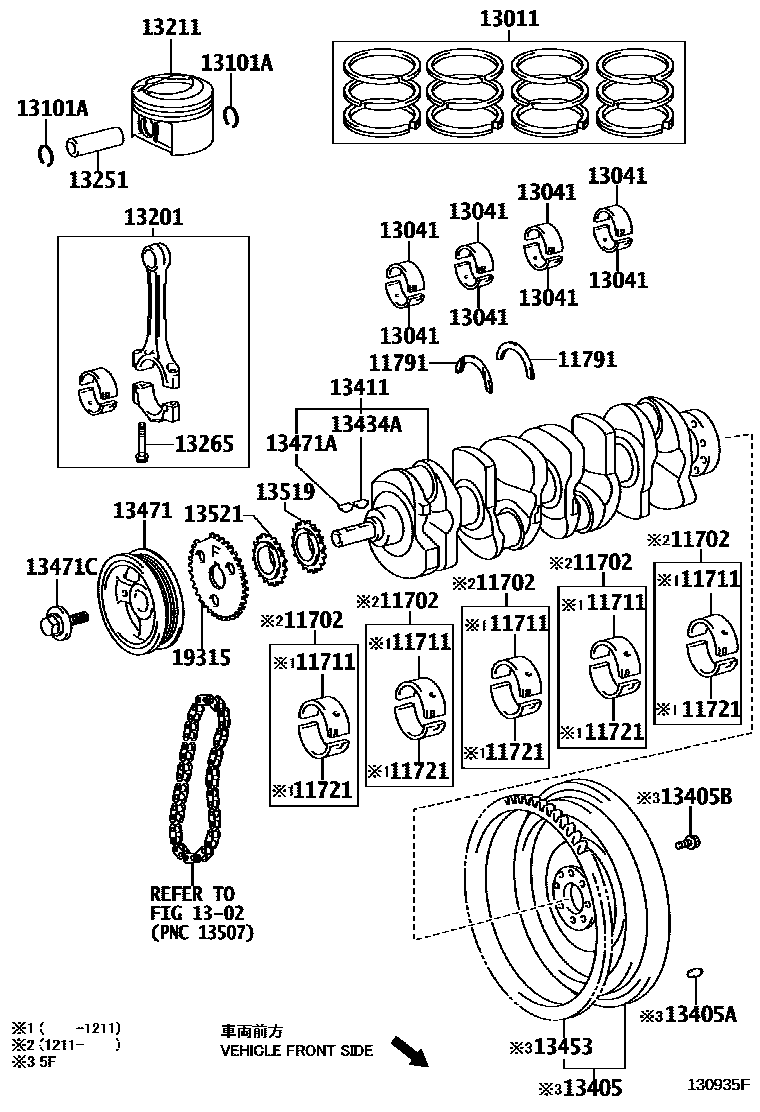

Toyota RAV4 — CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1 0005 1

11702BEARING SET, CRANKSHAFT

main11701-28010-01i1AZFE,2AZFE..ACA3#201211-201212

MARK 1,REFER REPAIR MANUAL

main11701-28010-02i1AZFE,2AZFE..ACA3#201211-201212

MARK 2,REFER REPAIR MANUAL

main11701-28010-03i1AZFE,2AZFE..ACA3#201211-201212

MARK 3,REFER REPAIR MANUAL

main11701-28010-04i1AZFE,2AZFE..ACA3#201211-201212

MARK 4,REFER REPAIR MANUAL

11711BEARING, CRANKSHAFT

main11071-0P030-01i2GRFE..GSA33200708-200906

MARK1,NO.2,(L):REFER R/M

sub11071-0P050

main11071-0P030-02i2GRFE..GSA33200708-200906

MARK2,NO.2,(L):REFER R/M

sub11071-0P050

main11071-0P030-03i2GRFE..GSA33200708-200906

MARK3,NO.2,(L):REFER R/M

sub11071-0P050

main11071-0P030-04i2GRFE..GSA33200708-200906

MARK4,NO.2,(L):REFER R/M

sub11071-0P050

main11071-0P030-05i2GRFE..GSA33200708-200906

MARK5,NO.2,(L):REFER R/M

sub11071-0P050

main11071-31031-01i2GRFE..GSA33200708-201212

MARK1,NO.2,(J):REFER R/M

sub11071-31060

main11071-31031-02i2GRFE..GSA33200708-201212

MARK2,NO.2,(J):REFER R/M

sub11071-31060

main11071-31031-03i2GRFE..GSA33200708-201212

MARK3,NO.2,(J):REFER R/M

sub11071-31060

main11071-31031-04i2GRFE..GSA33200708-201212

MARK4,NO.2,(J):REFER R/M

sub11071-31060

main11071-31031-05i2GRFE..GSA33200708-201212

MARK5,NO.2,(J):REFER R/M

sub11071-31060

main11701-0P030-01i2GRFE..GSA33200708-200906

MARK1,NO.1,(L):REFER R/M

sub11701-0P050

main11701-0P030-02i2GRFE..GSA33200708-200906

MARK2,NO.1,(L):REFER R/M

sub11701-0P050

main11701-0P030-03i2GRFE..GSA33200708-200906

MARK3,NO.1,(L):REFER R/M

sub11701-0P050

main11701-0P030-04i2GRFE..GSA33200708-200906

MARK4,NO.1,(L):REFER R/M

sub11701-0P050

main11701-0P030-05i2GRFE..GSA33200708-200906

MARK5,NO.1,(L):REFER R/M

sub11701-0P050

main11701-0R010-01i2AD#..ALA30200608-200807

MARK1,(L):REFER R/M

sub11701-26010

main11701-0R010-01i2AD#..ALA30200511-200608

MARK1,REFER REPAIR MANUAL

sub11701-26010

main11701-0R010-02i2AD#..ALA30200511-200608

MARK2,REFER REPAIR MANUAL

sub11701-26010

main11701-0R010-02i2AD#..ALA30200608-200807

MARK2,(L):REFER R/M

sub11701-26010

main11701-0R010-03i2AD#..ALA30200608-200807

MARK3,(L):REFER R/M

sub11701-26010

main11701-0R010-03i2AD#..ALA30200511-200608

MARK3,REFER REPAIR MANUAL

sub11701-26010

main11701-0R010-04i2AD#..ALA30200511-200608

MARK4,REFER REPAIR MANUAL

sub11701-26010

main11701-0R010-04i2AD#..ALA30200608-200807

MARK4,(L):REFER R/M

sub11701-26010

main11701-0R010-05i2AD#..ALA30200608-200807

MARK5,(L):REFER R/M

sub11701-26010

main11701-0R010-05i2AD#..ALA30200511-200608

MARK5,REFER REPAIR MANUAL

sub11701-26010

main11701-0R010-A0i2AD#..ALA30200511-200608

MARK0,REFER REPAIR MANUAL

sub11701-26010

main11701-0R010-A0i2AD#..ALA30200608-200807

MARK0,(L):REFER R/M

sub11701-26010

main11701-0R020-01i2AD#..ALA3#200807-201212

MARK1,(L):REFER R/M

main11701-0R020-02i2AD#..ALA30200807-201212

MARK2,(L):REFER R/M

main11701-0R020-03i2AD#..ALA3#200807-201212

MARK3,(L):REFER R/M

main11701-0R020-04i2AD#..ALA3#200807-201212

MARK4,(L):REFER R/M

main11701-0R020-05i2AD#..ALA3#200807-201212

MARK5,(L):REFER R/M

main11701-0R020-A0i2AD#..ALA30200807-201212

MARKA,(L):REFER R/M

main11701-26010-01i2AD#..ALA30200608-200807

MARK1,(J):REFER R/M

main11701-26010-02i2AD#..ALA30200608-200807

MARK2,(J):REFER R/M

main11701-26010-03i2AD#..ALA30200608-200807

MARK3,(J):REFER R/M

main11701-26010-04i2AD#..ALA30200608-200807

MARK4,(J):REFER R/M

main11701-26010-05i2AD#..ALA30200608-200807

MARK5,(J):REFER R/M

main11701-26010-A0i2AD#..ALA30200608-200807

MARK0,(J):REFER R/M

main11701-26020-01i2AD#..ALA30200807-201212

MARK1,(J):REFER R/M

main11701-26020-02i2AD#..ALA30200807-201212

MARK2,(J):REFER R/M

main11701-26020-03i2AD#..ALA3#200807-201212

MARK3,(J):REFER R/M

main11701-26020-04i2AD#..ALA3#200807-201212

MARK4,(J):REFER R/M

main11701-26020-05i2AD#..ALA30200807-201212

MARK5,(J):REFER R/M

main11701-26020-A0i2AD#..ALA30200807-201212

MARKA,(J):REFER R/M

main11701-31061-01i2GRFE..GSA33200708-200902

MARK1,NO.1,(J):REFER R/M

sub11701-31100

main11701-31061-02i2GRFE..GSA33200708-200902

MARK2,NO.1,(J):REFER R/M

sub11701-31100

main11701-31061-03i2GRFE..GSA33200708-200902

MARK3,NO.1,(J):REFER R/M

sub11701-31100

main11701-31061-04i2GRFE..GSA33200708-200902

MARK4,NO.1,(J):REFER R/M

sub11701-31100

main11701-31061-05i2GRFE..GSA33200708-200902

MARK5,NO.1,(J):REFER R/M

sub11701-31100

main11701-31090-01i2GRFE..GSA33200902-201212

MARK 1,NO.1,(J):REFER R/M

sub11701-31100

main11701-31090-02i2GRFE..GSA33200902-201212

MARK 2,NO.1,(J):REFER R/M

sub11701-31100

main11701-31090-03i2GRFE..GSA33200902-201212

MARK 3,NO.1,(J):REFER R/M

sub11701-31100

main11701-31090-04i2GRFE..GSA33200902-201212

MARK 4,NO.1,(J):REFER R/M

sub11701-31100

main11701-31090-05i2GRFE..GSA33200902-201212

MARK 5,NO.1,(J):REFER R/M

sub11701-31100

main11701-37020-01i3ZRFAE..ZSA3#200812-201212

MARK1,REFER REPAIR MANUAL

sub11701-37021

main11701-37020-02i3ZRFAE..ZSA3#200812-201212

MARK2,REFER REPAIR MANUAL

sub11701-37021

main11701-37020-03i3ZRFAE..ZSA3#200812-201212

MARK3,REFER REPAIR MANUAL

sub11701-37021

main11701-37020-04i3ZRFAE..ZSA3#200812-201212

MARK4,REFER REPAIR MANUAL

sub11701-37021

main11711-28020-01i1AZFE,2AZFE..ACA3#200511-200811

MARK1,REFER REPAIR MANUAL

sub11711-28021

main11711-28020-02i2AZFE..ACA33,38200511-200811

MARK2,REFER REPAIR MANUAL

sub11711-28021

main11711-28020-03i1AZFE,2AZFE..ACA3#200511-200811

MARK3,REFER REPAIR MANUAL

sub11711-28021

main11711-28020-04i2AZFE..ACA33,38200511-200811

MARK4,REFER REPAIR MANUAL

sub11711-28021

main11711-28021-01i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-201211

MARK 1,REFER REPAIR MANUAL

main11711-28021-02i1AZFE,2AZFE..ACA30,33,38200811-201211

MARK 2,REFER REPAIR MANUAL

main11711-28021-03i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-201211

MARK 3,REFER REPAIR MANUAL

main11711-28021-04i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-200812

MARK4,REFER REPAIR MANUAL

main11711-28021-04i1AZFE,2AZFE..ACA30,33,38200811-201211

MARK 4,REFER REPAIR MANUAL

11721BEARING, CRANKSHAFT, NO.2

main11721-28020-01i1AZFE,2AZFE..ACA3#200511-200811

MARK1,REFER REPAIR MANUAL

sub11721-28021

main11721-28020-02i2AZFE..ACA33,38200511-200811

MARK2,REFER REPAIR MANUAL

sub11721-28021

main11721-28020-03i1AZFE,2AZFE..ACA3#200511-200811

MARK3,REFER REPAIR MANUAL

sub11721-28021

main11721-28020-04i1AZFE,2AZFE..ACA3#200511-200811

MARK4,REFER REPAIR MANUAL

sub11721-28021

main11721-28021-01i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-200812

MARK1,REFER REPAIR MANUAL

main11721-28021-01i1AZFE,2AZFE..ACA30,33,38200811-201211

MARK 1,REFER REPAIR MANUAL

main11721-28021-02i1AZFE,2AZFE..ACA30,33,38200811-201211

MARK 2,REFER REPAIR MANUAL

main11721-28021-02i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-200812

MARK2,REFER REPAIR MANUAL

main11721-28021-03i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-200812

MARK3,REFER REPAIR MANUAL

main11721-28021-03i1AZFE,2AZFE..ACA30,33,38200811-201211

MARK 3,REFER REPAIR MANUAL

main11721-28021-04i1AZFE,2AZFE..ACA30,33,38200811-201211

MARK 4,REFER REPAIR MANUAL

main11721-28021-04i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-200812

MARK4,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020i3ZRFAE..ZSA3#200812-201212

STD

main11791-26010i2AD#..ALA30200511-201212

STD

main11791-28020i1AZFE,2AZFE..ACA3#200511-201212

STD

13011RING SET, PISTON

main13011-0R010i2AD#..ALA30200511-200610

STD,(L)

sub13011-0R011

main13011-0R011i2AD#..ALA30200610-200704

STD,(L)

sub13011-0R012

main13011-0R012i2AD#..ALA30200704-200710

STD,(L)

sub13011-26080

main13011-0R030i2AD#..ALA3#200812-201102

STD,(L)

sub13011-0R040

main13011-0R040i2AD#..ALA3#201102-201212

STD,(L)

main13011-26070i2AD#..ALA30200511-200610

STD,(J)

sub13011-26071

main13011-26071i2AD#..ALA30200610-200701

STD,(J)

sub13011-26080

main13011-26080i2AD#..ALA30200701-200710

STD,(J)

sub13011-26090

main13011-26090i2AD#..ALA30200710-200805

STD

sub13011-26100

main13011-26100i2AD#..ALA30200805-200812

STD

sub13011-26110

main13011-26100i2AD#..ALA3#200812-201102

STD,(J)

sub13011-26110

main13011-26110i2AD#..ALA3#201102-201212

STD,(J)

main13011-28121i1AZFE..ACA30200511-201212

STD

main13011-28160i2AZFE..ACA31,33..G..(EUR,GCC)200511-200912

STD

sub13011-28161

main13011-28161i2AZFE..ACA33,38200912-201212

STD

main13011-31130i2GRFE..GSA33200708-200812

STD

main13011-31150i2GRFE..GSA33200812-201212

STD

sub13011-31151

main13011-37130i3ZRFAE..ZSA3#200812-201212

STD

1302

13041BEARING, CONNECTING ROD

main13041-0P040-01i2GRFE..GSA33200708-200906

MARK1,(L):REFER R/M

sub13041-0P080

main13041-0P040-02i2GRFE..GSA33200708-200906

MARK2,(L):REFER R/M

sub13041-0P080

main13041-0P040-03i2GRFE..GSA33200708-200906

MARK3,(L):REFER R/M

sub13041-0P080

main13041-0P040-04i2GRFE..GSA33200708-200906

MARK4,(L):REFER R/M

sub13041-0P080

main13041-0R020-01i2AD#..ALA3#200812-201212

MARK1,(L):REFER R/M

main13041-0R020-02i2AD#..ALA3#200812-201212

MARK2,(L):REFER R/M

main13041-0R020-03i2AD#..ALA3#200812-201212

MARK3,(L):REFER R/M

main13041-0R020-04i2AD#..ALA3#200812-201212

MARK4,(L):REFER R/M

main13041-0R020-05i2AD#..ALA3#200812-201212

MARK5,(L):REFER R/M

main13041-26010-01i2AD#..ALA30200511-200808

MARK1,REFER REPAIR MANUAL

sub13041-26020

main13041-26010-02i2AD#..ALA30200511-200808

MARK2,REFER REPAIR MANUAL

sub13041-26020

main13041-26010-03i2AD#..ALA30200511-200808

MARK3,REFER REPAIR MANUAL

sub13041-26020

main13041-26010-04i2AD#..ALA30200511-200808

MARK4,REFER REPAIR MANUAL

sub13041-26020

main13041-26010-05i2AD#..ALA30200511-200808

MARK5,REFER REPAIR MANUAL

sub13041-26020

main13041-26020-01i2AD#..ALA3#200812-201212

MARK1,(J):REFER R/M

main13041-26020-01i2AD#..ALA30200808-200812

MARK1,REFER REPAIR MANUAL

main13041-26020-02i2AD#..ALA3#200812-201212

MARK2,(J):REFER R/M

main13041-26020-02i2AD#..ALA30200808-200812

MARK2,REFER REPAIR MANUAL

main13041-26020-03i2AD#..ALA30200808-200812

MARK3,REFER REPAIR MANUAL

main13041-26020-03i2AD#..ALA3#200812-201212

MARK3,(J):REFER R/M

main13041-26020-04i2AD#..ALA3#200812-201212

MARK4,(J):REFER R/M

main13041-26020-04i2AD#..ALA30200808-200812

MARK4,REFER REPAIR MANUAL

main13041-26020-05i2AD#..ALA3#200812-201212

MARK5,(J):REFER R/M

main13041-26020-05i2AD#..ALA30200808-200812

MARK5,REFER REPAIR MANUAL

main13041-31070-01i2GRFE..GSA33200708-200808

MARK1,(J):REFER R/M

sub13041-31100

main13041-31070-01i2GRFE..GSA33200808-201212

MARK 1,(J):REFER R/M

sub13041-31100

main13041-31070-02i2GRFE..GSA33200808-201212

MARK 2,(J):REFER R/M

sub13041-31100

main13041-31070-02i2GRFE..GSA33200708-200808

MARK2,(J):REFER R/M

sub13041-31100

main13041-31070-03i2GRFE..GSA33200808-201212

MARK 3,(J):REFER R/M

sub13041-31100

main13041-31070-03i2GRFE..GSA33200708-200808

MARK3,(J):REFER R/M

sub13041-31100

main13041-31070-04i2GRFE..GSA33200708-200808

MARK4,(J):REFER R/M

sub13041-31100

main13041-31070-04i2GRFE..GSA33200808-201212

MARK 4,(J):REFER R/M

sub13041-31100

main13041-37030-01i3ZRFAE..ZSA3#200812-201212

MARK1

main13041-37030-02i3ZRFAE..ZSA3#200812-201212

MARK2

main13041-37030-03i3ZRFAE..ZSA3#200812-201212

MARK3

main13281-28010-01i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200811

MARK 1,REFER REPAIR MANUAL

sub13281-28011

main13281-28010-02i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200811

MARK 2,REFER REPAIR MANUAL

sub13281-28011

main13281-28010-03i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200811

MARK 3,REFER REPAIR MANUAL

sub13281-28011

main13281-28011-01i1AZFE,2AZFE..ACA30,33,38200811-201212

MARK 1,REFER REPAIR MANUAL

main13281-28011-01i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-200812

MARK1,REFER REPAIR MANUAL

main13281-28011-02i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-200812

MARK2,REFER REPAIR MANUAL

main13281-28011-02i1AZFE,2AZFE..ACA30,33,38200811-201212

MARK 2,REFER REPAIR MANUAL

main13281-28011-03i1AZFE,2AZFE..ACA30,33,38200811-201212

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-0R010i2ADFTV..ALA30200511-200806

STD

sub13101-0R011

main13101-0R011i2ADFTV..ALA30200806-200812

STD

sub13101-0R012

main13101-0R020i2ADFHV..ALA30200511-200806

STD

sub13101-0R021

main13101-0R021i2ADFHV..ALA30200806-200812

STD

sub13101-0R022

main13101-0R060i2AD#..ALA3#200812-201212

STD

sub13101-0R080

sub13011-26120

main13101-31091i2GRFE..GSA33200708-200906

STD

sub13101-31092

main13101-31092-A0i2GRFE..GSA33200906-201212

STD,MARK A,REFER REPAIR MANUAL

sub13101-31092

main13101-31092-B0i2GRFE..GSA33200906-201212

STD,MARK B,REFER REPAIR MANUAL

sub13101-31092

main13101-31092-C0i2GRFE..GSA33200906-201212

STD,MARK C,REFER REPAIR MANUAL

sub13101-31092

main13101-37090i3ZRFAE..ZSA3#200812-201212

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-20064i3ZRFAE..ZSA3#200812-201212

main90520-22025i2GRFE..GSA33200511-201212

main90520-W0001i2AD#..ALA30200511-201212

13201ROD SUB-ASSY, CONNECTING

main13201-09790-A0i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812

MARK A,(L),REFER R/M

sub13201-09791

main13201-09790-A0i1AZFE,2AZFE..ACA30,33,38200808-200908

MARK A,REFER REPAIR MANUAL

sub13201-09791

main13201-09790-B0i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200812

MARK B,(L),REFER R/M

sub13201-09791

main13201-09790-B0i1AZFE,2AZFE..ACA30,33,38200808-200908

MARK B,REFER REPAIR MANUAL

sub13201-09791

main13201-09790-C0i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812

MARK C,(L),REFER R/M

sub13201-09791

main13201-09790-C0i1AZFE,2AZFE..ACA30,33,38200808-200908

MARK C,REFER REPAIR MANUAL

sub13201-09791

main13201-09791-A0i1AZFE,2AZFE..ACA3#200908-201204

MARK A,(L):REFER R/M

sub13201-29686

main13201-09791-B0i1AZFE,2AZFE..ACA3#200908-201204

MARK B,(L):REFER R/M

sub13201-29686

main13201-09791-C0i1AZFE,2AZFE..ACA3#200908-201204

MARK C,(L):REFER R/M

sub13201-29686

main13201-0R010i2AD#..ALA30200511-200801

(L)

sub13201-0R011

main13201-0R011i2AD#..ALA3#200801-201212

(L)

main13201-26010i2AD#..ALA30200511-200807

(J)

sub13201-26011

main13201-26011i2AD#..ALA3#200807-201212

(J)

sub13201-0R011

main13201-29686-A0i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-200812

MARK A,(J),REFER R/M

main13201-29686-A0i1AZFE,2AZFE..ACA30,33,38200811-201204

MARK A,(J):REFER R/M

main13201-29686-A0i1AZFE,2AZFE..ACA3#201204-201212

MARK A,REFER REPAIR MANUAL

main13201-29686-B0i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-200812

MARK B,(J),REFER R/M

main13201-29686-B0i1AZFE,2AZFE..ACA3#201204-201212

MARK B,REFER REPAIR MANUAL

main13201-29686-B0i1AZFE,2AZFE..ACA30,33,38200811-201204

MARK B,(J):REFER R/M

main13201-29686-C0i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200811-200812

MARK C,(J),REFER R/M

main13201-29686-C0i1AZFE,2AZFE..ACA30,33,38200811-201204

MARK C,(J):REFER R/M

main13201-29686-C0i1AZFE,2AZFE..ACA3#201204-201212

MARK C,REFER REPAIR MANUAL

main13201-39135i2GRFE..GSA33200708-201005

sub13201-39137

main13201-39135-A0i2GRFE..GSA33201005-201212

MARK A,REFER REPAIR MANUAL

sub13201-39135

sub13201-39137

main13201-39135-B0i2GRFE..GSA33201005-201212

MARK B,REFER REPAIR MANUAL

sub13201-39135

sub13201-39137

main13201-39135-C0i2GRFE..GSA33201005-201212

MARK C,REFER REPAIR MANUAL

sub13201-39135

sub13201-39137

main13201-39205i3ZRFAE..ZSA3#200812-201212

13211PISTON

main13211-28061-A0i1AZFE..ACA30200511-201212

MARK A,REFER REPAIR MANUAL

main13211-28061-B0i1AZFE..ACA30200511-201212

MARK B,REFER REPAIR MANUAL

main13211-28061-C0i1AZFE..ACA30200511-201212

MARK C,REFER REPAIR MANUAL

main13211-28110-A0i2AZFE..ACA31,33,38200511-200806

MARKA,REFER REPAIR MANUAL

sub13211-28111

main13211-28110-B0i2AZFE..ACA31,33,38200511-200806

MARKB,REFER REPAIR MANUAL

sub13211-28111

main13211-28110-C0i2AZFE..ACA31,33,38200511-200806

MARKC,REFER REPAIR MANUAL

sub13211-28111

main13211-28111-A0i2AZFE..ACA33,38200806-200911

MARK A,REFER REPAIR MANUAL

sub13211-28112

main13211-28111-B0i2AZFE..ACA31,33..G..(EUR,GCC)200806-200911

MARK B,REFER REPAIR MANUAL

sub13211-28112

main13211-28111-C0i2AZFE..ACA31,33..G..(EUR,GCC)200806-200911

MARK C,REFER REPAIR MANUAL

sub13211-28112

main13211-28112-A0i2AZFE..ACA33,38200911-201212

MARK A,REFER REPAIR MANUAL

main13211-28112-B0i2AZFE..ACA33,38200911-201212

MARK B,REFER REPAIR MANUAL

main13211-28112-C0i2AZFE..ACA33,38200911-201212

MARK C,REFER REPAIR MANUAL

13251PIN, PISTON

main13251-28010-A0i1AZFE..ACA30200511-200812

MARK A,REFER REPAIR MANUAL

sub13251-28020

main13251-28010-B0i1AZFE..ACA30200511-200812

MARK B,REFER REPAIR MANUAL

sub13251-28020

main13251-28010-C0i1AZFE..ACA30200511-200812

MARK C,REFER REPAIR MANUAL

sub13251-28020

main13251-28020-A0i1AZFE,2AZFE..ACA30,33,38200808-201212

MARK A,REFER REPAIR MANUAL

main13251-28020-A0i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200812

MARKA,REFER REPAIR MANUAL

main13251-28020-B0i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200812

MARKB,REFER REPAIR MANUAL

main13251-28020-B0i1AZFE,2AZFE..ACA30,33,38200808-201212

MARK B,REFER REPAIR MANUAL

main13251-28020-C0i2AZFE..ACA31,33..G..(EUR,GCC)200511-200812

MARKC,REFER REPAIR MANUAL

main13251-28020-C0i1AZFE,2AZFE..ACA30,33,38200808-201212

MARK C,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-22020i3ZRFAE..ZSA3#200812-201212

sub13265-22040

main13265-22030i2AD#..ALA30200511-200810

sub13265-22031

main13265-22031i2AD#..ALA3#200810-201212

main13265-28010i2GRFE..GSA33200511-201212

sub13265-28020

13405FLYWHEEL SUB-ASSY

main13405-28020i1AZFE..ACA30..5F200511-201212

main13405-37060i3ZRFAE..ZSA3#..6F200812-201212

main13450-0R010i2AD#..ALA30200511-201212

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i1AZFE,2AZFE..ACA30,33,38..5F200511-201212

L=23,OD=8

main90250-08120i3ZRFAE..ZSA3#..6F200812-201212

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-12322i1AZFE,2AZFE..ACA30,33,38..5F200511-201212

main90148-10004i2AD#..ALA30200511-201212

main90913-01027i3ZRFAE..ZSA3#..6F200812-201212

13411CRANKSHAFT

main13401-0H010i2AZFE..ACA33,38200511-201204

(L)

main13401-0R020i2AD#..ALA30200511-200802

(L)

sub13401-0R021

main13401-0R021i2AD#..ALA30200802-200812

(L)

main13401-26011i2AD#..ALA30200511-200803

(J)

sub13401-26012

main13401-26012i2AD#..ALA3#200812-201212

sub13401-0R021

main13401-26012i2AD#..ALA30200803-200812

(J)

sub13401-0R021

main13401-28010i2AZFE..ACA33,38200511-201212

(J)

main13401-31040i2GRFE..GSA33200708-201212

sub13401-31041

main13401-37031i3ZRFAE..ZSA3#200812-201212

sub13401-37032

main13411-28040i1AZFE..ACA30200511-201212

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main95161-30416i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

13453GEAR, FLYWHEEL RING

main13453-20010i3ZRFAE..ZSA3#..6F200812-201212

main13453-74011i2AZFE..ACA33,38..5F200511-201212

13471PULLEY, CRANKSHAFT

main13408-0R011i2AD#..ALA30200511-200807

sub13408-0R030

main13408-0R030i2AD#..ALA3#200807-201212

main13470-28020i1AZFE,2AZFE..ACA30,33,38200511-201212

main13470-31030i2GRFE..GSA33200708-201212

main13470-37020i3ZRFAE..ZSA3#201110-201203

MARK=WHITE

main13470-37020i3ZRFAE..ZSA3#200812-201110

main13470-37050i3ZRFAE..ZSA3#201110-201203

MARK=PINK

sub13470-37041

main13470-37050i3ZRFAE..ZSA3#201203-201212

sub13470-37041

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30416i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

main95161-30516i2AD#..ALA30200511-201212

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i3ZRFAE..ZSA3#200511-201212

main90119-16004i2GRFE..GSA33200708-201212

main90119-18003i2AD#..ALA3#200511-201212

13519GEAR, OIL PUMP DRIVE

main13519-26010i2AD#..ALA3#200511-201212

main13519-28010i1AZFE,2AZFE..ACA30,33,38200511-201212

main13519-37010i3ZRFAE..ZSA3#200812-201212

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-26010i2AD#..ALA3#200511-201212

main13521-28010i1AZFE,2AZFE..ACA3#200511-200601

sub13521-28030

main13521-28030i1AZFE,2AZFE..ACA3#200601-201212

main13521-31041i2GRFE..GSA33200708-201212

main13521-37020i3ZRFAE..ZSA3#200812-201212

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-0R011i2AD#..ALA30200511-201212

main19315-28010i1AZFE,2AZFE..ACA30,33,38200511-201212

main19315-37020i3ZRFAE..ZSA3#200812-201212

25 parts on this diagram · 5 diagrams in section
