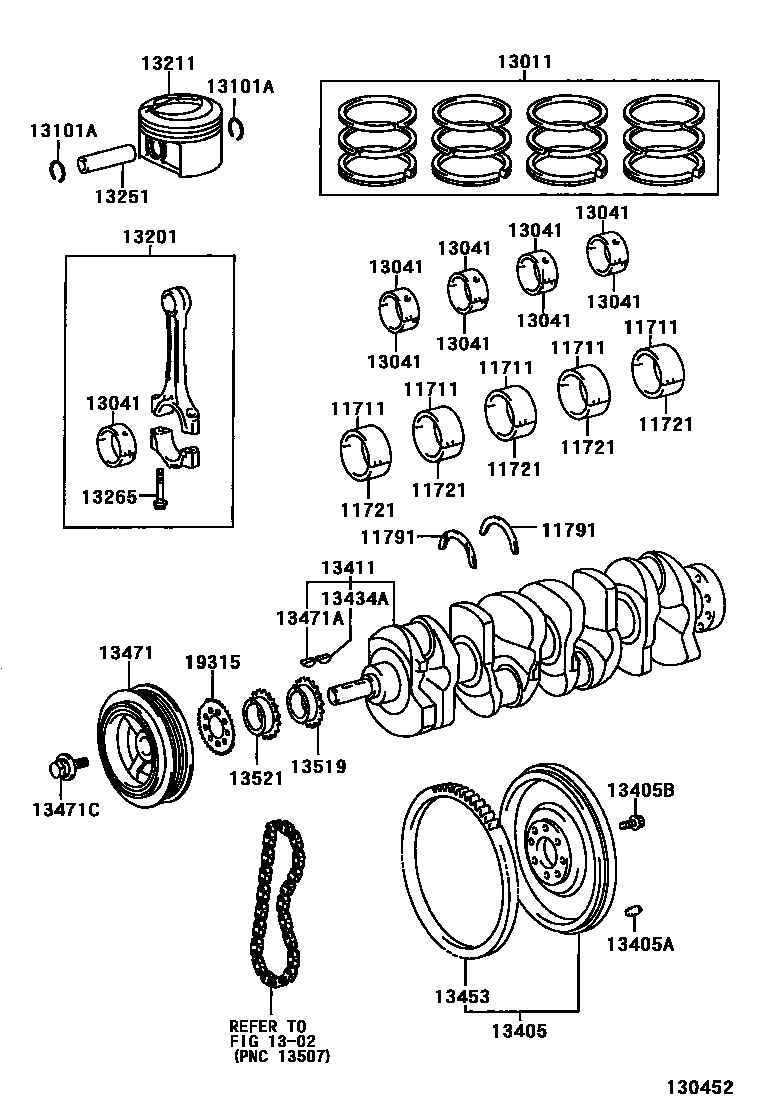

Toyota RAV4 — CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1:REFER TO REPAIR MANUAL,MARK1
MARK 2:REFER TO REPAIR MANUAL,MARK2
MARK 3:REFER TO REPAIR MANUAL,MARK3
MARK 4:REFER TO REPAIR MANUAL,MARK4
REFER TO REPAIR MANUAL,MARK1
REFER TO REPAIR MANUAL,MARK2
REFER TO REPAIR MANUAL,MARK3
REFER TO REPAIR MANUAL,MARK4
REFER TO REPAIR MANUAL,MARK5
REFER TO REPAIR MANUAL,MARKA
REFER TO REPAIR MANUAL,MARKB
11721BEARING, CRANKSHAFT, NO.2
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
13011RING SET, PISTON
STD
STD
STD
STD
STD
STD
1302
13041BEARING, CONNECTING ROD
MARK 1:REFER TO REPAIR MANUAL,MARK1
MARK 2:REFER TO REPAIR MANUAL,MARK2
MARK 3:REFER TO REPAIR MANUAL,MARK3
MARK 1:REFER TO REPAIR MANUAL,MARK 1
MARK 2:REFER TO REPAIR MANUAL,MARK 2
MARK 3:REFER TO REPAIR MANUAL,MARK 3
MARK 4:REFER TO REPAIR MANUAL,MARK 4
MARK 5:REFER TO REPAIR MANUAL,MARK 5
13101PISTON SUB-ASSY, W/PIN
STD
STD,MARK A:REFER TO REPAIR MANUAL,MARK A
STD,MARK B:REFER TO REPAIR MANUAL,MARK B
STD,MARK C:REFER TO REPAIR MANUAL,MARK C
13101ARING, HOLE SNAP(FOR PISTON PIN)
13211PISTON
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13453GEAR, FLYWHEEL RING
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
19315PLATE, CRANK ANGLE SENSOR, NO.1
24 parts on this diagram · 4 diagrams in section
