Toyota RAV4 — COWL PANEL & WINDSHIELD GLASS

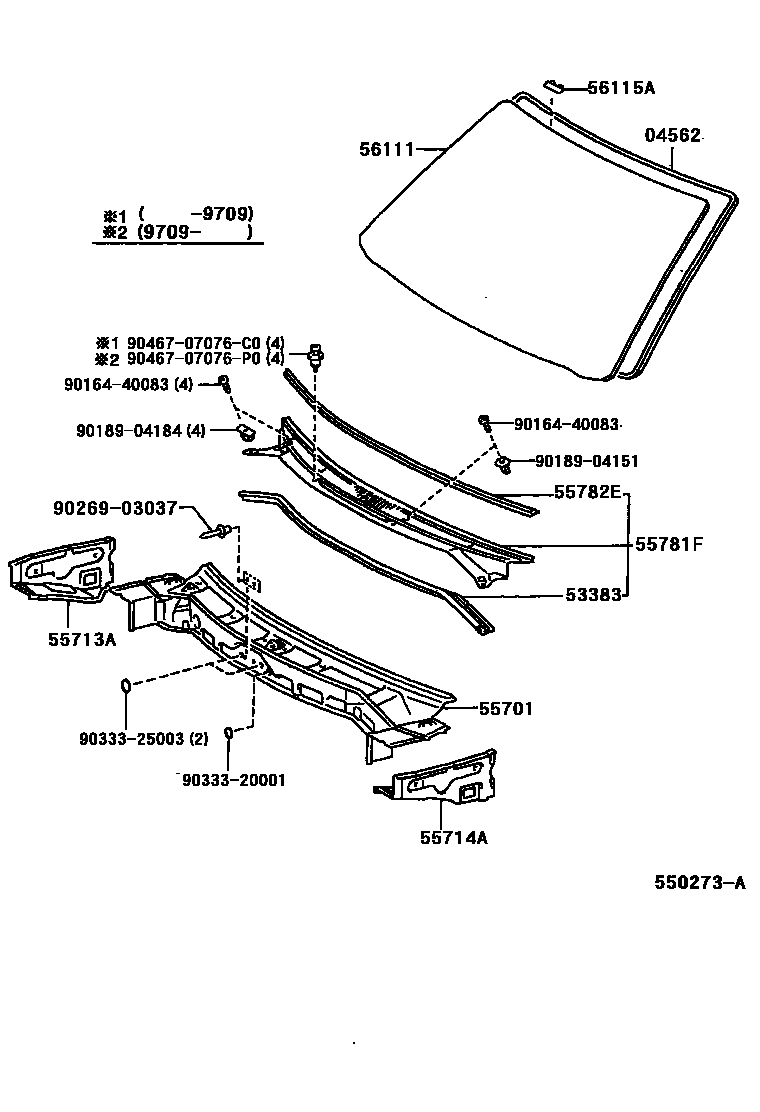

Parts diagram

04562DAM KIT, WINDSHIELD GLASS

main04562-12010i199404-199709

53383SEAL, HOOD TO COWL TOP

main53383-42010i199404

55701PANEL SUB-ASSY, COWL

main55700-42010i199404-199608

main55700-42050i199404-199608

main55700-42051i199608-199709

main55700-42080i199404-199608

main55700-42130i199608-199709

main55700-42150i199608

W(BUMPER EXTENTION)

main55700-42150i199712

W(235/60R16 TIRE)

main55700-42190i199808

CHINA SPEC

main55700-42190i199608-199808

main55700-42210i199709

main55700-42250i199808

main55700-42260i199808

main55700-42320i199803

W(235/60R16 TIRE)

main55700-42330i199803

W(235/60R16 TIRE)

55713APANEL, COWL TOP SIDE, RH

main55713-42010i199404-199608

main55713-42011i199608

55714APANEL, COWL TOP SIDE, LH

main55714-42010i199404-199608

main55714-42011i199608

55781FLOUVER, COWL TOP VENTILATOR

main55708-42010i199404-199702

main55708-42020i199404-199702

main55708-42030i199702

main55708-42040i199702

55782EPROTECTOR, COWL TOP VENTILATOR LOUVER

main55782-42010i199404-199702

main55782-42020i199702

56111GLASS, WINDSHIELD

main56111-42010i199404-199504

*TL,T=4.76,CLEAR

main56111-42020i199504-199808

*TL,T=4.76,GREEN

main56111-42040i199808

*TL,T=5.3,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20080i199404

9016440083

main90164-40083

9018904151

main90189-04151

9018904184

main90189-04184

9033320001

main90333-20001

9033325003

main90333-25003

9046707076C0

main90467-07076C0

9046707076P0

main90467-07076P0

16 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota RAV4

This section contains 16 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota RAV4. Key components include: DAM KIT, WINDSHIELD GLASS, SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH.
