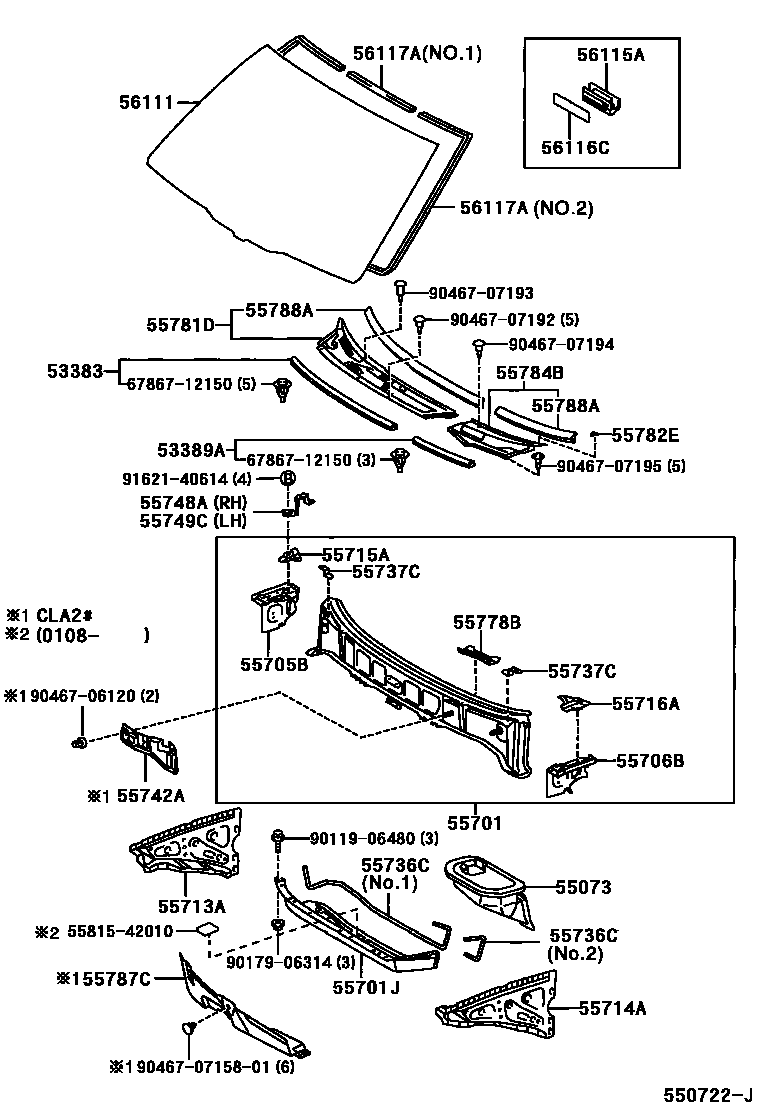

Toyota RAV4 — COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53389ASEAL, HOOD TO COWL TOP, NO.2
55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55701PANEL SUB-ASSY, COWL
W(INDENTIFICATION NUMBER PLATE)
W(INDENTIFICATION NUMBER PLATE)
W(INDENTIFICATION NUMBER PLATE)
W(INDENTIFICATION NUMBER PLATE)
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55736CSEAL, WATER GUARD PLATE
NO.1:REFER TO ILLUSTRATION
NO.2:REFER TO ILLUSTRATION
55737CBRACKET, COWL TOP OUTER PANEL, NO.3
LH
RH
55742ASHEET, COWL TOP INSULATOR
55748ABRACE, COWL TOP INNER TO PILLAR
55749CBRACE, COWL TOP INNER TO PILLAR, LH
55778BBRACKET, IDENTIFICATION NUMBER PLATE
55781DLOUVER, COWL TOP VENTILATOR, RH
55782EPROTECTOR, COWL TOP VENTILATOR LOUVER
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
55787CINSULATOR, COWL TOP PANEL, NO.1
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
RH
RH
RH
RH
LH
LH
LH
LH
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN,W(INDENTIFICATION NUMBER PLATE)
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN,W(INDENTIFICATION NUMBER PLATE)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=712,NO.1:REFER TO ILLUSTRATION
*D,L=712,NO.1:REFER TO ILLUSTRATION
*D,L=3204,NO.2:REFER TO ILLUSTRATION
5581542010ROD, COWL VENTILATOR CONTROL
main55815-42010
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9011906480
main90119-06480
9017906314
main90179-06314
9046706120
main90467-06120
904670715801
main90467-0715801
9046707192
main90467-07192
9046707193
main90467-07193
9046707194
main90467-07194
9046707195
main90467-07195
9162140614
main91621-40614
37 parts on this diagram · 4 diagrams in section
COWL PANEL & WINDSHIELD GLASS for Toyota RAV4
This section contains 40 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota RAV4. Key components include: SEAL, HOOD TO COWL TOP, SEAL, HOOD TO COWL TOP, NO.2, SEAL, HOOD TO FRONT END PANEL, NO.2., NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT, PANEL SUB-ASSY, COWL.
