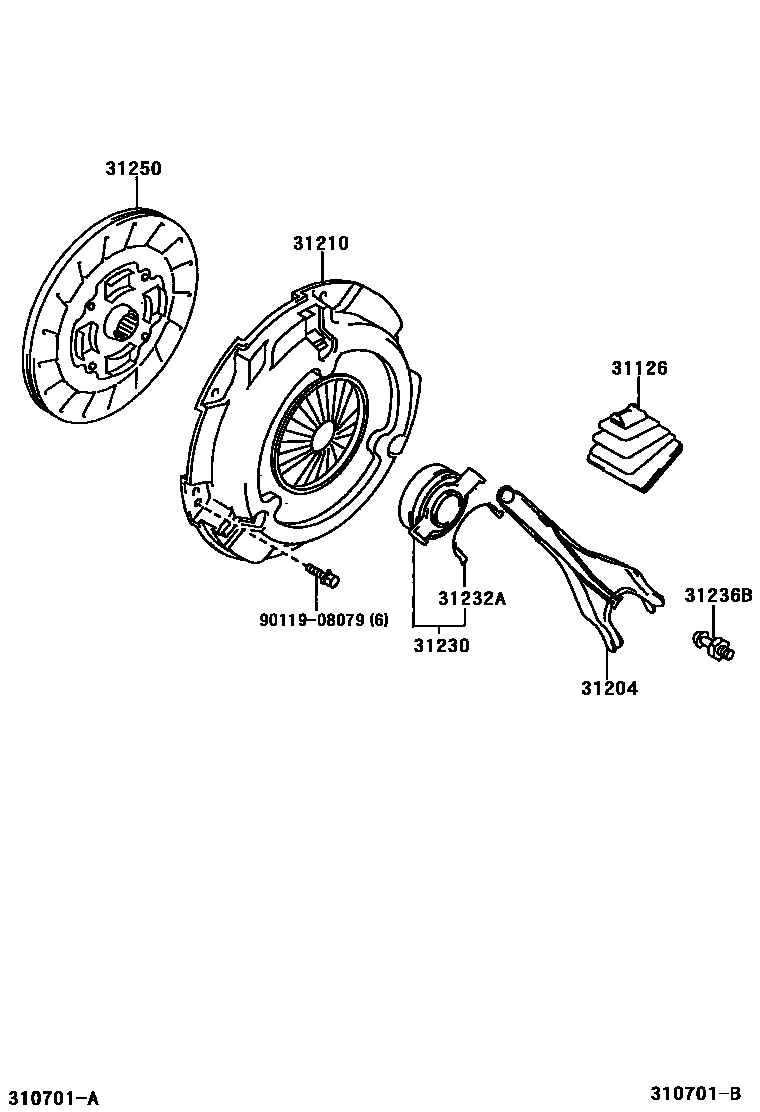

Toyota RAV4 — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZCA2#200005-200307

main31126-20080iCLA2#200105-200307

main31126-32010iACA2#..MTM200005-200307

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZCA2#200307-200511

main31204-20100iACA2#..MTM200005-200307

main31204-20130iCLA2#200105-200208

main31204-20131iCLA2#200208-200307

31210COVER ASSY, CLUTCH

main31210-12152iZCA2#200005-200307

main31210-20371iCLA2#200105-200307

sub31210-20372

main31210-20373iCLA2#200409-200511

main31210-28060iACA22,23..MTM200307-200508

main31210-33040iACA22,23..MTM200509-200511

sub31210-33041

main31210-42010iACA20,21..MTM200307-200508

main31210-42020iACA20,21..MTM200509-200511

sub31210-42021

main31210-52050iZCA2#200507-200511

sub31210-52051

31230BEARING ASSY, CLUTCH RELEASE

main31230-12170iZCA2#200005-200101

main31230-12171iZCA2#200101-200201

main31230-12191iZCA2#200201-200307

main31230-20170iACA2#..MTM200307-200511

main31230-20191iCLA2#200105-200307

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZCA2#200005-200307

main31232-20020iACA2#..MTM200005-200307

main31232-20031iCLA2#200105-200307

31236BSUPPORT, RELEASE FORK

main31236-12020iZCA2#200005-200307

main31236-20060iACA2#..MTM200307-200511

main31236-20080iCLA2#200105-200307

31250DISC ASSY, CLUTCH

main31250-12550iZCA2#200512

main31250-20280iZCA2#200307-200511

sub31250-12570

main31250-20351iCLA2#200105-200206

main31250-20352iCLA2#200206-200307

main31250-20353iCLA2#200311

main31250-28180iACA22,23..MTM200307-200510

main31250-28181iACA22,23..MTM200511

sub31250-33060

main31250-42010iACA20,21..MTM200307-200510

main31250-42011iACA20,21..MTM200511

sub31250-33060

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section
