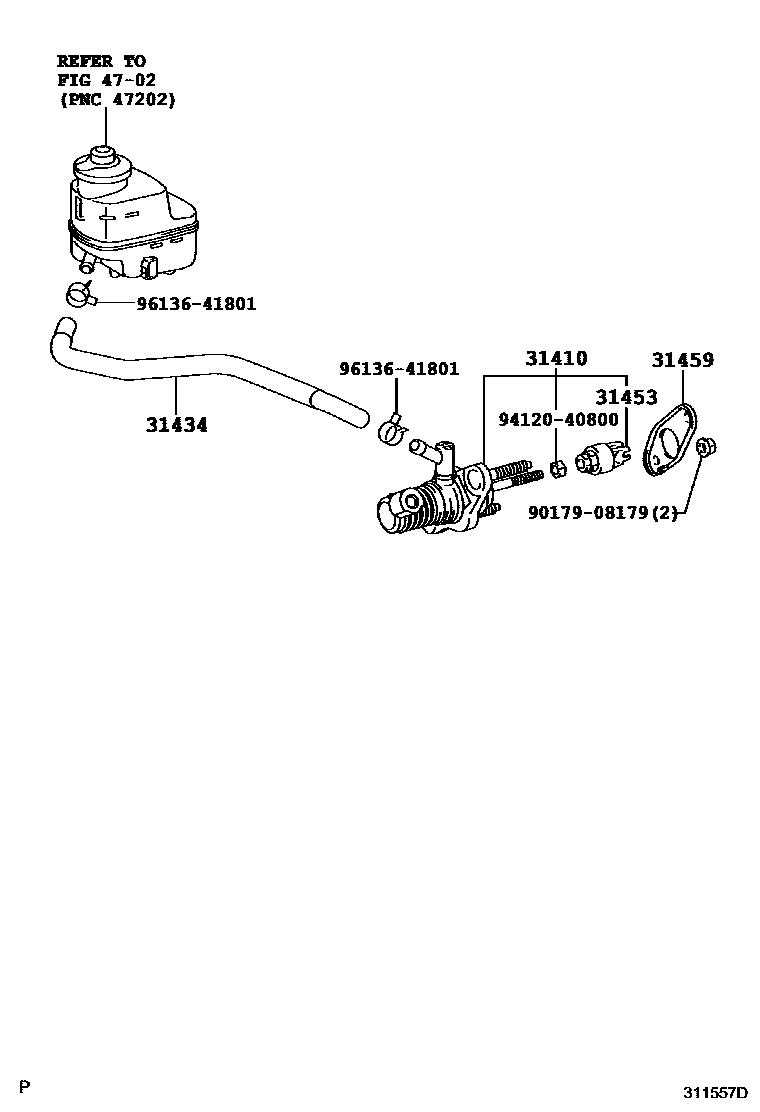

Toyota RAV4 — CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-42040iALA30..RHD200511-200608

sub31420-42041

main31420-42041iALA30..RHD200609-200705

main31420-42050iALA30..LHD200511-200608

sub31420-42051

main31420-42051iALA30..LHD200609-200705

main31420-42060iALA30..RHD200609-201212

sub31420-42061

main31420-42070iACA30,33,38,ALA3#,ZSA3#..LHD..MTM200609-201212

main31420-52060iACA3#..LHD..5F200511-200608

main31420-52070iACA30,33..RHD..5F200511-200609

sub31420-52071

31434TUBE, CLUTCH RESERVOIR

main31434-42040iALA3#..RHD..6F..BTYPE;ALA30..RHD..DCR..ATYPE200511-201212

main31434-42050iACA33,38..LHD..5F200511-201212

main31434-42060iALA3#..RHD..6F200812-201212

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-26020iALA30..RHD200511-201212

sub31404-26021

main31404-42010iALA30..RHD200511-200705

main31404-42020iALA30..LHD200511-200705

main31404-52010iACA30..LHD..5F200511-201212

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iACA33,38..5F200511-201212

4702

9017908179

main90179-08179

9412040800

main94120-40800

9613641801

main96136-41801

8 parts on this diagram · 2 diagrams in section
