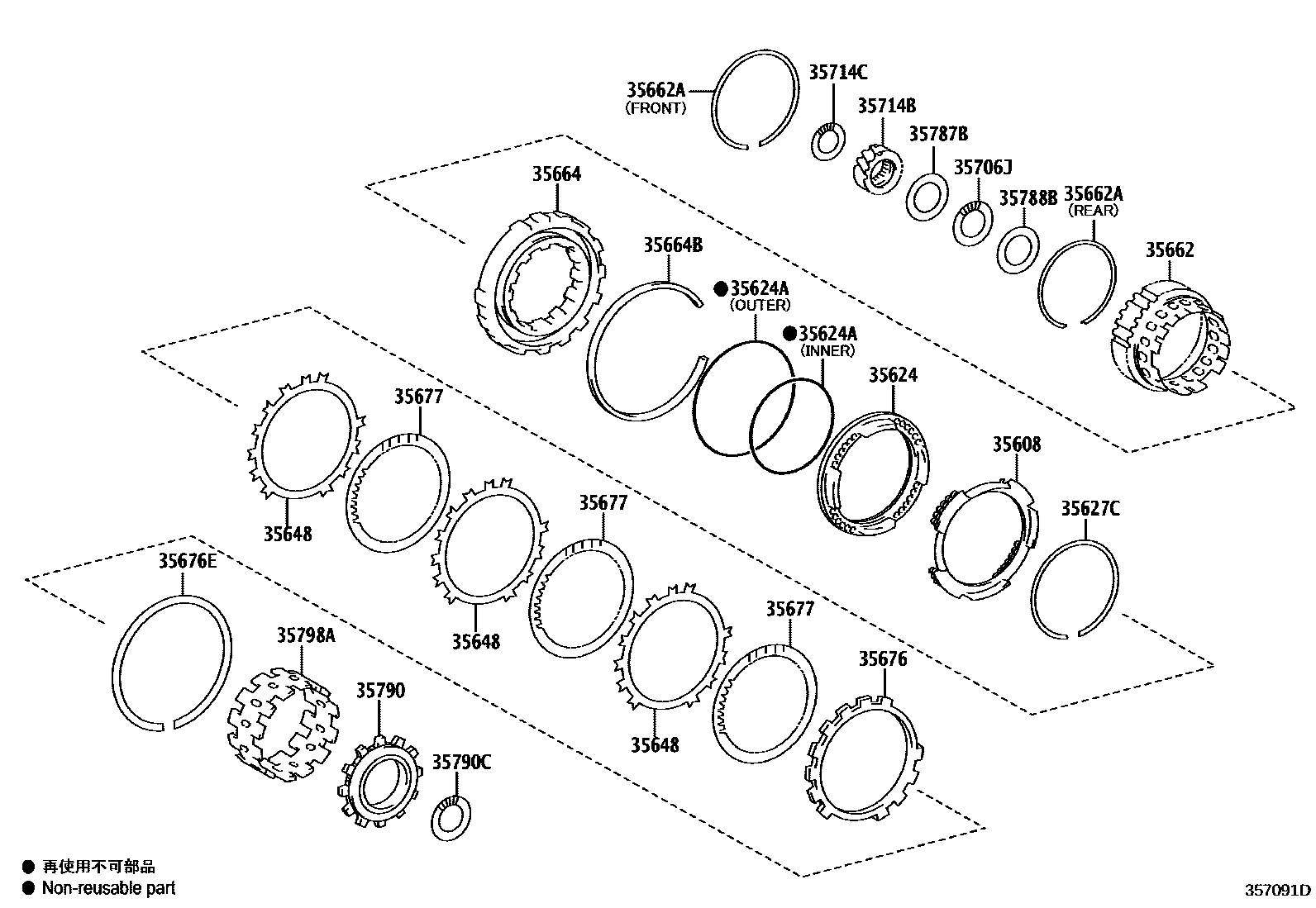

Toyota RAV4 — CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1U140F,U241E 0002 1U151F 0003 1U660F

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-21010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

35624PISTON, 2ND BRAKE

main35624-28020iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

main35624-33020iGSA33200708-201212

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99093iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

OUTER

main90301-99095iACA30,31..4FC;ACA33..G..GCC200511-201212

INNER

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-99036iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35691-28010iGSA33200511-201212

T=2.0

35662HUB, BRAKE

main35662-06010iACA3#,GSA33..ATM201006-201212

(L)

sub35662-21010

main35662-28010iACA30,31..4FC;ACA33..G..GCC200511-201006

sub35662-06010

main35662-28010iACA3#,GSA33..ATM201006-201212

(J)

sub35662-06010

35662ARING, SNAP (FOR BRAKE HUB)

main90520-99024iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

REAR

main90520-99033iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

FRONT

35664CYLINDER, 2ND BRAKE

main35664-33010iACA30,33,38,GSA33..ATM200511-201212

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99027iACA30,31..4FC;ACA33..G..GCC200511-201212

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-21070iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

T=3.0,MARK 1

main35676-21080iACA30,31..4FC;ACA33..G..GCC200511-201212

T=3.1,MARK 2

main35676-21090iACA30,33,38,GSA33..ATM200511-201212

T=3.2,MARK 3

main35676-21100iACA30,31..4FC;ACA33..G..GCC200511-201212

T=3.3,MARK 4

main35676-21110iACA30,33,38,GSA33..ATM200511-201212

T=3.4,MARK 5

main35676-21120iACA30,31..4FC;ACA33..G..GCC200511-201212

T=3.5,MARK 6

main35676-21130iACA30,31..4FC;ACA33..G..GCC200511-201212

T=3.6,MARK 7

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90520-99026iACA30,31..4FC;ACA33..G..GCC200511-201212

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35681-28010iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

main35681-33010iGSA33200708-201212

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-38002iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

main90374-40004iGSA33200708-201212

35714BGEAR, INPUT SUN

main35714-28010iACA30,33,38..4FC200511-201212

main35714-33010iGSA33200708-201212

35714CBEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR)

main90374-32011iGSA33200708-201212

main90374-34006iACA30,31..4FC;ACA33..G..GCC200511-201212

35787BRACE, THRUST BEARING, NO.2

main34739-33010iGSA33200708-201212

RH

main35787-21010iGSA33200708-201212

LH

main35787-21010iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-200812

35788BRACE, THRUST BEARING, NO.3

main35788-20011iGSA33200708-201212

main35788-21010iACA30,31..4FC;ACA33..G..GCC200511-201212

35790CLUTCH ASSY, 1 WAY

main35790-28020iGSA33200708-201212

main35790-28030iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

main35791-73011iALA30..6FC200903-201212

sub35791-48010

35790CBEARING, THRUST NEEDLE ROLLER

main90374-53001iACA30,31..4FC;ACA33..G..GCC200511-201207

sub90374-53006

main90374-53006iACA3#..4FC201207

35798ASLEEVE, 1WAY CLUTCH, OUTER

main35798-28010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

20 parts on this diagram · 3 diagrams in section
