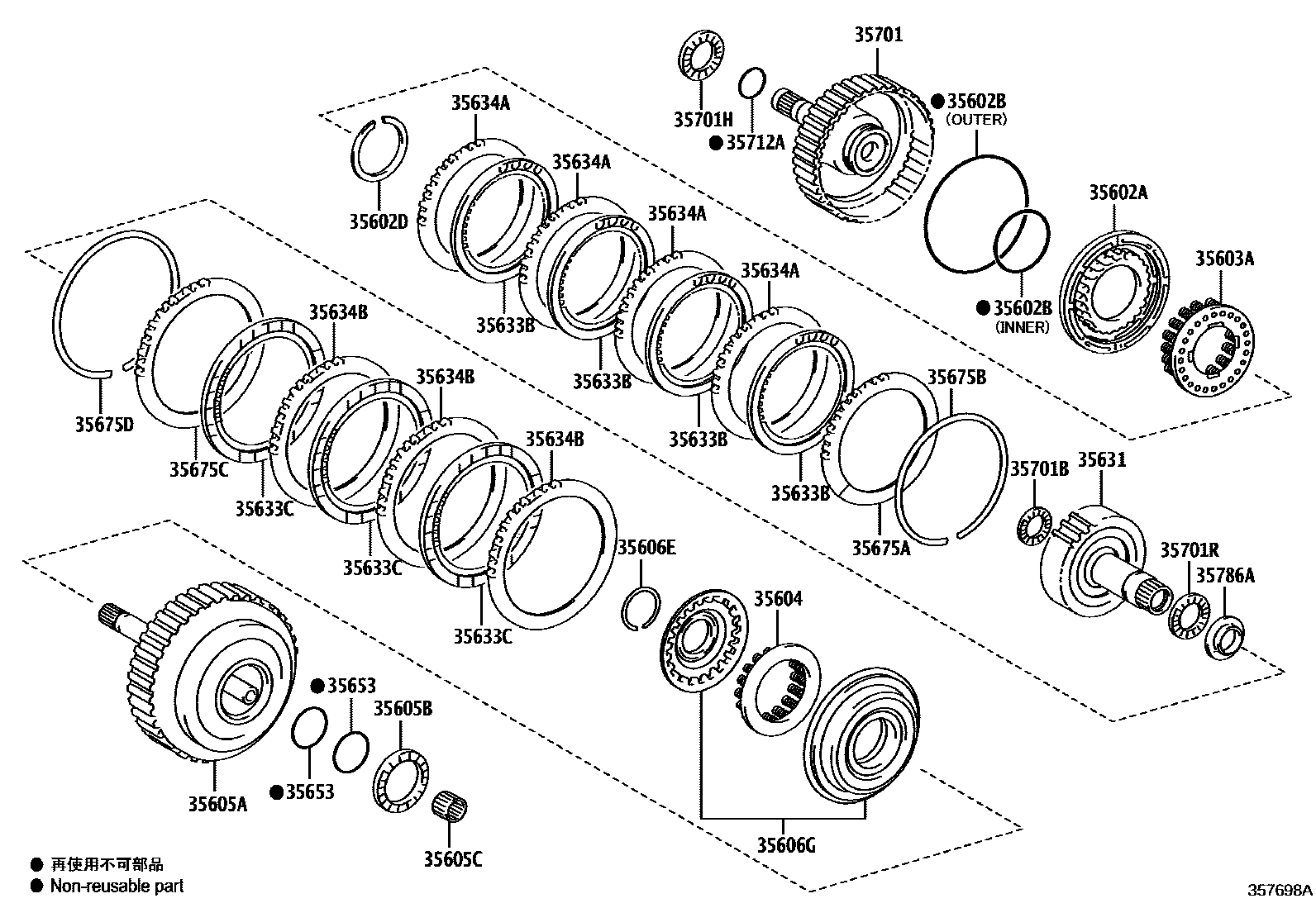

Toyota RAV4 — BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1U140F 0002 1U140F,U241E 0003 1U151F 0004 1U660F

35602APISTON SUB-ASSY, FORWARD CLUTCH

main35602-28010iACA30,33,38..4FC200511-201212

main35612-33050iGSA33200708-201212

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-65006iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

INNER

main90301-99104iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

OUTER

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-54004iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-21010iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

main35603-33030iGSA33200708-201212

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-21010iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-28020iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

35605BBEARING, THRUST NEEDLE ROLLER

main90374-53001iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201207

OD=69.39

sub90374-53006

main90374-53002iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

OD=69.97

main90374-53006iACA3#..4FC201207-201212

OD=69.39

main90374-55005iGSA33200708-201212

35605CBEARING, NEEDLE ROLLER

main90364-18010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-38019iACA30,31..4FC;ACA33..G..GCC200511-201212

35606GPISTON SET, DIRECT CLUTCH

main35606-21010iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35061-28010iACA30,31..4FC;ACA33..G..GCC200511-201212

main35061-33020iGSA33200708-201212

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35607-33010iALA30..6FC200903-201212

main35633-28010iACA30..4FC200511-201212

main35633-33090iGSA33200708-201212

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35667-28010iACA3#..4FC200511-200608

sub35667-28030

main35667-28030iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200608-201212

main35667-33020iGSA33200708-201212

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-28010iACA31,33..G..(EUR,GCC)200511-201212

T=1.8

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35647-28010iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200511-201212

T=3.0

main35647-33030iGSA33200708-201212

T=1.8

35653RING, REAR CLUTCH OIL SEAL, OUTER

main35653-21010iACA3#..4FC200511-200612

sub35653-33010

main35653-33010iACA38..4FC;ACA33..4FC..X;ACA33..4FC..G..(ARL,GEN)200612-201212

35675AFLANGE, FORWARD CLUTCH

main35635-21010iACA30,33,38,GSA33..ATM200511-201212

T=3.00

main35635-21020iACA30,31..4FC;ACA33..G..GCC200511-201212

T=3.15

main35635-21030iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

T=3.30

main35635-21040iACA30,33,38,GSA33..ATM200511-201212

T=3.45

main35635-21050iACA30,31..4FC;ACA33..G..GCC200511-201212

T=3.60

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99025iACA30,31..4FC;ACA33..G..GCC200511-201212

35675CFLANGE, DIRECT CLUTCH

main35675-21010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

T=3.0

main35675-21020iACA30,31..4FC;ACA33..G..GCC200511-201212

T=3.1

main35675-21030iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

T=3.2

main35675-21040iACA30,33,38,GSA33..ATM200511-201212

T=3.3

main35675-21050iACA30,33,38,GSA33..ATM200511-201212

T=3.4

main35675-21060iACA30,31..4FC;ACA33..G..GCC200511-201212

T=3.5

main35675-33060iGSA33200708-201212

T=3.6

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90520-99028iACA30,33,38,GSA33..ATM200511-201212

35701SHAFT SUB-ASSY, INPUT

main35701-28020iACA33,38,GSA33..ATM200511-201212

main35701-42020iACA30..4FC200511-201212

main35711-33060iALA30..6FC200903-201212

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23002iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

main90374-34005iACA30,31..4FC;ACA33..G..GCC200511-201212

OD=52.2

35701RBEARING, THRUST NEEDLE ROLLER

main90374-37005iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

35712ARING, INPUT SHAFT OIL SEAL

main35712-21010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

main35712-33010iALA30..6FC200903-201212

sub35712-33020

35786ARACE, THRUST BEARING, NO.1

main35786-21010iACA33..4FC..X;ACA38,GSA33..ATM;ACA33..4FC..G..(ARL,GEN)200511-201212

main35786-33010iALA30..6FC200903-201212

26 parts on this diagram · 4 diagrams in section
