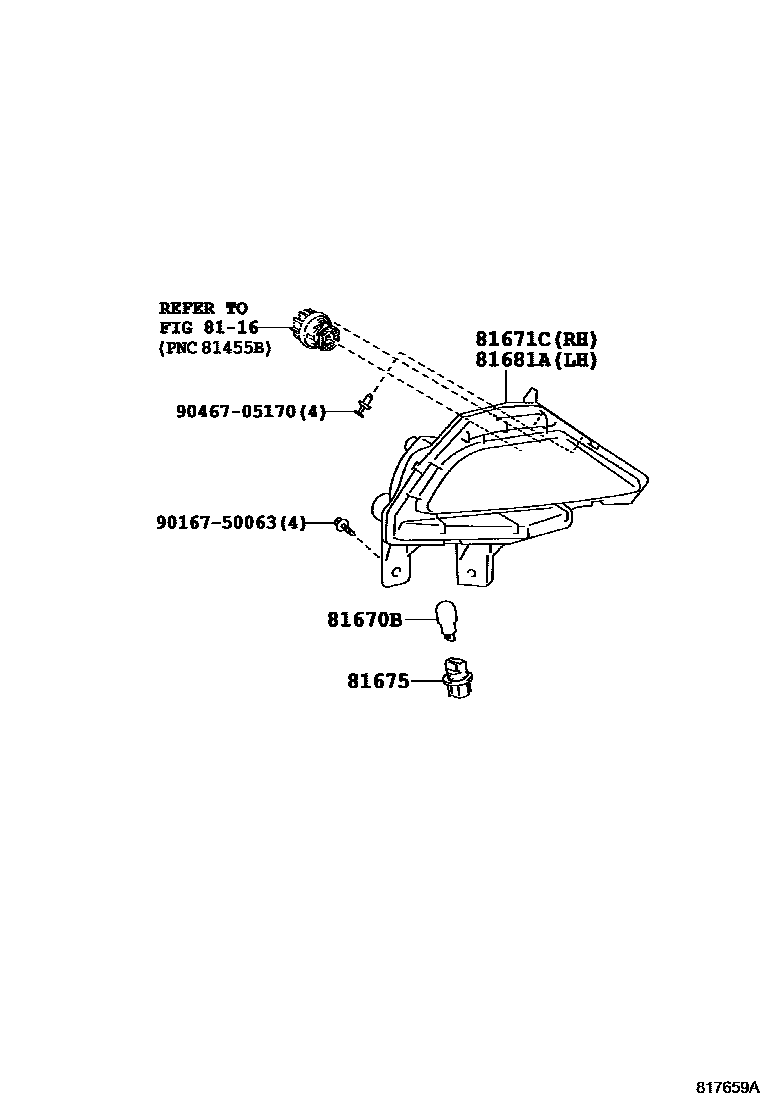

Toyota RAV4 — BACK UP LAMP
8116REAR FOG LAMP
81670BBULB(FOR BACK-UP LAMP)
12V 16W
81671CLENS & BODY, BACK-UP LAMP, RH
main81457-42060iASA4#..GCC; ASA4#..LHD..G..GEN;ZSA42..A..(G,X)..GEN; ASA42..6FC..GEN;ASA44..LHD..G..GEN; ASA44,ZSA42..LHD..(6FC,B)..GEN; ZSA42..A..GEN;ZSA44..A..(G,M); ZSA44..LHD..(6F,B)201510-201812
ARGENTINA SPEC; BRAZIL SPEC; EGYPT SPEC; PHILIPPINE SPEC; TAIWAN SPEC
81675SOCKET & WIRE, BACK-UP LAMP
81681ALENS & BODY, BACK-UP LAMP, LH
main81456-42060iASA4#..GCC; ASA4#..LHD..G..GEN;ZSA42..A..(G,X)..GEN; ASA42..6FC..GEN;ASA44..LHD..G..GEN; ASA44,ZSA42..LHD..(6FC,B)..GEN; ZSA42..A..GEN;ZSA44..A..(G,M); ZSA44..LHD..(6F,B)201510-201812
ARGENTINA SPEC; BRAZIL SPEC; EGYPT SPEC; PHILIPPINE SPEC; TAIWAN SPEC
9016750063
main90167-50063
9046705170
main90467-05170
7 parts on this diagram · 1 diagram in section
BACK UP LAMP for Toyota RAV4
This section contains 7 genuine Toyota parts for the BACK UP LAMP system of the Toyota RAV4. Key components include: REAR FOG LAMP, BULB(FOR BACK-UP LAMP), LENS & BODY, BACK-UP LAMP, RH, SOCKET & WIRE, BACK-UP LAMP, LENS & BODY, BACK-UP LAMP, LH.
