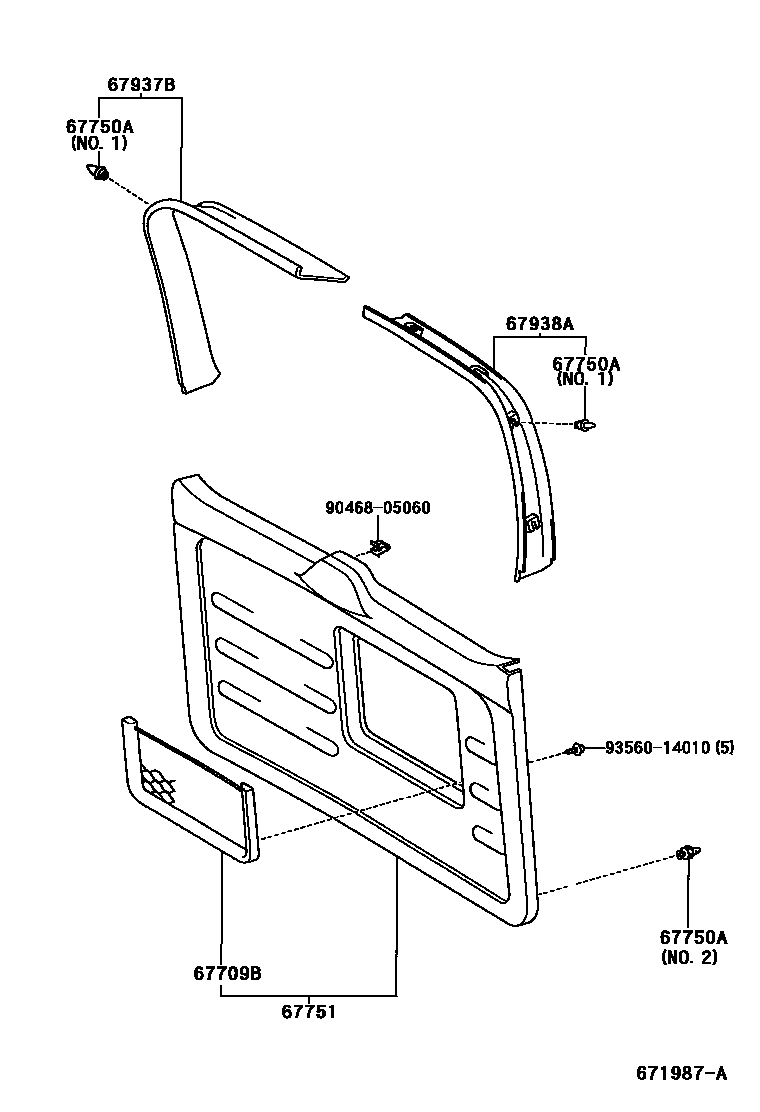

Toyota RAV4 — BACK DOOR PANEL & GLASS

0001 1 0002 1

67709BPOCKET SUB-ASSY, BACK DOOR TRIM

main67709-42010-B1iACA21..ARL200005-200202

BLUE GRAY,TRIM1#

sub67709-42011

main67709-42010-B1iACA21..ARL200005-200202

BLUE GRAY,TRIM14,15

sub67709-42011

main67709-42011-B1iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200202-200307

BLUE GRAY,TRIM14,15

main67709-42011-B1iACA21..ARL200202-200307

BLUE GRAY,TRIM1#

main67709-42011-B2iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

67750ACLIP(FOR BACK DOOR TRIM)

main90467-09206iACA2#,CLA2#,ZCA2#200112-200307

NO.2

main90467-10161iACA2#,CLA2#,ZCA2#200112-200307

NO.1

main90467-10161iACA2#,CLA2#,ZCA2#200005-200112

NO.1 OR NO.2

67751BOARD, BACK DOOR TRIM

main67751-42030-B0iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

BLUE GRAY,TRIM1#

sub67751-42030

main67751-42030-B0iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

BLUE GRAY,TRIM14,15

sub67751-42030

main67751-42030-B1iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

sub67751-42030

main67751-42030-E0iACA2#..GCC,GEN200008-200307

FAWN,TRIM40

sub67751-42030

67937BGARNISH, BACK DOOR SIDE, RH

main67937-42020-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub67937-42021

main67937-42020-B0iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

BLUE GRAY,TRIM1#

sub67937-42021

main67937-42020-B1iACA2#,CLA2#,ZCA2#200307-200312

NEW GRAY,TRIM1#

sub67937-42021

main67937-42021-B1iACA2#,CLA2#,ZCA2#200312-200511

GRAY,TRIM1#

sub67937-42021

67938AGARNISH, BACK DOOR SIDE, LH

main67938-42020-B0iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

BLUE GRAY,TRIM1#

sub67938-42021

main67938-42020-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub67938-42021

main67938-42020-B1iACA2#,CLA2#,ZCA2#200307-200312

NEW GRAY,TRIM1#

sub67938-42021

main67938-42021-B1iACA2#,CLA2#,ZCA2#200312-200511

GRAY,TRIM1#

sub67938-42021

9046805060

main90468-05060

9356014010

main93560-14010

7 parts on this diagram · 2 diagrams in section
