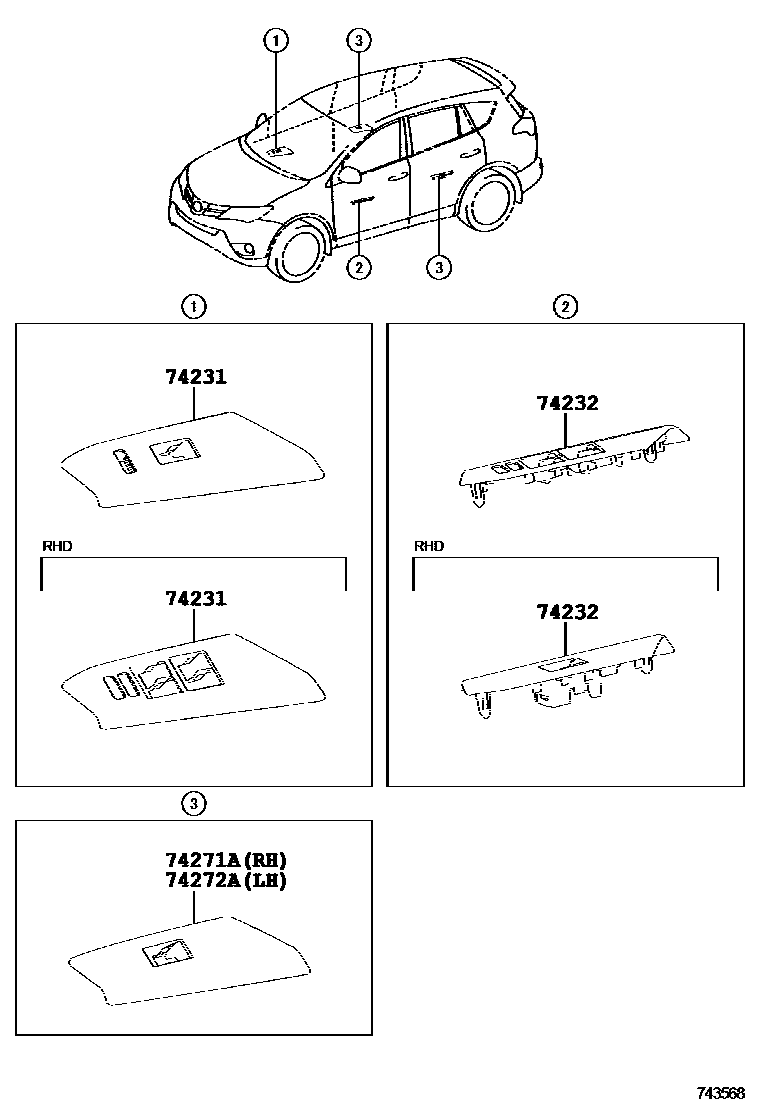

Toyota RAV4 — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-42180-C0iZSA4#..A..X..GEN201212-201510

BLACK,TRIM2#,3#,4#

main74231-42190-C0iASA44,ZSA42..G..ARL201212-201510

BLACK,TRIM1#,2#,3#,4#

main74231-42270iASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN201510-201812

main74231-42280iALA49..RHD..6FC;ALA49..RHD..6F..X201510-201810

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-42120-C0iZSA4#..A..X..GEN201212-201510

BLACK,TRIM2#,3#,4#

main74232-42130-C0iASA44,ZSA42..G..ARL201212-201510

BLACK,TRIM1#,2#,3#,4#

main74232-42180iALA49..X..GEN;ALA49,AVA4#..(6FC,A)..(G,M)..GEN201510-201810

main74232-42190iALA49..RHD..6FC;ALA49..RHD..6F..X201510-201810

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-42030-C0iASA4#,ZSA4#..G;ZSA4#..6F..GEN201212-201510

BLACK,TRIM2#,3#,4#

main74271-42070iASA4#,ZSA4#;ALA49..6F..(G,M)201510-201812

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-42030-C0iASA4#,ZSA4#..G;ZSA4#..6F..GEN201212-201510

BLACK,TRIM2#,3#,4#

main74272-42070iALA49..6F..X;ALA49,AVA4#..6FC,A201510-201810

4 parts on this diagram · 2 diagrams in section
