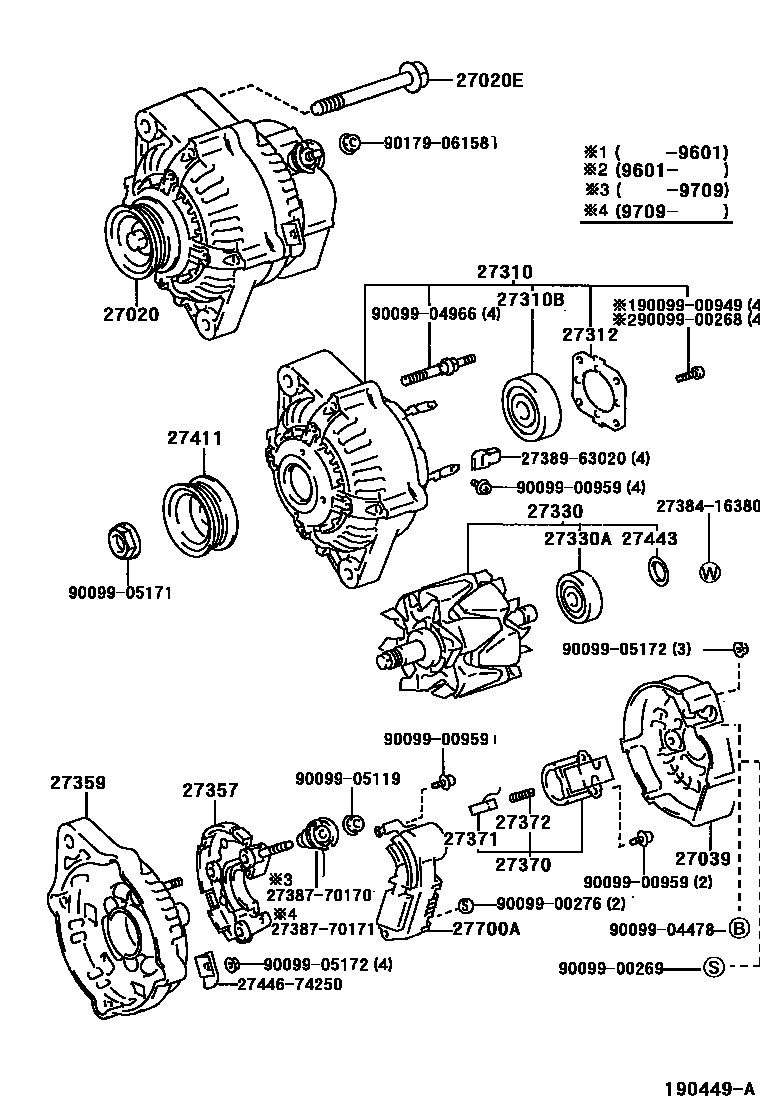

Toyota RAV4 — ALTERNATOR
27020ALTERNATOR ASSY
12V 80A
12V 70A
12V 80A
12V 70A
main27060-74750i3SFE..SXA10..ATM;3SFE..SXA11..ATM..EUR;3SFE..SXA11..ARL,GCC,GEN;3SFE..SXA10..MTM..(ARL,GCC,GEN)199709
12V 80A
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
main27039-55080i3SFE..SXA10..ATM;3SFE..SXA11..ATM..EUR;3SFE..SXA11..ARL,GCC,GEN;3SFE..SXA10..MTM..(ARL,GCC,GEN)199404
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-74490i3SFE..SXA10..ATM;3SFE..SXA11..ATM..EUR;3SFE..SXA11..ARL,GCC,GEN;3SFE..SXA10..MTM..(ARL,GCC,GEN)199709
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90099-10192i3SFE..SXA10..ATM;3SFE..SXA11..ATM..EUR;3SFE..SXA11..ARL,GCC,GEN;3SFE..SXA10..MTM..(ARL,GCC,GEN)199404
27312PLATE, RETAINER
main27312-42010i3SFE..SXA10..ATM;3SFE..SXA11..ATM..EUR;3SFE..SXA11..ARL,GCC,GEN;3SFE..SXA10..MTM..(ARL,GCC,GEN)199404
27330ROTOR ASSY, ALTERNATOR
main27330-74550i3SFE..SXA10..ATM;3SFE..SXA11..ATM..EUR;3SFE..SXA11..ARL,GCC,GEN;3SFE..SXA10..MTM..(ARL,GCC,GEN)199709
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
main27357-55080i3SFE..SXA10..ATM;3SFE..SXA11..ATM..EUR;3SFE..SXA11..ARL,GCC,GEN;3SFE..SXA10..MTM..(ARL,GCC,GEN)199404
27359FRAME, ALTERNATOR RECTIFIER END
main27359-74550i3SFE..SXA10..ATM;3SFE..SXA11..ATM..EUR;3SFE..SXA11..ARL,GCC,GEN;3SFE..SXA10..MTM..(ARL,GCC,GEN)199709
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-75060i3SFE..SXA10..ATM;3SFE..SXA11..ATM..EUR;3SFE..SXA11..ARL,GCC,GEN;3SFE..SXA10..MTM..(ARL,GCC,GEN)199404
27371BRUSH, ALTERNATOR
27372SPRING, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
main27411-42030i3SFE..SXA10..ATM;3SFE..SXA11..ATM..EUR;3SFE..SXA11..ARL,GCC,GEN;3SFE..SXA10..MTM..(ARL,GCC,GEN)199404
27443COVER, ALTERNATOR BEARING
27700AREGULATOR ASSY, GENERATOR
2738416380WASHER
main27384-16380
2738770170INSULATOR, TERMINAL
main27387-70170
2738770171INSULATOR, TERMINAL
main27387-70171
2738963020INSULATOR, TERMINAL
main27389-63020
2744674250CLIP, ALTERNATOR CORD
main27446-74250
9009900268
main90099-00268
9009900269
main90099-00269
9009900276
main90099-00276
9009900949
main90099-00949
9009900959
main90099-00959
9009904478
main90099-04478
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9017906158
main90179-06158
32 parts on this diagram · 2 diagrams in section
ALTERNATOR for Toyota RAV4
This section contains 45 genuine Toyota parts for the ALTERNATOR system of the Toyota RAV4. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, SEAL, ALTERNATOR PLATE, FRAME ASSY, DRIVE END, ALTERNATOR.
