Toyota RAV4 — AIR BAG

0001 1 0002 1 0003 1

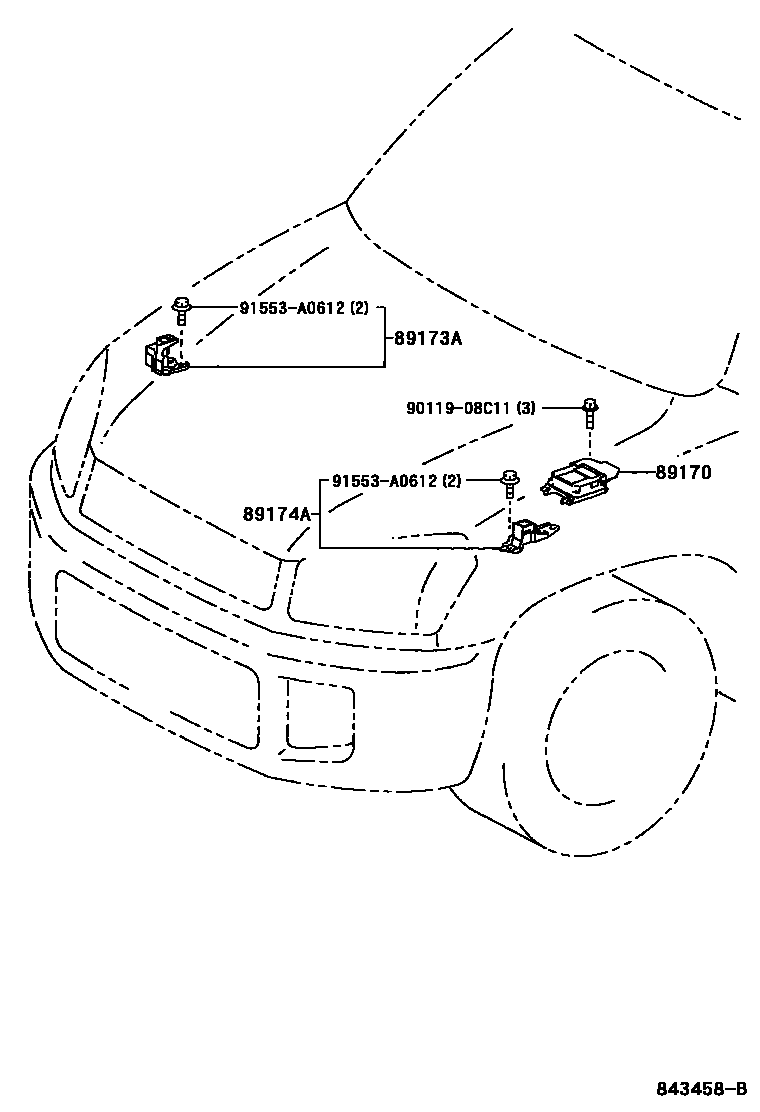

89170SENSOR ASSY, AIRBAG

main89170-42090iACA2#,CLA2#,ZCA2#200005-200307

main89170-42100iACA2#200307

PART NUMBER LABEL=89170-42100

main89170-42120iACA2#..ARL,GCC200307

PART NUMBER LABEL=89170-42120

main89170-42140iACA20,21,CLA2#,ZCA2#..EUR200307

PART NUMBER LABEL=89170-42140

main89170-42160iACA20,21,CLA2#,ZCA2#..EUR200307

PART NUMBER LABEL=89170-42160

89173ASENSOR, AIRBAG, FRONT RH

main89173-49245iACA2#,CLA2#,ZCA2#200005-200307

main89173-49245iACA2#200307-200402

W(ELECTRICAL TYPE *80),NO.1

main89173-49295iACA20,21,CLA2#,ZCA2#..EUR200307

W(MECHANICAL TYPE *80),NO.2

main89173-49395iACA2#200402

W(ELECTRICAL TYPE *80),NO.1

89174ASENSOR, AIRBAG, FRONT LH

main89173-49295iACA20,21,CLA2#,ZCA2#..EUR200307

W(MECHANICAL TYPE *80),NO.2

main89174-49095iACA2#200307-200402

W(ELECTRICAL TYPE *80),NO.1

main89174-49095iACA2#,CLA2#,ZCA2#200005-200307

main89174-49145iACA2#200402

W(ELECTRICAL TYPE *80),NO.1

9011908C11

main90119-08C11

91553A0612

main91553-A0612

5 parts on this diagram · 3 diagrams in section
