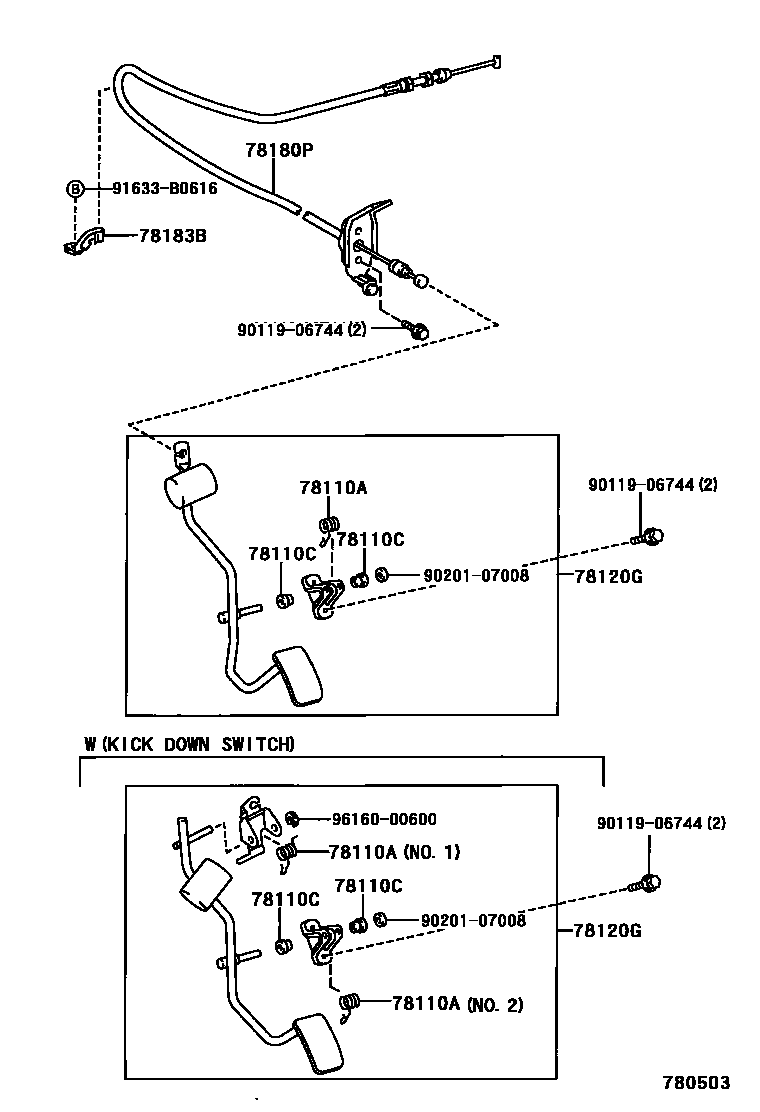

Toyota RAV4 — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26075iACA2#,ZCA2#..RHD200005-200307

main90508-30009iACA2#..LHD..ATM..EUR200005-200012

NO.1

main90959-03292iZCA2#..LHD;ACA21..LHD..GEN200307

main90959-03347iACA2#..LHD..ATM..EUR200012-200307

NO.1

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-08063×2iACA2#,ZCA2#..LHD200005-200307

78120GROD ASSY, ACCELERATOR PEDAL

main78010-42010iACA2#,CLA2#..RHD..(ARL,EUR)200307

main78010-42020iACA20,21,CLA2#..LHD..(EUR,GCC)200307

main78010-42040iACA20,21..LHD..ATM..EUR200307

W(KICK DOWN SWITCH)

main78120-42090iZCA2#..RHD;ACA21..RHD..GEN200307

main78120-42110iACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN)200005-200307

main78120-42120iACA2#..LHD..ATM..EUR200005-200307

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-42090iACA2#..RHD200005-200307

main78180-42100iACA21..LHD..GEN200307

main78180-42120iZCA2#..RHD200307

main78180-42130iZCA2#..LHD200005-200307

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-42020iACA2#..LHD200005-200307

9011906744

main90119-06744

9020107008

main90201-07008

91633B0616

main91633-B0616

9616000600

main96160-00600

9 parts on this diagram · 10 diagrams in section
