Toyota RAV4 — ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010i201212-201510

HEADLAMP-4,PROJECTER & W(*AHB); HEADLAMP-DISCHARGE & W(*AHB)

88263PRELAY, STOP LAMP CONTROL

main90987-04004i201212-201510

RUSSIA SPEC&VSC-WITH(*HAC & *DAC); RUSSIA SPEC&VSC-WITH(*HAC); UKURAINE SPEC&VSC-WITH(*HAC); VSC-WITHOUT

89189BBRACKET, YAWRATE SENSOR

main89189-42020i201212-201510

VSC-WITHOUT

89441ASENSOR, DECELERATION

main89440-42070i201212-201510

VSC-WITHOUT

89516WIRE, SKID CONTROL SENSOR

main89516-42070i201212-201506

main89516-78050i201507-201510

89516BWIRE, SKID CONTROL SENSOR

main89516-42080i201212-201506

main89516-78060i201507-201510

89542SENSOR, SPEED, FRONT RH

main89542-42050i201212-201510

89543SENSOR, SPEED, FRONT LH

main89543-42050i201212-201510

89545SENSOR, SPEED, REAR RH

main89545-42050i201212-201311

main89545-48070i201311-201510

89546SENSOR, SPEED, REAR LH

main89546-42050i201212-201311

main89546-48070i201311-201510

89630ACOMPUTER ASSY, 4WD

main89630-42080i201212-201310

main89630-42081i201311-201504

P/N LABEL=8963042081

main89630-42082i201510-201810

main89630-42110i201504-201510

P/N LABEL=8963042110

89634DBRACKET, SKID CONTROL COMPUTER NO.3

main89634-42020i201212-201510

9017906074

main90179-06074

9155180814

main91551-80814

9155380610

main91553-80610

9167180616

main91671-80616

91671A0616

main91671-A0616

9167380616

main91673-80616

9415180600

main94151-80600

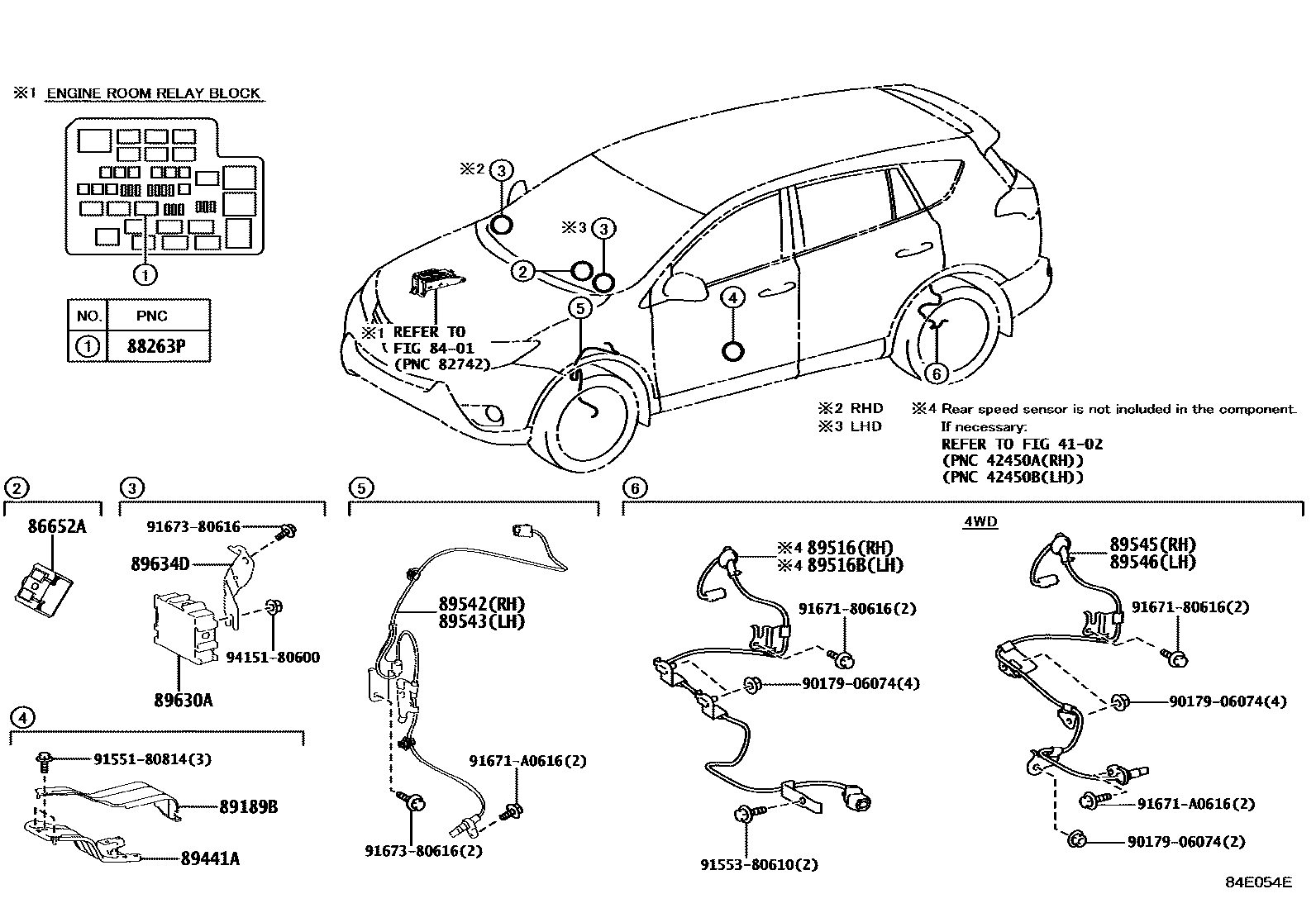

21 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota RAV4
