Toyota RAV4 — ABS & VSC

0001 1 0002 1

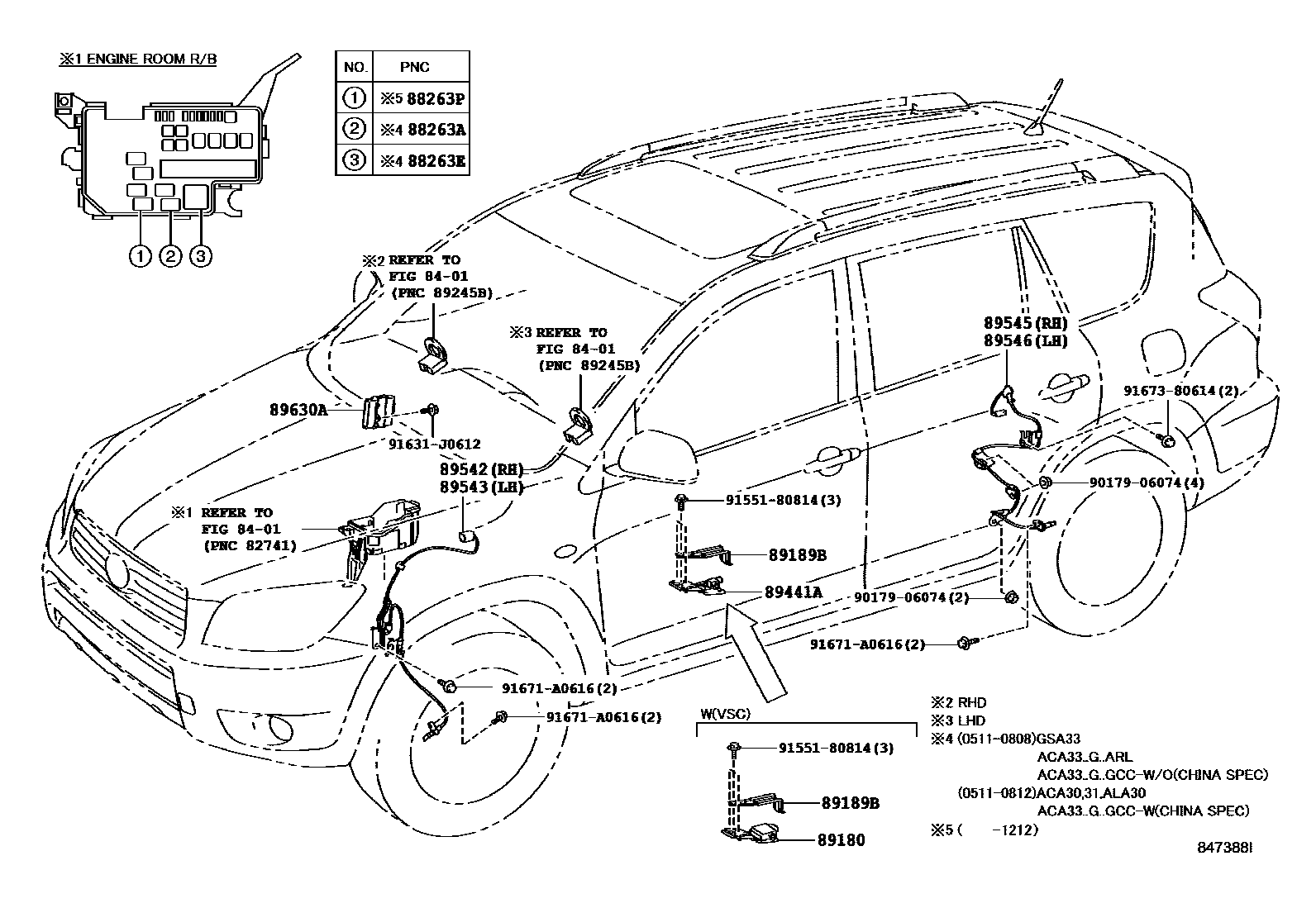

8401

88263ARELAY, SKID CONTROL

main88263-32070iGSA33;ACA33..G..ARL200511-200808

main88263-32070iACA30,31,ALA30200511-200812

WITH(VSC)

main88263-32070iACA30,31,ALA30200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88263-32070iACA30,31,ALA30200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88263-32070iACA30,31,ALA30200511-200812

WITHOUT(VSC)

88263ERELAY, SKID CONTROL NO.2

main88263-21010iGSA33;ACA33..G..ARL200511-200808

main88263-21010iACA30,31,ALA30200511-200812

WITH(VSC)

main88263-21010iACA30,31,ALA30200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main88263-21010iACA30,31,ALA30200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main88263-21010iACA30,31,ALA30200511-200812

WITHOUT(VSC)

88263PRELAY, STOP LAMP CONTROL

main90987-04004iGSA33;ACA33..G..ARL200511-200808

main90987-04004iACA30,31,ALA30200511-200812

WITH(VSC)

main90987-04004iACA30,31,ALA30200511-200812

WITH(FRONT WHEEL SPLASH SHIELD)

main90987-04004iACA30,31,ALA30200511-200812

WITHOUT(CURTAIN & SIDE AIR BAG)

main90987-04004iACA30,31,ALA30200511-200812

WITHOUT(VSC)

main90987-04004iACA33,38..G..(ARL,EUR);ACA30,ALA3#,GSA33,ZSA3#200808-201212

VSC-WITH

main90987-04004iACA33,38..G..(ARL,EUR);ACA30,ALA3#,GSA33,ZSA3#200808-201212

VSC-WITH(AUTO LIMITED SLIP DIFFERENTIAL)

89180SENSOR ASSY, YAWRATE

main89180-42020iGSA33;ACA33..G..ARL200511-200808

WITH(VSC)

main89180-42020iACA30,31,ALA30200511-200812

main89180-42030iACA33,38..G..(ARL,EUR);ACA30,ALA3#,GSA33,ZSA3#200808-201008

VSC-WITH

main89180-42030iACA33,38..G..(ARL,EUR);ACA30,ALA3#,GSA33,ZSA3#200808-201008

VSC-WITH(AUTO LIMITED SLIP DIFFERENTIAL)

main89180-42040iALA35..DCR;ALA30..X..DCR..BTYPE201008-201207

main89180-42040iALA30..X..DCRE;ALA30..X..ATYPE;ACA33,38,ALA30..G..(ARL,EUR);ACA30,ALA35,GSA33,ZSA3#..DCRE,HTWC,HTWVM201008-201212

VSC-WITH

main89180-42040iALA30..X..DCRE;ALA30..X..ATYPE;ACA33,38,ALA30..G..(ARL,EUR);ACA30,ALA35,GSA33,ZSA3#..DCRE,HTWC,HTWVM201008-201212

VSC-WITH(AUTO LIMITED SLIP DIFFERENTIAL)

89189BBRACKET, YAWRATE SENSOR

main89189-42010iACA33,38,GSA33200511-201212

89441ASENSOR, DECELERATION

main89440-42050iACA38;ACA33..X;ACA33..LHD..G200511-201212

89542SENSOR, SPEED, FRONT RH

main89542-42050iACA3#,ALA30,GSA33200511-201212

89543SENSOR, SPEED, FRONT LH

main89543-42050iACA3#,ALA30,GSA33200511-201212

89545SENSOR, SPEED, REAR RH

main89545-42040iACA30,31,33,ALA30,GSA33200511-201212

89546SENSOR, SPEED, REAR LH

main89546-42040iACA30,31,33,ALA30,GSA33200511-201212

89630ACOMPUTER ASSY, 4WD

main89630-42010iACA30,31,33,ALA30200511-200702

sub89630-42020

main89630-42020iACA30,33..5F200703-200812

main89630-42040iACA30,33,ALA30,GSA33,ZSA30200808-201212

9017906074

main90179-06074

9155180814

main91551-80814

91631J0612

main91631-J0612

91671A0616

main91671-A0616

9167380614

main91673-80614

17 parts on this diagram · 2 diagrams in section
