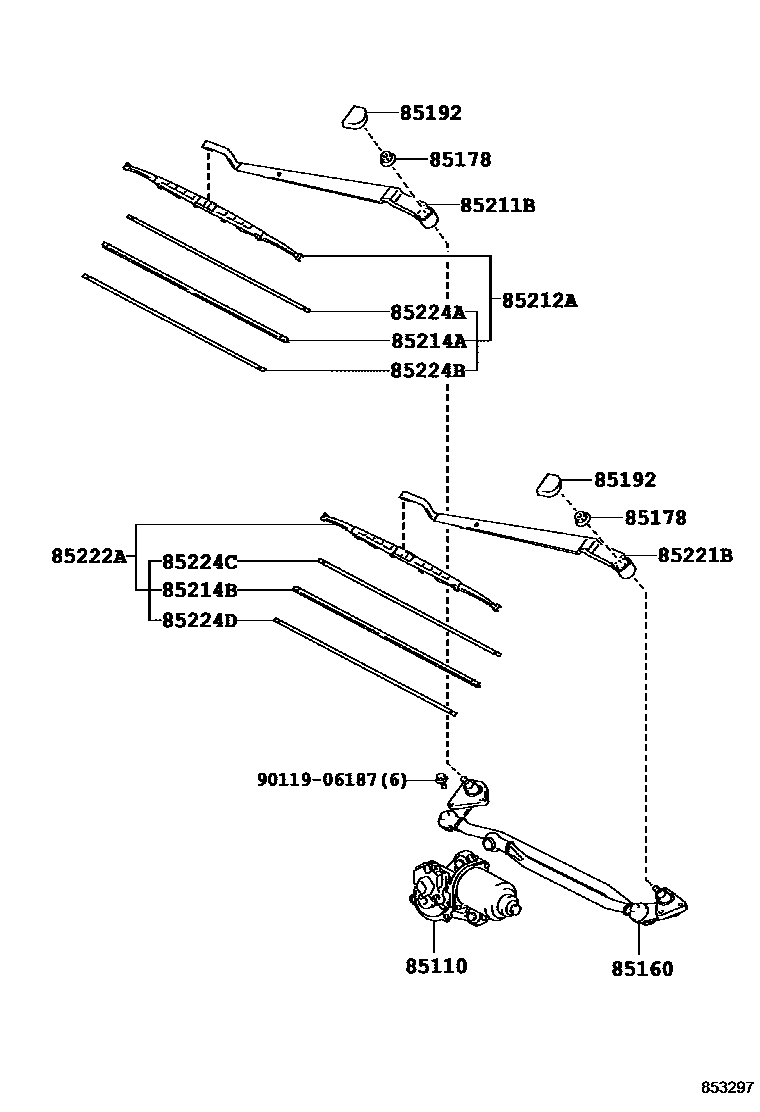

Toyota RAV4 — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42030iSXA1#199511-199608

COLD SPEC

main85110-42031iSXA1#199608

COLD SPEC

main85110-42040iSXA1#199511

85160LINK ASSY, WINDSHIELD WIPER

main85150-42020iSXA1#199511-199608

main85150-42030iSXA1#199511-199608

COLD SPEC

main85150-42050iSXA1#199608

main85150-42060iSXA1#199608

COLD SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iSXA1#199511

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iSXA1#199511

85211BARM, FRONT WIPER, RH

main85211-42030iSXA1#199511-199608

main85211-42060iSXA1#199608

85212ABLADE, FR WIPER, RH

main85212-60050iSXA1#199511-199608

sub85212-60051

main85212-60090iSXA1#199608

sub85212-33160

85214ARUBBER, WIPER, RH

main85214-20320iSXA1#199511-199608

sub85214-20330

main85214-60060iSXA1#199608

85214BRUBBER, WIPER, LH

main85214-30260iSXA1#199511-199608

main85214-42020iSXA1#199608

sub85214-24051

85221BARM, FRONT WIPER, LH

main85221-42020iSXA1#199511-199608

main85221-42050iSXA1#199608

85222ABLADE, FR WIPER, LH

main85222-42010iSXA1#199511-199608

main85222-42040iSXA1#199608

sub85222-42041

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-60050iSXA1#199511-199608

main85224-60100iSXA1#199608

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-60050iSXA1#199511-199608

main85224-60100iSXA1#199608

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-10210iSXA1#199608

sub85224-10180

main85224-30380iSXA1#199511-199608

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-10210iSXA1#199608

sub85224-10180

main85224-30380iSXA1#199511-199608

9011906187

main90119-06187

15 parts on this diagram · 1 diagram in section
