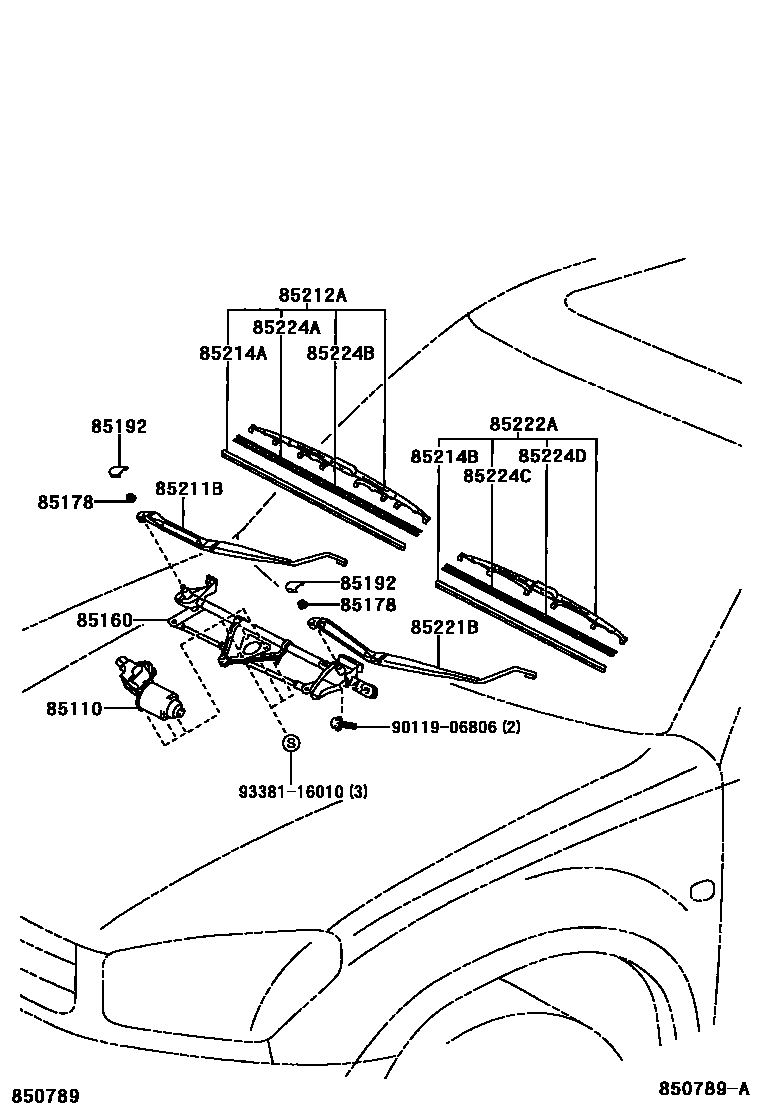

Toyota RAV4 — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
9011906806
main90119-06806
9338116010
main93381-16010
16 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota RAV4
This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RAV4. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
