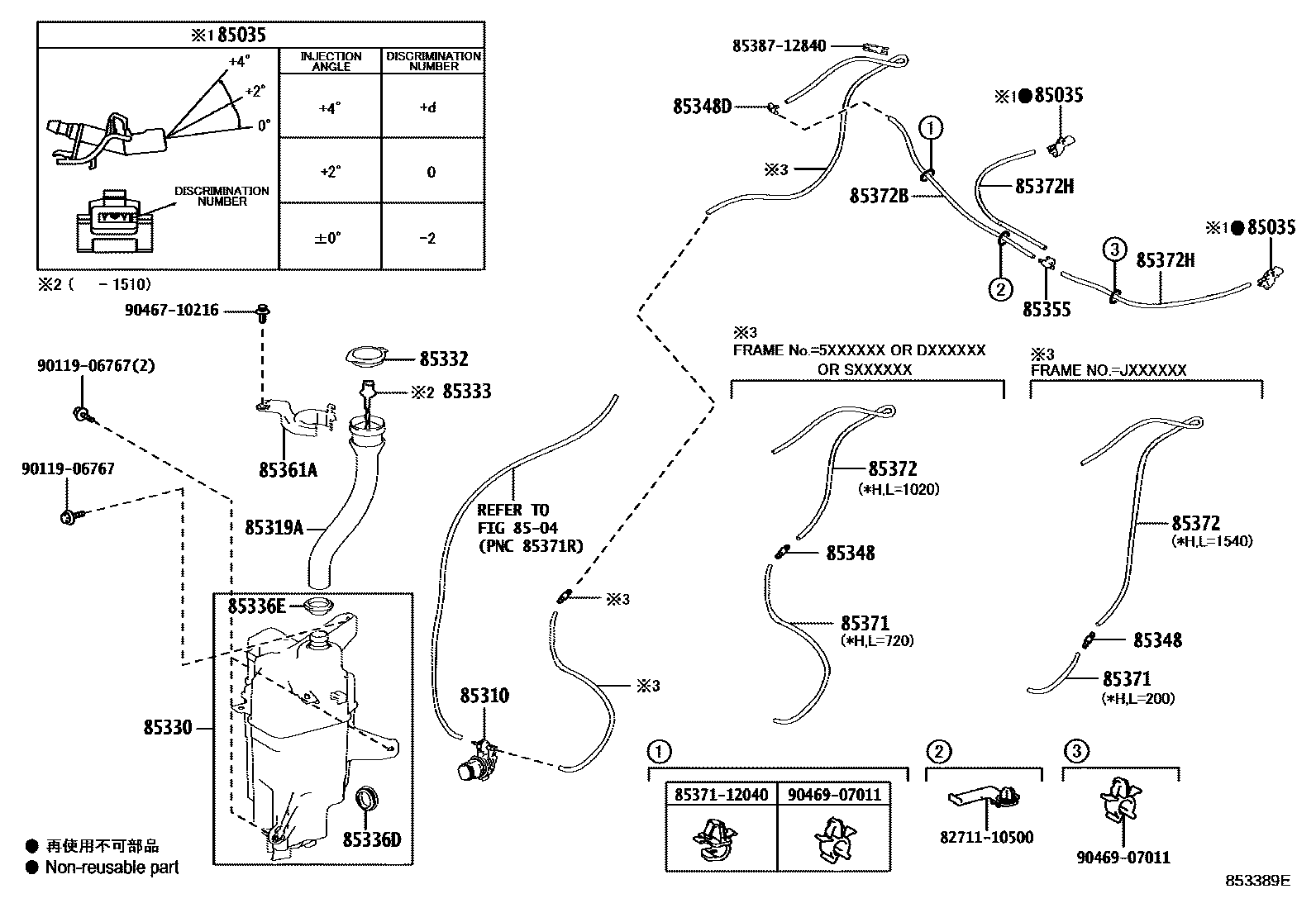

Toyota RAV4 — WINDSHIELD WASHER

0001 1 0002 1W(LEVEL SENSOR) 0003 1W(HEADLAMP CLEANER) 0004 1W(LEVEL SENSOR & HEADLAMP CLE0005 1W(LEVEL SENSOR & HEADLAMP CLE0007 1W(HEATER)

85035NOZZLE SUB-ASSY, WASHER

main85381-12400iAVA44;ZSA44..LHD..EUR;ASA44,AVA42..EUR;ZSA44..JPP..B..X;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..(M,X)..DCRL;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..201212-201810

ANGLE 0

main85381-12420iALA4#,ZSA44201212-201810

ANGLE +2

main85381-12430iALA4#,ZSA44201212-201810

ANGLE +4

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-42010iALA4#,ZSA44201212-201810

85319AHOSE, INLET

main85319-42230iALA4#,ZSA44201212-201810

85330JAR ASSY, WINDSHIELD WASHER

main85315-42360iASA44,AVA4#,WWA42,ZSA44..EUR201212-201810

main85355-42170iAVA4#,WWA42,ZSA44..LHD..EUR201510-201810

COLD AREA SPEC

main85355-42170iASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

85332CAP, WINDSHIELD WASHER JAR

main85316-42360iALA4#,ZSA44201212-201810

85333FILTER, WINDSHIELD WASHER JAR

main85312-47020

85336DPACKING, WINDSHIELD WASHER JAR

main85336-60300iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201312-201810

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-60290iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201212-201810

85355VALVE, WINDSHIELD WASHER HOSE

main85321-12040iALA49,ASA44,ZSA4#..RUP..G201610-201810

main85321-28020iAVA44;ZSA44..LHD..EUR;ASA44,AVA42..EUR;ZSA44..JPP..B..X;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..(M,X)..DCRL;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..201212-201810

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-42350iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iALA49..RHD..6FC..G..DCR201212-201510

L=1450(*H,L=720),SOUTH AFRICA SPEC,*562

main90099-33080iALA49..RHD..6FC..G..DCR201212-201510

L=1450(*H,L=720),SOUTH AFRICA SPEC&HEADLAMP-DISCHARGE,*562

main90099-33080iALA49..RHD..6FC..G..DCR201212-201510

L=1450(*H,L=720),COLD AREA SPEC,*562

main90099-33080iALA49..RHD..6FC..G..DCR201212-201510

L=1450(*H,L=720),COLD AREA SPEC&HEADLAMP-DISCHARGE,*562

main90099-33080iALA49..RHD..6FC..G..DCR201212-201510

L=1450(*H,L=720),COLD AREA SPEC&HEADLAMP-DISCHARGE & W(*AHB),*562

main90099-33080iALA49..RHD..6FC..G..DCR201212-201510

L=1450(*H,L=720),HEADLAMP-DISCHARGE,*562

main90099-33080iALA49..RHD..6FC..G..DCR201212-201510

L=1450(*H,L=720),HEADLAMP-DISCHARGE & W(*AHB),*562

main90099-33080iALA49..RHD..6F..DCR201212-201510

L=1450(*H,L=720),*562

main90099-33080iALA49..RHD..6F..DCR201212-201510

L=1450(*H,L=720),AUSTRALIA SPEC,*562

main90099-33080iALA49..RHD..6F..DCR201212-201510

L=1450(*H,L=720),AUSTRALIA SPEC&HEADLAMP-DISCHARGE,*562

main90099-33080iALA49..RHD..6F..DCR201212-201510

L=1450(*H,L=720),NEW ZEALAND SPEC,*562

main90099-33080iALA49..RHD..6F..DCR201212-201510

L=1450(*H,L=720),NEW ZEALAND SPEC&HEADLAMP-DISCHARGE,*562

main90099-33080iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

L=1450(*H,L=200),*561,*562

main90099-33080iAVA42..EUR;ASA44..X..EUR;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA44..JPP..B..(G,X);ALA49,AVA44..JPP..(DCRL,HTWC);ALA49,ZSA42..JPP..X..(DCRE,EFI);ASA201510-201810

L=1450(*H,L=200),COLD AREA SPEC,*561,*562

main90099-33080iWWA42;ZSA44..RHD..X;ASA44..JPP..X..RUS;ALA49,ASA44,ZSA4#..RUP;ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201510

L=1450(*H,L=720),*561,*562

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iWWA42;ASA44..X..RUS;ASA44..RUP..M;ZSA44..RHD..X;ALA49,ZSA4#..RUP..(M,X);ZSA44..JPP..6F..(G,X)..RUS;ALA49,AVA42,ZSA42..JPP..(6F,A)..(G,M)..RUS201212-201810

L=1450(*H,L=1020),*562

main90099-33803iAVA44;ZSA44..LHD..EUR;ASA44,AVA42..EUR;ZSA44..JPP..B..X;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..(M,X)..DCRL;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..201510-201810

L=1540,*561

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAVA44;ZSA44..LHD..EUR;ASA44,AVA42..EUR;ZSA44..JPP..B..X;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ALA49..JPP..(M,X)..DCRL;ASA44,ZSA42..JPP..(6FC,B)..M;ALA49,ZSA42..JPP..201212-201810

L=1450(*H,L=680)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iALA4#,ZSA44201212-201810

L=1450(*H,L=440)

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10500

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

8538712840CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12840

9011906767

main90119-06767

9046710216

main90467-10216

9046907011

main90469-07011

23 parts on this diagram · 6 diagrams in section
