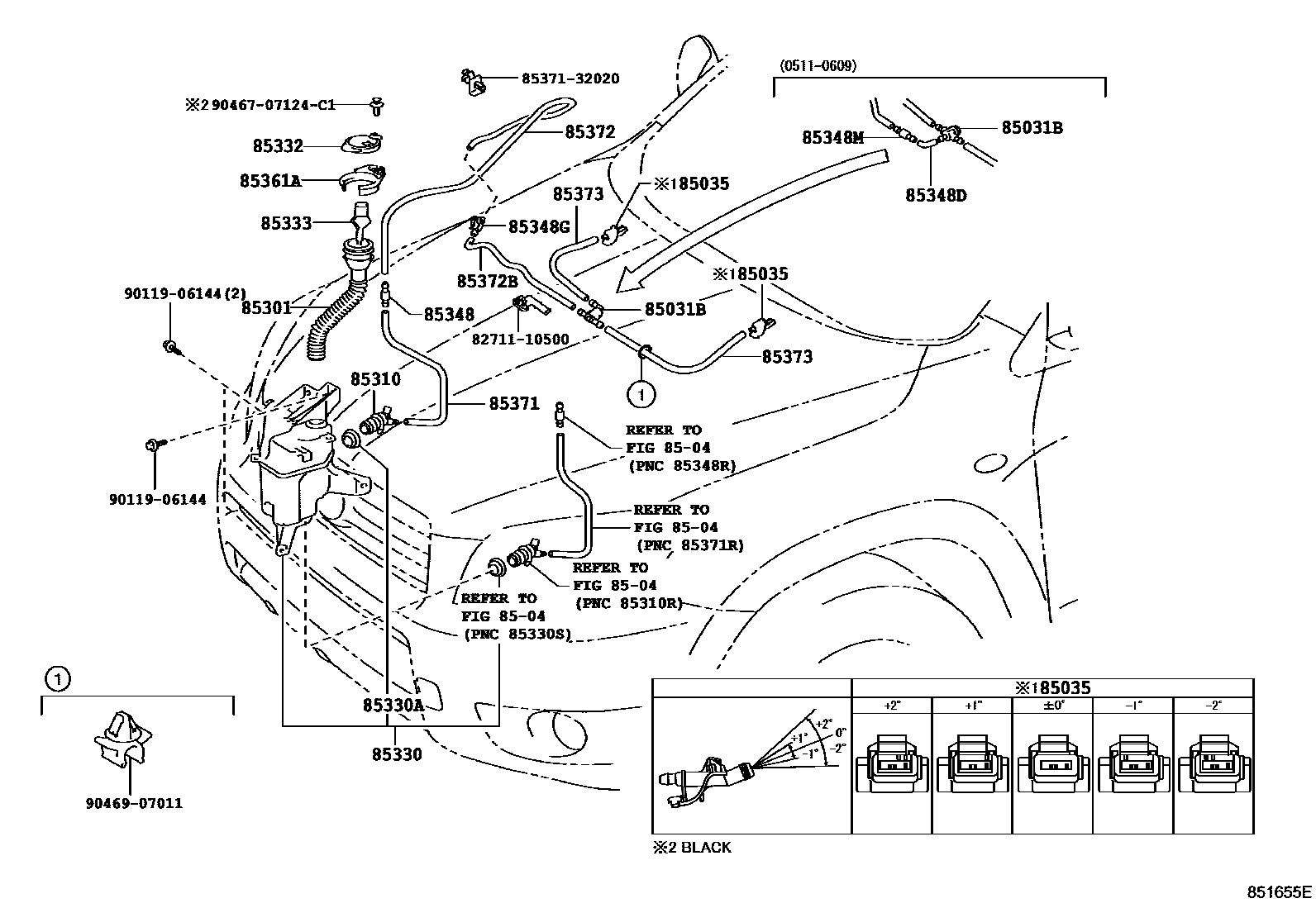

Toyota RAV4 — WINDSHIELD WASHER

0001 1W/O(HEADLAMP CLEANER) 0002 1W(HEADLAMP CLEANER)

85031BVALVE SUB-ASSY, WASHER

main85321-28020iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

main85321-30080iACA3#,ALA30200511-200608

85035NOZZLE SUB-ASSY, WASHER

main85381-30170×2iACA33..G..GCC;ACA30,31,ALA30200511-200812

ANGLE 0

main85381-30180×2iACA33..G..GCC;ACA30,31,ALA30200511-200812

ANGLE +1

main85381-30190×2iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

ANGLE -1

main85381-30200×2iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

ANGLE +2

main85381-30210×2iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

ANGLE -2

8504

85301INLET SUB-ASSY, WASHER

main85319-42230iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-71020iACA33,38,GSA33..ARL,GCC,GEN200808-201212

main85330-74010iACA30,ALA30..LHD200511-200812

COLD AREA SPEC&HEADLAMP CLEANER-WITH

85330JAR ASSY, WINDSHIELD WASHER

main85315-42230iACA30,ALA30..LHD200511-200812

COLD AREA SPEC,4.8L

main85315-42270iACA30,ALA3#,ZSA3#200812-201212

2.5L

main85315-42280iACA33,38,GSA33200808-201212

4.8L

main85355-42051iACA31200701-200704

main85355-42052iACA30,ALA30..LHD200705-200812

COLD AREA SPEC&HEADLAMP CLEANER-WITH

main85355-42050iACA30,ALA30..LHD200511-200604

COLD AREA SPEC&HEADLAMP CLEANER-WITH

main85355-42060iACA33..EUR200812-201212

COLD AREA SPEC&HEADLAMP CLEANER-WITH

main85355-42070iALA3#,ZSA3#..LHD..BTYPE201002-201212

COLD AREA SPEC&HEADLAMP CLEANER-WITH

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

85332CAP, WINDSHIELD WASHER JAR

main85316-48050iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020iACA30,ALA30200511-200812

main85312-48010iACA30,ALA30..LHD200511-200812

COLD AREA SPEC&HEADLAMP CLEANER-WITH

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iACA3#,ALA30200511-200609

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-20800iACA30,33,38,ALA3#,GSA33,ZSA3#200808-201212

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iACA3#,ALA30200511-200609

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-42230iACA3#,ALA30200511-200704

main85337-42232iACA3#,ALA30,GSA33200705-200812

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iACA30,ALA30..LHD200604-200812

L=1450(*H,L=690)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

L=1450(*H,L=810)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iACA3#,ALA30200511-200609

L=1450(*H,L=710)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iACA33..X..GCC;ACA33,38,GSA33..ARL,GEN200511-200808

L=1450(*H,L=500)

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10500

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

9011906144

main90119-06144

9046707124C1

main90467-07124C1

9046907011

main90469-07011

23 parts on this diagram · 2 diagrams in section
