Toyota RAV4 — VENTURI

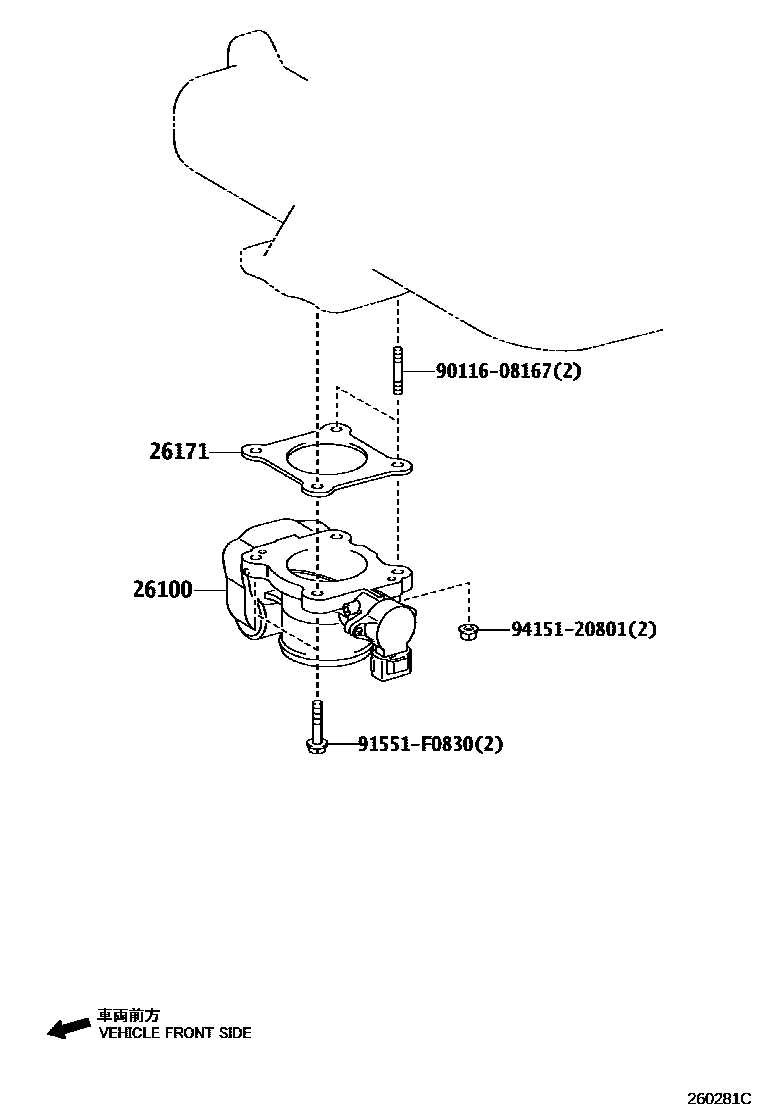

Parts diagram

26100VENTURI ASSY

main26100-0R020i200812-201212

main26100-26010i200511-200711

main26100-26030i200711-200812

26171GASKET, VENTURI

main26171-0R010i200812-201212

main26171-26010i200511-200812

9011608167

main90116-08167

91551F0830

main91551-F0830

9415120801

main94151-20801

5 parts on this diagram · 3 diagrams in section
