Toyota RAV4 — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

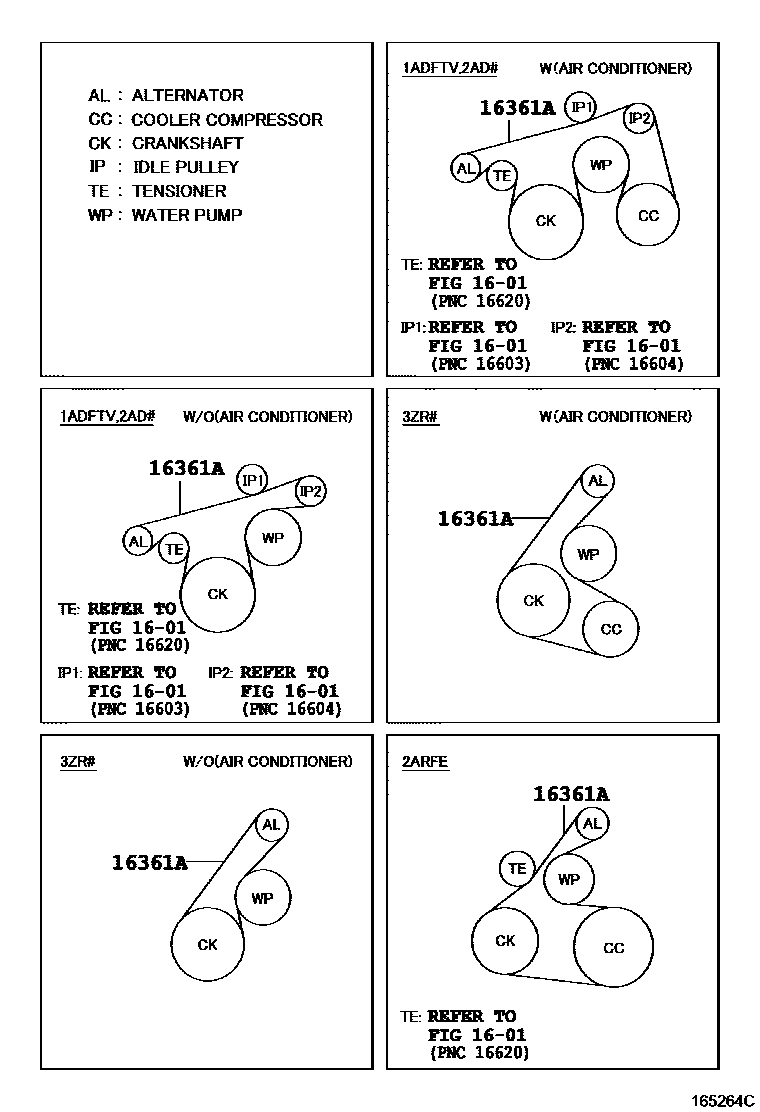

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02609i201504-201510

main90916-02664i201212-201504

main90916-02667i201510-201810

BANDO

main90916-02668i201510-201810

MITSUBOSHI

main90916-02720i201212-201510

main90916-02721i201510-201810

BANDO

main90916-WX006supersedes 90916-WX005i201510-201805

BASIC PACKAGE

main99366-K0910i201212-201504

BASIC PACKAGE

main99367-L1370i201212-201510

BASIC PACKAGE

2 parts on this diagram · 2 diagrams in section

V-BELT for Toyota RAV4

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota RAV4. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
